Product Description:

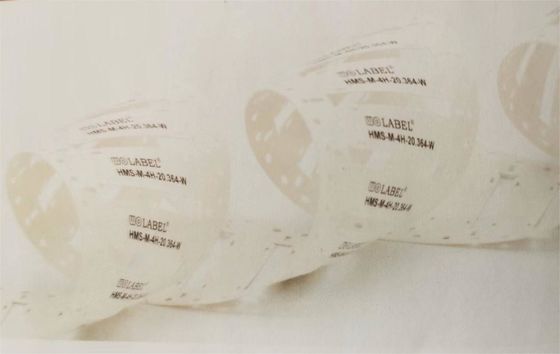

Thermal Transfer Identification Tags
According to the structure of label card, the identification tag is made of environment-friendly polyolefin material by means of bombardment and cross-link of high energy electron bunch.
Physic Performance:
Thermal Transfer Identification Tags
| Properties |
AMS |
HMS |
HNF |
RSFR |
Test Method |
| Tensile strength (MPa) |
≥10.3 |
≥13.8 |
≥10.3 |
≥10.3 |
ASTM D2671 |
| Tensile strength after aging (MPa) |
≥6.9 |
≥11.1 |
≥6.9 |
≥6.9 |
ASTM D2671 |
| Ultimate elongation after aging(%) |
≥200 |
≥200 |
≥200 |
≥200 |
ASTM D2671 |
| Ultimate elongation(%) |
≥100 |
≥100 |
≥100 |
≥100 |
ASTM D2671 |
| Voltage withstand(V) |
2500 V,60s,Pass |
2500 V,60s,Pass |
2500 V,60s,Pass |
2500 V,60s,Pass |
UL 224 |
| Dielectric strength (MV/m) |
≥19.7 |
≥19.7 |
≥19.7 |
≥19.7 |
ASTM D2671 |
| Volume resistivity (Ω·cm) |
≥1014 |
≥1014 |
≥1014 |
≥1014 |
ASTM D2671 |
| Water absorption(%) |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
ASTM D2671 |
| Corrosion |
Pass |
Pass |
Pass |
Pass |
UL 224 |
| Heat shock |
No cracks,flowing or dripping |
No cracks,flowing or dripping |
No cracks,flowing or dripping |
No cracks,flowing or dripping |
UL 224 |
| Low temperature flexibility |
No cracks |
No cracks |
No cracks |
No cracks |
UL 224 |
| Flammability |
VW-1 |
VW-1 |
DIN5510-2 S3 |
60s self-extingish |
UL 224 |
| Smoke density Ao |
NG |
NG |
0.17 |
NG |
BS6853 |
| Index of toxic fume R |
NG |
NG |
0.56 |
NG |
BS6853 |
Applications:
Thermal Transfer Identification Tags
They are mainly applied in the domains such as high-trials, subways, MU train,nuclear power station, airplane and space shuttles where the wide-diameter cable and bundle labels with high reliability are required to applied, especially in severe environment.
Markers can be easily removed from the carrier, and applied to cables and wire bundles using cable dies. Thermal transfer printer and WO-80500BK ribbon are recommended for meeting printing performance requirements of SAE AS 81531 and MIL-STD-202F.
Specification and Size:
| Order Code |
Pack size (pcs/coil) |
Marker height(mm) |
Marker length (mm) |
| RSFR-4H-10.4-45-2K-W-B-P0-* |
2000 |
10.4 |
45 |
| RSFR-4H-10.4-53-2K-W-B-P0-* |
2000 |
10.4 |
53 |
| RSFR-4H-10.4-64-2K-W-B-P0-* |
2000 |
10.4 |
64 |
| RSFR-6H-10.4-76-2K-W-B-P0-* |
2000 |
10.4 |
76 |
| RSFR-6H-10.4-90-2K-W-B-P0-* |
2000 |
10.4 |
90 |
| RSFR-4H-12.0-102-2K-W-B-P0 |
2000 |
12.0 |
102 |
| RSFR-4H-15.0-45-1.5K-W-B-P0 |
1500 |
15.0 |
45 |
| RSFR-4H-15.0-53-1.5K-W-B-P0 |
1500 |
15.0 |
53 |
| RSFR-4H-15.0-64-1.5K-W-B-P0 |
1500 |
15.0 |
64 |
| RSFR-6H-15.0-76-1.5K-W-B-P0 |
1500 |
15.0 |
76 |
| RSFR-6H-15.0-90-1.5K-W-B-P0 |
1500 |
15.0 |
90 |
| RSFR-4H-20.3-45-1K-W-B-P0-* |
1000 |
20.3 |
45 |
| RSFR-4H-20.3-53-1K-W-B-P0-* |
1000 |
20.3 |
53 |
| RSFR-4H-20.3-64-1K-W-B-P0-* |
1000 |
20.3 |
64 |
| RSFR-6H-20.3-76-1K-W-B-P0-* |
1000 |
20.3 |
76 |
| RSFR-6H-20.3-90-1K-W-B-*-P0 |
1000 |
20.3 |
90 |
| RSFR-4H-25.4-45-1K-W-B-*-P0 |
1000 |
25.4 |
45 |
| RSFR-4H-25.4-53-1K-W-B-*-P0 |
1000 |
25.4 |
53 |
| RSFR-4H-25.4-64-1K-W-B-*-P0 |
1000 |
25.4 |
64 |
| RSFR-6H-25.4-76-1K-W-B-*-P0 |
1000 |
25.4 |
76 |
| RSFR-6H-25.4-90-1K-W-B-*-P0 |
1000 |
25.4 |
90 |
Packaging and delivery
Packing size:46*46*45cm
Delivery: Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details, message supplier
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
