13MPa Heat Shrink Cable End Caps Black Insulated Protection

Large Image : 13MPa Heat Shrink Cable End Caps Black Insulated Protection

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	LONG
Certification:	ISO9001
Model Number:	LC-FEP-FA

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD 0.1
Packaging Details:	Carton
Delivery Time:	1-7days
Payment Terms:	T/T
Supply Ability:	10000 pcs / day

Contact Now

13MPa Heat Shrink Cable End Caps Black Insulated Protection

Description

Material:	Polyolefin	Product Name:	Polyolefin Heat Shrinkage End Caps
Tensile Strength:	≥13MPa	Operating Temperature:	-55℃ ~ 125℃
Thermal Shrinkage Ratio:	2.5:1	Environmental Protection Standard:	RoHS
Standard Color:	Black	Size:	10mm~160mm
Highlight:	heat shrink wire end caps black insulated protection , 13MPa heat shrink wire end caps , heat shrink wire caps black insulated protection

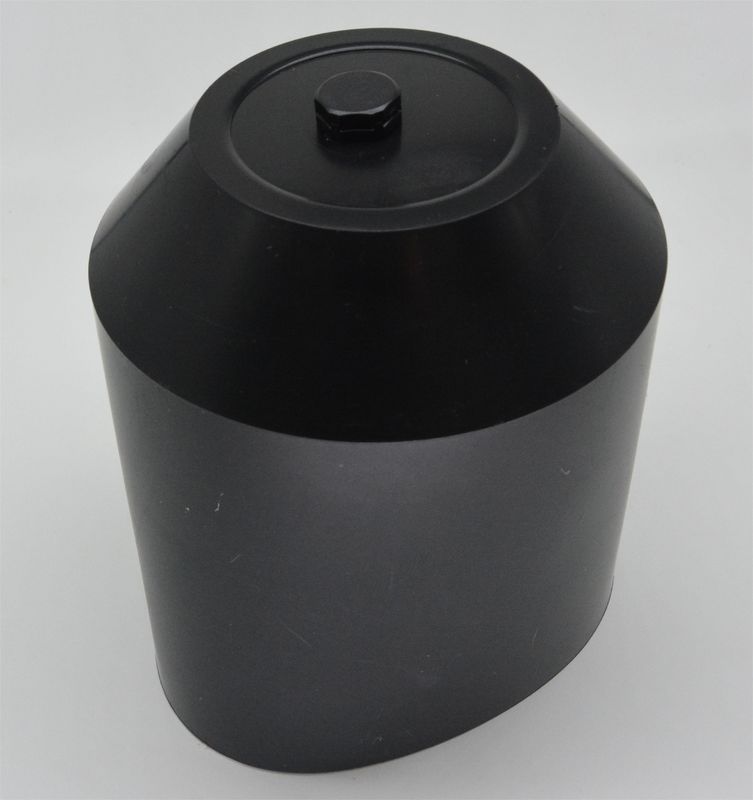

Black Insulated heat-shrinkable cable end caps

Product Description

Heat-shrink end caps is suitable for wire and cable end waterproof, insulation and protection treatment. The mouth is coated with high performance hot melt adhesive, the cap can be contracted when heating, and the glue is melted, closely bonded to the surface of the cable, playing an excellent waterproof, insulation and protective effect.

Insulated heat-shrinkable cable end caps are protective devices designed to seal and insulate cable ends, providing reliable protection against moisture, dirt, and other environmental elements.

Features

Heat Shrink Cable End Caps

· Insulation waterproof, sealing protection

· Operating ambient temperature : -55℃ ~ 125℃

· The inner is coated with hot melt glue

· Shrink temperature: start at 90℃, and fully recovered at 130℃

· Same quality as 3M

Applications

Used for sealing the electric power cable ends and the telecom cable ends during installation or storage,

Protect the cable ends from oxidation, ozone, ultraviolet light and other substances.

It can also be used for the end processing of the street lamp joints

Flame-retardant end cover can be provided according to customer requirements

Valves are provided if required

Dimensions

No	Ordinary specification: diameter*high(mm)	Ordinary specification: diameter*high(mm)	Ordinary specification: diameter*high(mm)	Applicable wire outer diameter Φ
1	10×30	10×40	10×50	7—9
2	13×30	13×40	13×80	7—12
3	15×40	15×50	15×100	11—13
4	18×40	18×50	18×100	13—15
5	20×40	20×60	20×100	14—18
6	23×40	23×50	23×60	15—20
7	25×40	25×60	25×65	18—22
8	30×50	30×70	30×100	22—27
9	35×50	35×70	35×100	27—30
10	40×60	40×70	40×120	30—35
11	45×60	45×70	45×120	35—40
12	50×70	50×80	50×120	40—45
13	55×70	55×80	55×120	45—50
14	60×80	60×90		50—55
15	65×80	65×90	65×120	55—60
16	70×90	70×120		60—65
17	75×90	75×120		65—70
18	80×100	80×120		70—75
19	85×100	85×120		75—80
20	90×120	90×150	140×180	80—90
21	95×120	95×150		90—95
22	100×130	100×160	150×180	90—95
23	110×130	110×160	160×180	95—110
24	120×130	120×160		110—120
25		130×160	130×180	120—130
26		140×160	140×180	130—140
27		150×160		140—150
28		160×160		communication cable
29	Inflatable cap
30			(Patent spring-type) exhaust cap	power cable
31			(Patent bypass valve) exhaust cap	high voltage cable

Packaging and delivery

Packaging Details According to the cap size

Port Any ports of China

Customization

Customized logo Customized packaging Graphic customization

MOQ: 5 MOQ: 5 MOQ: 5

For more customization details, message supplier

FAQ

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
