Heat Resistance Shrink Wrap End Caps Insulation Waterproof Electrical Cable End Caps

Large Image : Heat Resistance Shrink Wrap End Caps Insulation Waterproof Electrical Cable End Caps

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	LONG
Certification:	ISO9001
Model Number:	LC-FEP
Document:	End caps price.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD 0.1
Packaging Details:	Carton
Delivery Time:	1-7days
Payment Terms:	T/T
Supply Ability:	10000 pcs / day

Contact Now

Heat Resistance Shrink Wrap End Caps Insulation Waterproof Electrical Cable End Caps

Description

Material:	Polyolefin	Product Name:	Polyolefin Heat Shrink End Caps
Tensile Strength:	≥13MPa	Operating Temperature:	-55℃ ~ 125℃
Thermal Shrinkage Ratio:	2.5:1	Environmental Protection Standard:	RoHS
Standard Color:	Black	Size:	10mm~160mm
Highlight:	shrink wrap caps Insulation waterproof , Heat Resistance shrink wrap end caps , shrink wrap end caps Insulation waterproof

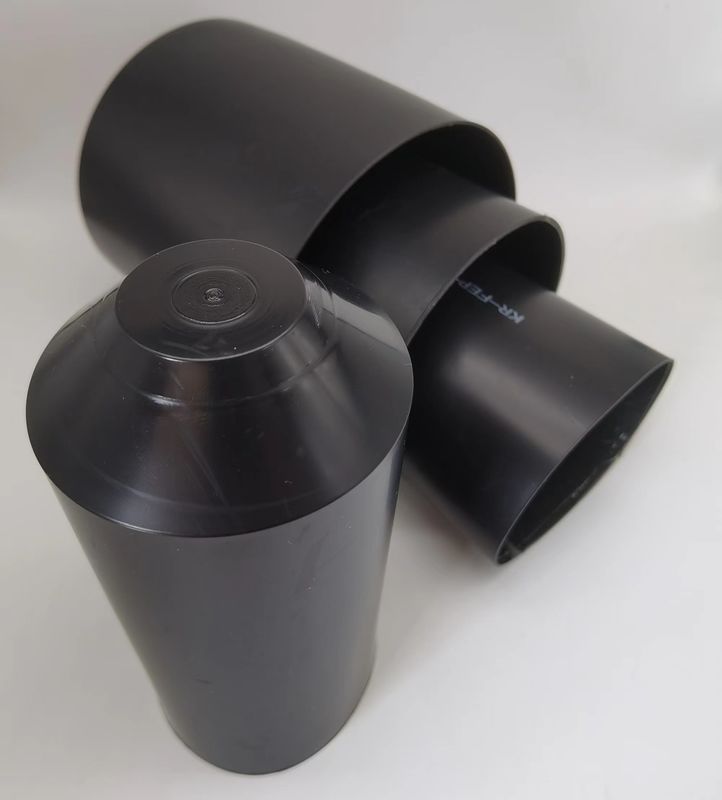

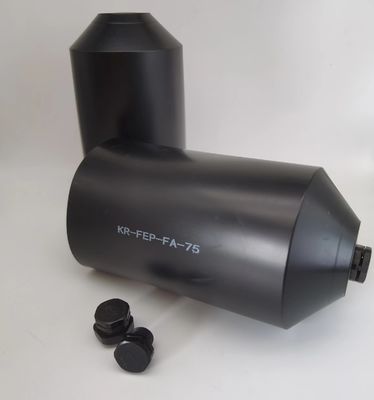

Heat shrink cable end caps Black color Insulation and Protection Electrical Cable End Caps

Product Description

Insulated heat-shrinkable cable end caps provide reliable sealing, insulation, and environmental protection for cable ends. Their easy installation, versatility, and durability make them an essential component in ensuring the integrity and longevity of cable connections in various industries.

Good quality same as 3M
Features

Heat Shrink Electrical cable end caps

· Insulation waterproof

· Durable and resistant to wear, heat, and aging

· Sealing protection

· The inner is coated with hot melt glue

· Shrink temperature: start at 90℃, and fully recovered at 130℃

· Standard color: black, red

Heat Resistance Shrink Wrap End Caps Insulation Waterproof Electrical Cable End Caps 0

Applications

These heat shrink end caps are available in various sizes to accommodate different cable diameters and configurations. They can be used with a wide range of cables, including power cables, communication cables, and low-voltage cables. This versatility makes them suitable for diverse applications across industries.

Dimensions

No	Ordinary specification: diameter*high(mm)	Ordinary specification: diameter*high(mm)	Ordinary specification: diameter*high(mm)	Applicable wire outer diameter Φ
1	10×30	10×40	10×50	7—9
2	13×30	13×40	13×80	7—12
3	15×40	15×50	15×100	11—13
4	18×40	18×50	18×100	13—15
5	20×40	20×60	20×100	14—18
6	23×40	23×50	23×60	15—20
7	25×40	25×60	25×65	18—22
8	30×50	30×70	30×100	22—27
9	35×50	35×70	35×100	27—30
10	40×60	40×70	40×120	30—35
11	45×60	45×70	45×120	35—40
12	50×70	50×80	50×120	40—45
13	55×70	55×80	55×120	45—50
14	60×80	60×90		50—55
15	65×80	65×90	65×120	55—60
16	70×90	70×120		60—65
17	75×90	75×120		65—70
18	80×100	80×120		70—75
19	85×100	85×120		75—80
20	90×120	90×150	140×180	80—90
21	95×120	95×150		90—95
22	100×130	100×160	150×180	90—95
23	110×130	110×160	160×180	95—110
24	120×130	120×160		110—120
25		130×160	130×180	120—130
26		140×160	140×180	130—140
27		150×160		140—150
28		160×160		communication cable
29	Inflatable cap
30			(Patent spring-type) exhaust cap	power cable
31			(Patent bypass valve) exhaust cap	high voltage cable

Packaging and delivery

Packaging Details According to the cap size
46cm*46cm*45cm

Port Any ports of China

Produce small-sized caps as per customer requirements

Heat Resistance Shrink Wrap End Caps Insulation Waterproof Electrical Cable End Caps 1

Customization

Customized logo Customized packaging Graphic customization

MOQ: 5 MOQ: 5 MOQ: 5

For more customization details, message supplier

FAQ

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
