Product Description:

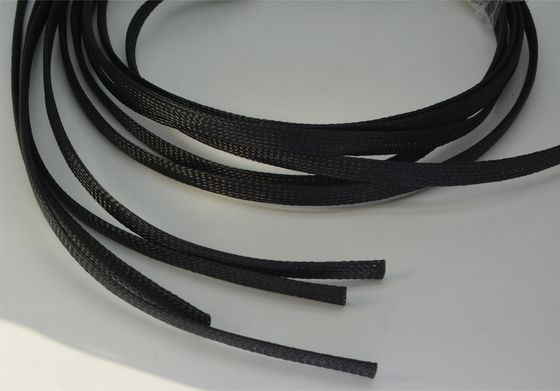

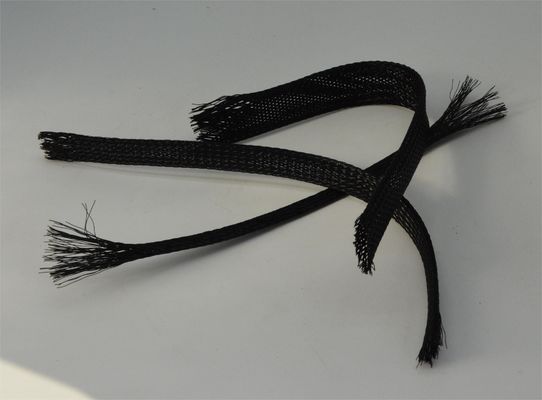

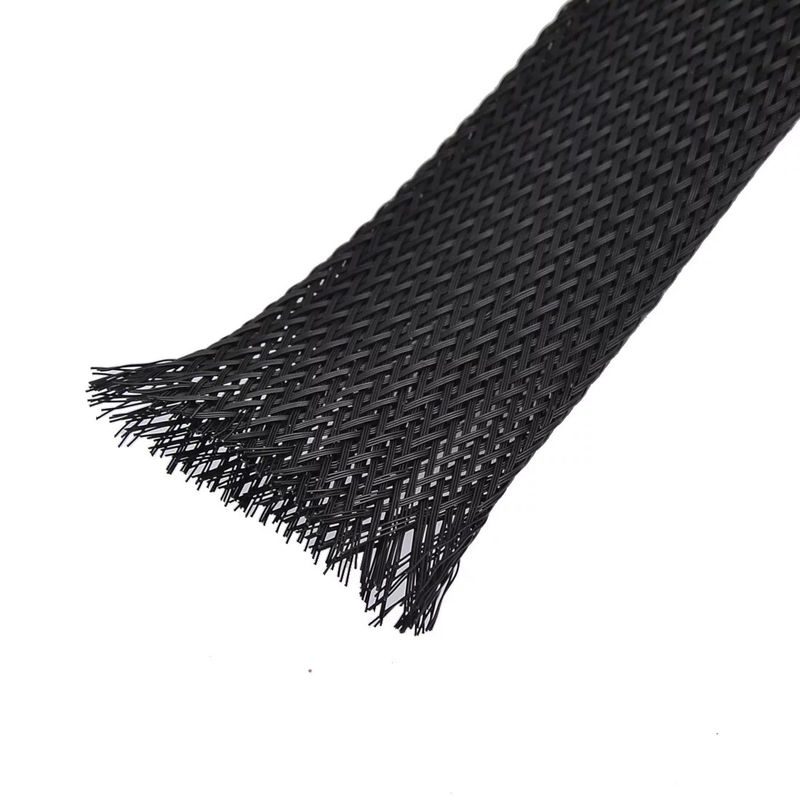

PET Expandable Braided Sleeving is a high-performance, expandable mesh sleeving, designed to provide excellent scalability and superior cable and wire protection. It is made of Polyethylene Terephthalate (PET) material and offers superior flexibility with operating range from -50°C to 150°C. The PET sleeving is UL approved and RoHS compliant, and is self-extinguish, making it suitable for use in an extensive range of applications.
The PET Expandable Braided Sleeving is designed to protect cables from abrasion, cuts, and wear and tear, and is flame retardant. It also offers superior scalability, allowing users to easily adjust the size of the sleeves to fit their specific needs. This makes it the perfect choice for a variety of applications. Its appearance is smooth and bright, diverse colors, complete specifications
Features:
- Product Name: PET Expandable Braided Sleeving
- Rohs Compliant: Yes
- Materal: PET
- Logo: Customized
- Melt Point: 240±10°C
- Advantage: Good scalability, elasticity and wear resistance
- Braided expandable wire sleeving
- Operating Temperature: -50℃ ~ 150℃
- Expandable tubing
Technical Parameters:
| Property |
Value |
| Standard Color |
Black (Other colors upon request) |
| Flexibility |
High |
| Logo |
Customized |
| Materal |
PET |
| Advantage |
Wear Resistant |
| Rohs Compliant |
Yes |
| Melt Point |
240±10°C |
| Flame Retardant |
Yes |
| Operating Temperature |
-50°C To +150°C |
| Samples |
Available |
| Product Type |
Expandable Mesh Sleeving, Expandable Braided Cable Sleeving |
Applications:
KORE KR-WPET-01 PET Expandable Braided Sleeving
KORE KR-WPET-01 PET Expandable Braided Sleeving is a great choice for applications which require flame retardant, temperature resistant and environmental protection. Made of PET material, this expandable braided sleeving is RoHS compliant, and is able to work stably in the temperature range of -50°C to +150°C. It is widely used in many industries, such as automotive, electronics, marine, computer, aircraft and so on.
KORE KR-WPET-01 PET Expandable Braided Sleeving has excellent mechanical and abrasion protection, which makes it ideal for protecting wires, cables and hoses from heat, friction and other environmental hazards. It is also highly flexible and easy to install. In addition, its superior flame retardant properties make it the perfect choice for applications that require flame retardancy.
KORE KR-WPET-01 PET Expandable Braided Sleeving is an excellent choice for any application requiring superior protection, flexibility, and flame retardancy. It is widely used in many industries, including automotive, electronics, marine, computer, aircraft, and more. This braided expandable sleeving is lightweight, easy to install, and able to expand up to three times its original size for easy installation in tight spaces. It is also highly flame retardant, temperature resistant, and RoHS compliant, making it the perfect choice for any application requiring superior protection and flame retardancy.
Dimensions
| NO. |
Inradium(mm) |
Maximum outer diameter of the parcel(mm) |
Spreading width(mm) |
Packaging standard (m/roll) |
| 1 |
5 |
6 |
28±2 |
250 |
| 2 |
8 |
9 |
40±2 |
250 |
| 3 |
10 |
11 |
50±5 |
150 |
| 4 |
13 |
14 |
60±5 |
100 |
| 5 |
16 |
17 |
80±5 |
100 |
| 6 |
19 |
20 |
105±5 |
50 |
| 7 |
25 |
27 |
125±8 |
50 |
| 8 |
29 |
31 |
145±8 |
50 |
| 9 |
38 |
40 |
188±10 |
25 |
| 10 |
50 |
52 |
248±10 |
25 |
Packing and Shipping:
The PET Expandable Braided Sleeving is packaged and shipped in spools, on pallets, or in boxes, depending on the customer’s preference. The spools are marked with the product name and measurements, and the boxes are labeled with the product name and size. The pallets are shrink-wrapped and labeled with the product name, size, and number of units.
