Product Description:

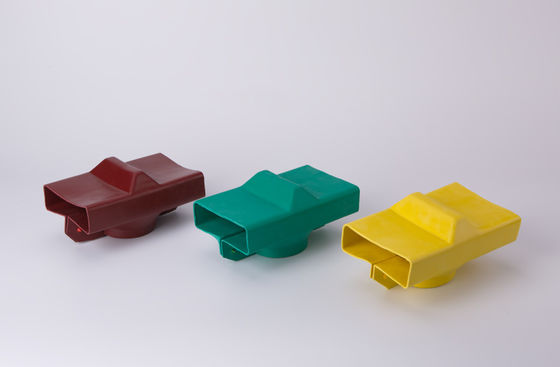

Bus bar cover

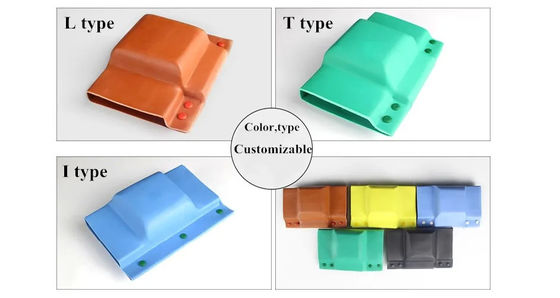

Products made of radiation cross-linked polyolefin material, with excellent physical and chemical electrical performance, it is an insulation treatment material where the busbar connects. It is also suitable for 1KV / 10KV / 35KV voltage class, and has various shape such as "I", "T" and "L". With electrical insulation, solder joint antirust and anticorrosion, mechanical protection, reduce phase spacing and other functions. Widely used in electronics, communication, machinery, manufacturing and other fields
Features
Bus bar cover
•Manufactured from cross linked polyolefin
•Used to offer insulation protection for busbar in switchgear and substation
•Protects against short circuit and electrical leakage cause by small animals
•Reduces busbar clearance requirements
•RoHS compliant
•Standard colors: red, yellow, green, other colors can be customized
| Performance |
Standard |
Test method/condition |
| Tensile Strength |
≥8.0MPa |
ASTM D 2671 |
| Elongation at break |
≥300% |
ASTM D 2671 |
| Tensile strength after heat aging |
≥6.9MPa |
130℃*168h |
| Elongation at break after heat aging |
≥100% |
130℃*168h |
| Oxygen Index |
≥28 |
GB/T 2406 |
| Thermal shock |
No cracks |
JB 7829 appendix D |
| Breakdown strength |
≥20kV/mm |
ASTM D 149 |
| Hardness (Shore A) |
≤90 |
GB2411 |
| Volume resistivity |
≥10^14Ω.cm |
IEC 60093 |
|
Selection Table:
| No |
I Type |
T Type |
L Type |
| (AXB) |
L |
W |
H |
L |
W |
H |
L |
W |
H |
| 30x8 |
95 |
35 |
50 |
05 |
35 |
60 |
70 |
35 |
60 |
| 40x8 |
125 |
45 |
50 |
40 |
45 |
60 |
75 |
45 |
55 |
| 50x8 |
135 |
55 |
55 |
55 |
55 |
65 |
90 |
55 |
65 |
| 60x8 |
165 |
65 |
75 |
165 |
65 |
75 |
100 |
65 |
75 |
| 80x10 |
185 |
85 |
75 |
195 |
85 |
75 |
30 |
85 |
75 |
| 100x10 |
220 |
105 |
75 |
215 |
105 |
75 |
40 |
105 |
75 |
| 120x10 |
235 |
125 |
75 |
245 |
25 |
75 |
165 |
125 |
75 |
| 150x10 |
260 |
155 |
75 |
285 |
155 |
75 |
195 |
155 |
75
|
Remark:
L=length of cover; W=width of cover; H=height of cover
A=width of busbar; B=thickness of busbar
(All dimensions are in mm)

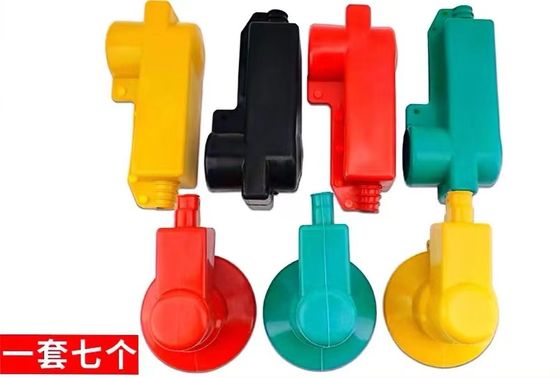

*According to customer drawings the special products for a variety of inlet and outlet of transformers,fuses, switches,surge arresters and other protective cover are available.
Application
Bus bar cover is widely used in insulation protection of copper row node of high and low voltage switchgear, insulation protection of transformer inlet and exit line, insulation protection of separate nodes and whole copper row inside and outside substation, and insulation protection of overhead line and connection fittings
Packaging and delivery
According to the tubing's size
Packing size:46*46*47cm
Port
Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details, message supplier
