Product Description:

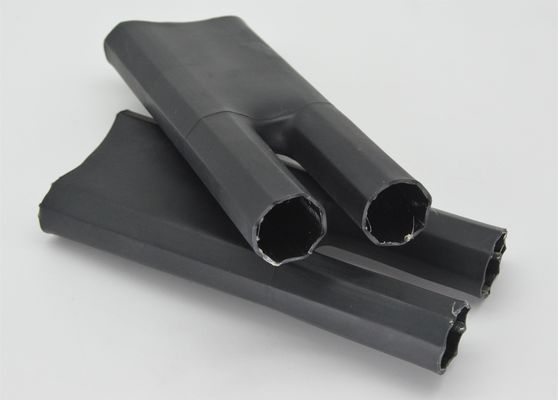

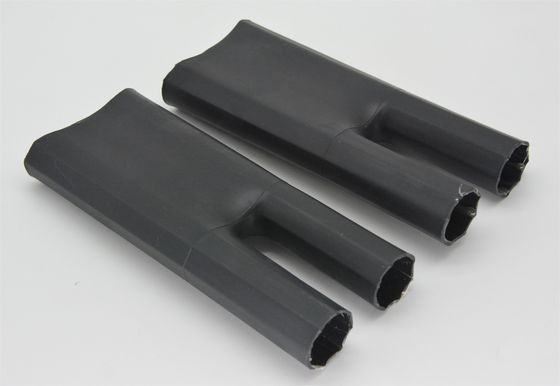

The hot shrinkable cable finger sleeve is made of crosslinked polyolefin material and hot melt adhesive. It is set on the branch of multi-core cable core and shrinks when heated. The hot melt adhesive on the inner wall will tightly stick the cable and play the role of waterproof and moisture-proof sealing protection, and the radiation crosslinked polyolefin material on the outer layer can play the role of electrical insulation protection.
Features:
• Manufactured from cross-linked polyolefin
• Provide sealing protection and strain relief over multi-core cable crutch, including 2-, 3-, 4—, and 5-core breakout
• Coated with adhesive on the body and the fingers to form a watertight seal
• Flame-retardant breakouts are available upon customer request
• Meeting with varieties of configuration requirements
• Shrink temperature: start at 90°C, and fully recovered at 130°C.
Technical Parameters:
|
Property
|
Test Method
|
Standard Value
|
| |
|
Insulated Breakout
|
Oil Resistant Breakout
|
Semi-conductive Breakout
|
|
Tensile Strength
|
ASTM-D-638
|
≥12MPa
|
≥12MPa
|
≥12MPa
|
|
Elongation at Break (120℃ ,168 hrs)
|
ASTM-D-638
|
≥300%
|
≥300%
|
≥300%
|
|
Tensile Strength after Aging (120℃,168 hrs)
|
ASTM-D-638
|
≥10MPa
|
≥10MPa
|
≥10MPa
|
|
Elongation at Break after Aging
|
ASTM-D-638
|
≥230%
|
≥230%
|
≥230%
|
|
Tensile Strength after Dipping
|
ASTM-D-638
|
—
|
≥10MPa
|
—
|
|
Elongation at Break after Dipping
|
ASTM-D-638
|
—
|
≥230%
|
—
|
|
Dielectric Strength
|
IEC 60243
|
≥15kV/mm
|
≥15kV/mm
|
—
|
|
WaterAbsorption
|
ISO 62
|
≤0.5%
|
≤0.5%
|
≤0.5%
|
|
Volume Resistivity
|
IEC 60093
|
≥1 x 10^13Ω • cm
|
≥1 x 10^13Ω • cm
|
10^2 -10^4 Ω • cm
|
Selection Table
| Product No |
Body Diameter/mm |
Finger Diameter/mm |
Full Length
(±5)/mm |
Finger Length
(±5)/mm |
As Supplied
(Min) |
After Recovered
(Max) |
As Supplied
(Min) |
After Recovered
(Max) |
| 2 |
WRSZT2-16/8.5(00#) |
16 |
8.5 |
8 |
3.5 |
54 |
22 |
| WRSZT2-24/13(0#) |
24 |
13 |
12 |
5 |
130 |
55 |
| WRSZT2-38/17(1#) |
38 |
17 |
20 |
|
145 |
65 |
| WRSZT2-48/22(2#) |
48 |
22 |
25 |
10 |
145 |
60 |
| WRSZT2-60/25(3#) |
60 |
25 |
35 |
11 |
135 |
55 |
| WRSZT2-72/25(4#) |
72 |
25 |
40 |
11 |
140 |
60 |
Applications:
It is suitable for sealing insulation protection at the branch of multi-core cable, easy operation, reliable performance and long service life. It is generally used with 1KV, 10KV, 35KV heat shrinkable indoor cable terminals or outdoor cable terminals.
Customization:
Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
