Product Description:

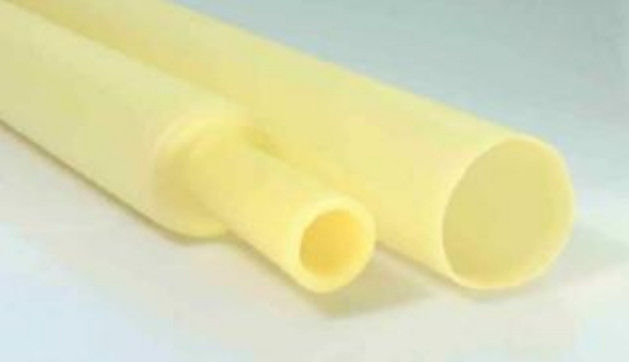

Manufactured from cross linked polyolefin. Mainly used in PILC cable terminations and joints, offering oil resistance,insulation and sealing protection.
Features:
• Manufactured from cross-linked polyolefin
• Provides excellent insulation and abrasion protection.
• RoHS compliant
• Shrink temperature: start at 90°C, and fully recovered at 130°C.
Selection Table:
| Product No |
Inner Diameter/mm |
After Recovered Wall
Thickness(±0.2)/mm |
Standard Length/mm |
| Min |
Max |
| WRSGY-30/11 |
30 |
11 |
1.8 |
300-1000 |
| WRSGY-35/12 |
35 |
12 |
2 |
300-1000 |
| WRSGY-40/17 |
40 |
17 |
2.2 |
300-1000 |
| WRSGY-30/12 |
30 |
12 |
3.7 |
300-1000 |
| WRSGY-40/14 |
40 |
14 |
3.7 |
300-1000 |
| WRSGY-50/22 |
50 |
22 |
3.7 |
300-1000 |
| WRSGY-85/29 |
85 |
29 |
2.8 |
300-1000 |
| WRSGY-100/38 |
100 |
38 |
3 |
300-1000 |
| WRSGY-120/45 |
120 |
45 |
3 |
300-1000 |
Technical Data:
| Property |
Test Method |
Standard Value |
| Tensile Strength |
ASTM-D-638 |
≥10MPa |
| Elongation at Break |
ACTM-D-638 |
≥350% |
| Tensile Strength after Aging |
ASTM-D-638 |
≥8MPa(130℃,168 hrs) |
| Elongation at Break after Aging |
ASTM-D-638 |
≥280%(130℃,168 hrs) |
| Oil Resistance |
ASTM-D-638 |
≥8MPa(70℃ cable oil,168hrs |
| (Tensile Strength after Dipping) |
| Oil Resistance |
ASTM-D-638 |
≥280%(70℃ cable oil,168hrs) |
| (Elongation at Break after Dipping) |
| Volume Resistivity |
EC 60093 |
≥1×10^14Ω·cm |
| Dielectric Constant |
EC 60250 |
≤3.0 |
| Water Absorption |
ISO 62 |
≤0.5% |
Customization:
Customized logo
Min. order: 10
Customized packaging
Min. order: 10
Graphic customization
Min. order: 10
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
