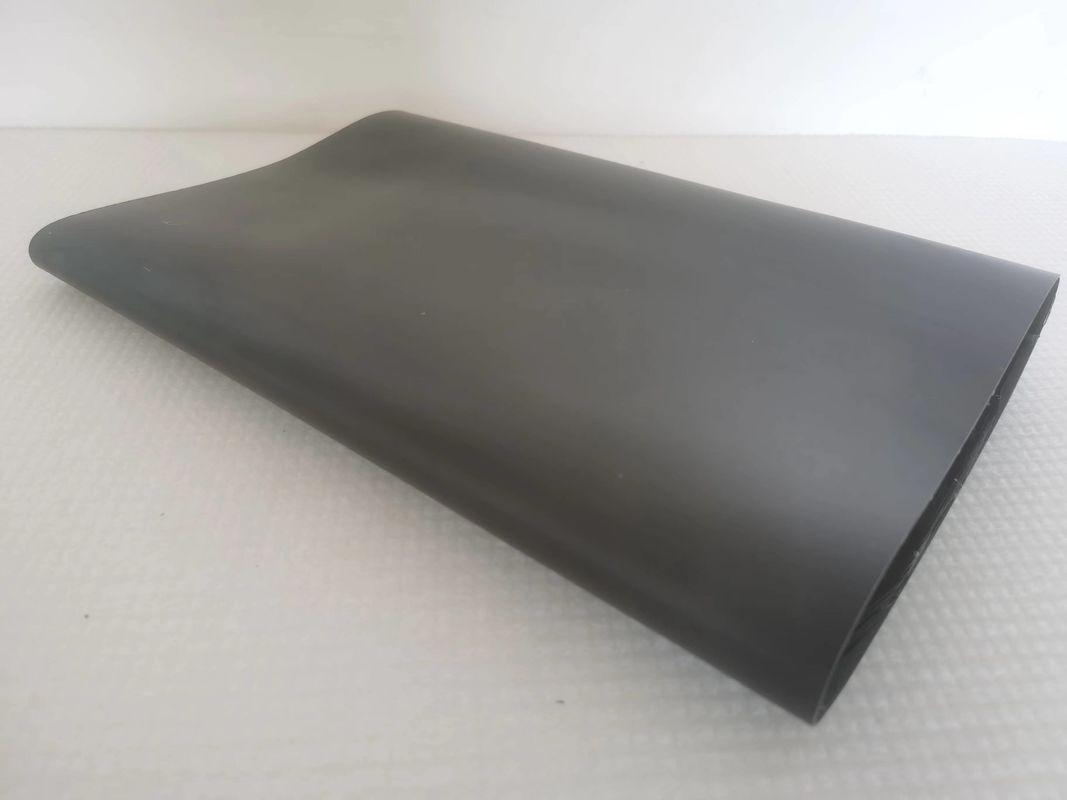

Product Description:
Manufactured from polyolefin,inner coated with hot-melt adhesive. Providing fast and permanent repair and sealing protection for power cables.
Features:
• Manufactured from cross-linked polyolefin
• Provides excellent insulation and abrasion protection.
• RoHS compliant
• Shrink temperature: start at 90°C, and fully recovered at 130°C.
Selection Table:
| Product No |
Inner Diameter/mm |
After Recovered Wall |
Standard Length/mm |
| As Supplied(Min) |
After Recovered(Max) |
Thickness(±0.2)/mm |
| WRSXP-30/12 |
30 |
12 |
3.8 |
450-1000 |
| WRSXP-40/14 |
40 |
14 |
3.8 |
450-1000 |
| WRSXP-50/17 |
50 |
17 |
3.8 |
450-1000 |
| WRSXP-60/23 |
60 |
23 |
3.8 |
450-1000 |
| WRSXP-65/23 |
65 |
23 |
3.8 |
450-1000 |
| WRSXP-80/35 |
80 |
35 |
3.8 |
450-1000 |
| WRSXP-85/35 |
85 |
35 |
3.8 |
450-1000 |
| WRSXP-100/35 |
100 |
35 |
3.8 |
450-1000 |
| WRSXP-120/40 |
120 |
40 |
3.8 |
450-1000 |
| WRSXP-150/50 |
150 |
50 |
4 |
450-1000 |
| WRSXP-160/50 |
160 |
50 |
4 |
450-1000 |
| WRSXP-195/70* |
195 |
70 |
2 |
450-1000 |
| WRSXP-240/90* |
240 |
90 |
2 |
400-600 |
| WRSXP-290/115* |
290 |
115 |
2 |
400-600 |
Remark:*Repair sleeve without hot-melt adhesive is available upon request
Technical Data:
| Property |
Test Method |
Standard Value |
| Tensile Strength |
ASTM-D-638 |
≥12MPa |
| Elongation at Break |
ASTM-D-638 |
≥300% |
| Tensile Strength after Aging |
ASTM-D-638 |
≥10MPa(130℃,168 hrs) |
| Elongation at Break after Aging |
ASTM-D-638 |
230%(130℃,168 hrs) |
| Dielectric Strength |
IEC 60243 |
≥15 kV/mm |
| Volume Resistivity |
IEC 60093 |
≥1×10^13Ω·cm |
| Longitudinal Shrinkage |
ASTM-D-2671 |
≤10% |
| Water Absorption |
S062 |
≤0.50 |
| Eccentricity |
ASTM-D-2671 |
≤30% |
Customization:
Customized logo
Min. order: 10
Customized packaging
Min. order: 10
Graphic customization
Min. order: 10
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China
