Product Description:

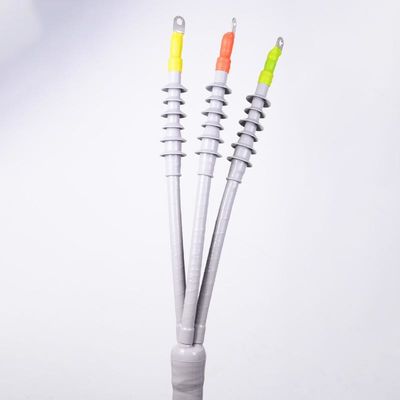

Cold Shrink Termination Kits
Cold shrink cable accessories are capable of shrinking without application of heat. They are manufactured in a pre-expanded condition and assembled onto a removable core.The core is removed after the tube is positioned over the cable for installation,allowing the tube to shrink and providing a moisture-tight seal.
3M quality

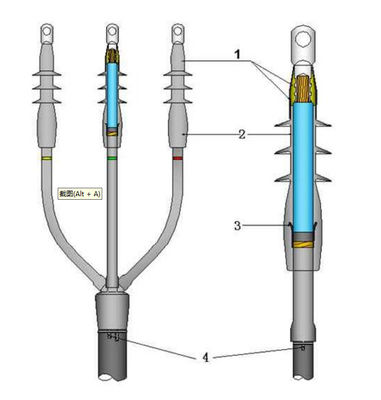

Features:
1. Environmental top sealing treatment.
Three steps to provide a seal to against the entrance of the external environment.
2. Excellent external housing
Imported LSR offers excellent hydrophobicity and great anti-tracking property to ensure the power safety.
3. Stress control
Stress cone adopts well designed geography analysis to smooth out the high stress area.
4. Earth connection
Adopt Solderless earth connection to connect metal screen or armour to ground.For cables with wire screen, copper wires are imbedded in the sealing mastic to prevent any corrosion by moisture sealing.
Note: Terminations can be ordered as standard kits (without lugs or other accessories)or complete kits.
Terminations and components for other cable types are available on request.
Selection Table:
| Voltage U0,/U(Um) |
Cores |
Cahle Crase |
Nominal insulation |
Diameter over |
Kit No |
| Section mm2 |
thickness/mm |
Insulation/mm |
| 0.6/1(1.2)kV |
1;3;4;5
Indoor or Outdoor |
25-50
70-120
150-240
300-400 |
|
|
1.2kVWLT-1(3,4,5)/1 1.2kVWLT-1(3,4,5)/2 1.2kVWLT-1(3,4,5)/3 1.2kVWLT-1(3,4,5)/4 |
6/10(12)kV
6.35/11(12)kV |
1.3
Indoor |
50-70
95-150
185-300
400-500
630 |
3.4 |
16-19.5
19-24.5
23.5-30
30.5-35
37-42.3 |
12kVWLN-1/1(3/1)
12kVWLN-1/2(3/2)
12kVWLN-1/3(3/3)
12kVWLN-1/4(3/4)
12kVWLN-1/5(3/5) |
1,3
Outdoor |
50-70
95-150
185-300
400-500
630 |
3.4 |
16-19.5
19-24.5
23.5-30
30.5-35
37-42.3 |
12kVWLW-1/1(3/1)
12kVWLW-1/2(3/2)
12kVWLW-1/3(3/3)
12kVWLW-1/4(3/4)
12kVWLW-1/5(3/5) |
| 8.7/15(17.5)kV |
1,3
Indoor |
25-50
70-120
150-240
300-400
500-630 |
4.5 |
16-19.5
19-24.5
23.5-30
30.5-35
37-42.3 |
17.5kVWLN-1/1(3/1)
17.5KVWLN-1/2(3/2)
17.5kVWLN-1/3(3/3)
17.5KVWLN-1/4(3/4)
17.5KVWLN-1/5(3/5) |
1.3
Outdoor |
25-50
70-120
150-240
300-400
500-630 |
4.5 |
16-19.5
19-24.5
23.5-30
30.5-35
37-42.3 |
17.5kVWLW-1/1(3/1)
17.5kVWLW-1/2(3/2)
17.5kVWLW-1/3(3/3) 17.5kVWLW-1/2(3/3)
17.5kVWLW-1/4(3/4) 17.5kVWLW-1/2(3/4)
17.5kVWLW-1/5(3/5) 17.5kVWLW-1/2(3/5) |
12/20(24)kV
12.7/22(24)kV |
1,3
Indoor |
25-50
70-120
150-240
300-400
500-630 |
5.5 |
18-21.5
21-26.5
25.5-32
32.5-37
39-44.3 |
24kVWLN-1/1(3/1)
24kVWLN-1/2(3/2)
24kVWLN-1/3(3/3)
24kVWLN-1/4(3/4)
24kVWLN-1/5(3/5) |
1,3
Outdoor |
25-50
70-120
150-240
300-400
500-630 |
5.5 |
18-21.5
21-26.5
25.5-32
32.5-37
39-44.3 |
24kVWLW-1/1(3/1)
24kVWLW-1/2(3/2)
24kVWLW-1/3(3/3) 17.5kVWLW-1/2(3/3)
24kVWLW-1/4(3/4) 17.5kVWLW-1/2(3/4)
24kVWLW-1/5(3/5) 17.5kVWLW-1/2(3/5) |
18/30(36)kV
19/33(36)kV |
1.3
Indoor |
35-50
70-185
240-500
630 |
8.0 |
22-27
27.5-35
35.5-46
46.5-55 |
36kVWLN-1/1(3/1)
36kVWLN-1/2(3/2)
36kVWLN-1/3(3/3)
36kVWLN-1/4(3/4) |
1.3
Outdoor |
35-50
70-185
240-500
630 |
8.0 |
22-27
27.5-35
35.5-46
46.5-55 |
36kVWLW-1/1(3/1)
36kVWLW-1/2(3/2)
36kVWLW-1/3(3/3)
36kVWLW-1/4(3/4) |
20.8/36(42)kV
26/35(42)kV |
1.3
Indoor |
50-95
120-240
300-400
500-630 |
9.3 |
28.5-35
35.5-42
42.5-48
48.5-56 |
42kVWLN-1/1(3/1)
42kVWLN-1/2(3/2)
42kVWLN-1/3(3/3)
42kVWLN-1/4(3/4) |
1.3
Outdoor |
50-95
120-240
300-400
500-630 |
9.3 |
28.5-35
35.5-42
42.5-48
48.5-56 |
42kVWLW-1/1(3/1)
42kVWLW-1/2(3/2)
42kVWLW-1/3(3/3)
42kVWLW-1/4(3/4) |
| 26/35(42)kV |
1.3
Indoor |
50-95
120-240
300-400
500-630 |
10.5 |
28.5-35
35.5-42
42.5-48
48.5-56 |
42kVWLN-1/1(3/1)
42kVWLN-1/2(3/2)
42kVWLN-1/3(3/3)
42kVWLN-1/4(3/4) |
1.3
Outdoor |
50-95
120-240
300-400
500-630 |
10.5 |
28.5-35
35.5-42
42.5-48
48.5-56 |
42kVWLW-1/1(3/1)
42kVWLW-1/2(3/2)
42kVWLW-1/3(3/3)
42kVWLW-1/4(3/4) |
Applications:
Widely used in large-scale electric power, power stations, railway transportation and other industries.
Packaging and delivery
According to the tubing's size
Packing size:46*46*47cm
Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details, message supplier
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
