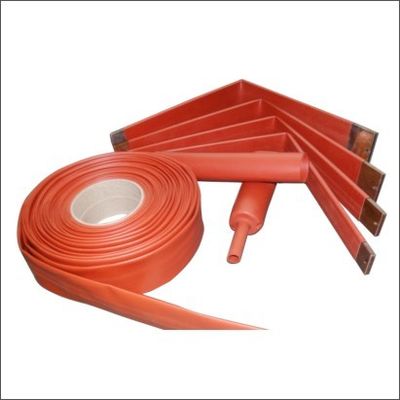

Flexible Medium Voltage Cross-linked Polyolefin Busbar Insulation Tubing
Product Description:
RSFRNH-BTM,RSFRNH-HTM is made from specially formulated radiation cross-linked halogen free compounds. It can provide high resistance to tracking and arcing, as well as to enhance the insulation properties of busbar in switchgear and substation. Suitable for application in insulating medium voltage bus bars, cable termination and joints up to 35KV.
Features:
● Flame Retardant
● Reduces busbar clearance requirements
● Protect against accidental flashover
● Anti-track
● Halogen free
● RSFRNH-BTM(1-25kV);RSFRNH-HTM(1-35kV)
● Continuous Operating Temperature:-40 ℃ to 110℃, can be used in 175℃
● Shrink Temperature:120℃
Technical Parameters:
Physical
Electrical
Selection Table:
Busbar Insulation Tube of RSFRNH-BTM(1-25kV)
| Size |
Spec of busbar |
Before shrinkage |
After Shrinkage |
Product Package |
| Round busbar(A) |
Square busbar(L+B) |
Inside diameter |
Inside diameter |
Wall Thickness |
(m/roll) |
| RSFRNH-BTM 15/6 |
6.5-11 |
10-17 |
16.0±2.0 |
≤6 |
1.90±0.3 |
25 |
| RSFRNH-BTM 20/8 |
9.0-15 |
15-24 |
21.0±2.0 |
≤8 |
2.20±0.3 |
25 |
| RSFRNH-BTM 25/10 |
11.0-18 |
17-28 |
26.0±2.0 |
≤10 |
2.20±0.3 |
25 |
| RSFRNH-BTM 30/12 |
13.5-23 |
21-36 |
31.0±2.0 |
≤12 |
2.20±0.3 |
25 |
| RSFRNH-BTM 40/16 |
18-32 |
28-45 |
41.0±2.0 |
≤16 |
2.35±0.4 |
25 |
| RSFRNH-BTM 50/20 |
22-38 |
35-60 |
52.0±3.0 |
≤20 |
2.35±0.4 |
25 |
| RSFRNH-BTM 60/24 |
27-45 |
42-69 |
62.0±3.0 |
≤24 |
2.35±0.4 |
25 |
| RSFRNH-BTM 65/26 |
28-47 |
42-69 |
67.0±3.0 |
≤26 |
2.35±0.4 |
25 |
| RSFRNH-BTM 75/30 |
35-56 |
55-90 |
77.0±3.0 |
≤30 |
2.35±0.4 |
25 |
| RSFRNH-BTM 85/34 |
38-64 |
60-100 |
87.0±4.0 |
≤34 |
2.35±0.4 |
25 |
| RSFRNH-BTM 100/40 |
45-75 |
70-115 |
102.0±4.0 |
≤40 |
2.35±0.4 |
25 |
| RSFRNH-BTM 120/50 |
55-90 |
90-135 |
122.0±4.0 |
≤50 |
2.80±0.4 |
25 |
| RSFRNH-BTM 150/60 |
65-105 |
102-148 |
152.0±4.0 |
≤60 |
2.80±0.4 |
25 |
| RSFRNH-BTM 175/70 |
80-135 |
125-210 |
180.0±5.0 |
≤70 |
2.80±0.4 |
25 |
| RSFRNH-BTM 205/110 |
125--145 |
200-230 |
210.0±5.0 |
≤110 |
2.80±0.4 |
20 |
| RSFRNH-BTM 230/130 |
145-175 |
225-280 |
230.0±5.0 |
≤130 |
3.10±0.4 |
20 |
Busbar Insulation Tube of RSFRNH-HTM(1-35kV)
| Size |
Spec of busbar |
Before shrinkage |
After Shrinkage |
Product Package |
| Round busbar(A) |
Square busbar(L+B) |
Inside diameter |
Inside diameter |
Wall Thickness |
(m/roll) |
| RSFRNH-HTM 15/6 |
6.5-11 |
10-17 |
16.0±2.0 |
≤6 |
4.0±0.4 |
15 |
| RSFRNH-HTM 20/8 |
9.0-15 |
15-24 |
21.0±2.0 |
≤8 |
4.0±0.4 |
15 |
| RSFRNH-HTM 25/10 |
11.0-18 |
17-28 |
26.0±2.0 |
≤10 |
4.0±0.4 |
15 |
| RSFRNH-HTM 30/12 |
13.5-23 |
21-36 |
31.0±2.0 |
≤12 |
4.0±0.4 |
15 |
| RSFRNH-HTM 35/14 |
15.5-26 |
25-40 |
36.0±2.0 |
≤14 |
4.0±0.4 |
15 |
| RSFRNH-HTM 40/16 |
18-32 |
28-45 |
41.0±2.0 |
≤16 |
4.0±0.4 |
15 |
| RSFRNH-HTM 50/20 |
22-38 |
35-60 |
52.0±3.0 |
≤20 |
4.0±0.4 |
15 |
| RSFRNH-HTM 60/24 |
27-45 |
42-69 |
62.0±3.0 |
≤24 |
4.0±0.4 |
15 |
| RSFRNH-HTM 65/26 |
28-47 |
42-69 |
67.0±3.0 |
≤26 |
4.0±0.4 |
15 |
| RSFRNH-HTM 70/28 |
31-52 |
49-81 |
72.0±3.0 |
≤28 |
4.0±0.4 |
15 |
| RSFRNH-HTM 75/30 |
35-56 |
55-90 |
77.0±3.0 |
≤30 |
4.0±0.4 |
15 |
| RSFRNH-HTM 80/32 |
36-60 |
56-95 |
82.0±4.0 |
≤32 |
4.0±0.4 |
15 |
| RSFRNH-HTM 100/40 |
45-75 |
70-115 |
102.0±4.0 |
≤40 |
4.0±0.4 |
15 |
| RSFRNH-HTM 120/48 |
55-90 |
90-135 |
122.0±4.0 |
≤48 |
4.0±0.4 |
15 |
| RSFRNH-HTM 150/60 |
65-105 |
102-148 |
152.0±4.0 |
≤60 |
4.0±0.4 |
15 |
| RSFRNH-HTM 180/72 |
80-135 |
125-210 |
180.0±5.0 |
≤72 |
4.0±0.4 |
15 |
Note: A is the diameter of round busbar.L is the length of rectangular busbar.B is the width of rectangular busbar.
Packaging and delivery:
Packing size:46*46*45cm
Delivery: Any ports of China
Customization:
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details, message supplier
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
