Electrical Insulation Cold Shrink Cable Accessories Cold Shrink Joint up to 42 kV Cold Shrink Joint Kits
Product Description:
Cold shrink cable seal kits
All-cold-shrink cable accessories are innovative and efficient solutions for cable termination and splicing in various electrical and telecommunications applications. Unlike traditional methods that require heat or specialized tools for installation, all-cold-shrink accessories utilize a unique cold-shrink technology, making installation quick, simple, and reliable.

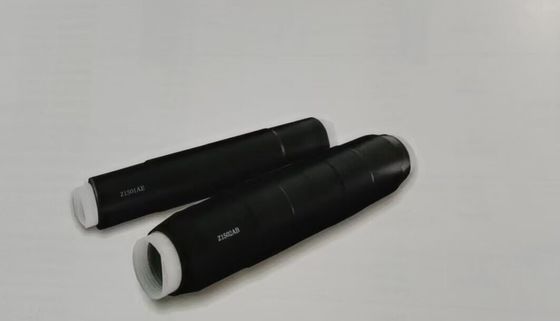

Cold Shrink Joint Kits
Features:

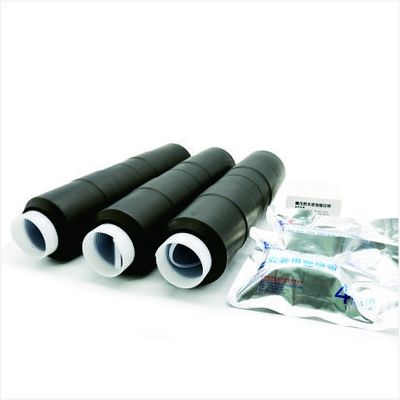

Cold Shrink Joint Kits
1.Joint Body
One-piece design to provide the insulation and insulation screen to recover the cable structure.
2.Electrical stress control
Stress control tube,together with stress cone are used to smooth out the electrical field at the insulation screen cuts.
3.Metallic shielding
Copper mesh which has been secured with solderless earth connection is wrapped around the joint area to rebuild the metallic screen and provide screen continuity across the joint.
4.Outer sealing and protection
The outer sealing and protection is performed by both the waterproof tape and arour tape.So they provide mechanical protection and chemical resistance as expected from cable oversheath.
Note:
Joints can be ordered as standard kits (without connectors or other accessories)or complete kits. Joints and components for other cable types are available on request. Connectors need to be ordered separately.
Selection Table:
| Voltage U0,/U(Um) |
Cores |
Cable Cross |
Nominal insulation |
Diameter over |
Kit No |
| Section mm2 |
thickness/mm |
Insulation/mm |
| 0.6/1(1.2)kV |
1,3,4,5 |
25-50
70-120
150-240
300-400 |
|
|
1.2kVWLJ-1(3,4,5)/1 1.2kVWLJ-1(3,4,5)/2 1.2kVWLJ-1(3,4,5)/3 1.2kVWLJ-1(3,4,5)/4 |
|
|
|
6/10(12)kV
6.35/11(12)kV |
1,3 |
50-70
95-150
185-300
400-500
630 |
3.4 |
16-19.5
19-24.5
23.5-30
30.5-35
37-42.3 |
12kVWLJ-1/1(3/1)
12kVWLJ-1/2(3/2)
12kVWLJ-1/3(3/3)
12kVWLJ-1/4(3/4)
12kVWLJ-1/5(3/5) |
|
|
|
|
| 8.7/15(17.5)kV |
1,3 |
25-50
70-120
150-240
300-400
500-630 |
4.5 |
16-19.5
19-24.5
23.5-30
30.5-35
37-42.3 |
17.5kVWLN-1/1(3/1)
17.5KVWLN-1/2(3/2)
17.5kVWLN-1/3(3/3)
17.5KVWLN-1/4(3/4)
17.5KVWLN-1/5(3/5) |
|
|
|
|
12/20(24)kV
12.7/22(24)kV |
1,3 |
25-50
70-120
150-240
300-400
500-630 |
5.5 |
18-21.5
21-26.5
25.5-32
32.5-37
39-44.3 |
24kVWLJ-1/1(3/1)
24kVWLJ-1/2(3/2)
24kVWLJ-1/3(3/3)
24kVWLJ-1/4(3/4)
24kVWLJ-1/5(3/5) |
|
|
|
|
18/30(36)kV
19/33(36)kV |
1,3 |
35-50
70-120
150-240
300-400
500-630 |
8.0 |
22-28
26.5-33
31.5-39
35.5-43
40.5-49 |
36kVWLJ-1/1(3/1)
36kVWLJ-1/2(3/2)
36kVWLJ-1/3(3/3)
36kVWLJ-1/4(3/4)
36kVWLJ-1/5(3/5) |
|
|
|
|
20.8/36(42)kV
26/35(42)kV |
1,3 |
50-95
120-240
300-400
500-630 |
9.3 |
28.5-35
35.5-42
42.5-48
48.5-56 |
42kVWLN-1/1(3/1)
42kVWLN-1/2(3/2)
42kVWLN-1/3(3/3)
42kVWLN-1/4(3/4) |
|
|
|
| 26/35(42)kV |
1,3 |
50-95
120-240
300-400
500-630 |
10.5 |
28.5-35
35.5-42
42.5-48
48.5-56 |
42kVWLN-1/1(3/1)
42kVWLN-1/2(3/2)
42kVWLN-1/3(3/3)
42kVWLN-1/4(3/4) |
|
|
|
Applications:
Cold Shrink Joint Kits
Widely used in large-scale electric power, power stations, railway transportation and other industries. Cable repaire. Same as 3M quality.
Packaging and delivery
According to the tubing's size
Packing size:46*46*47cm
Port
Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details, message supplier
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
