RoHS High Flame Retardant Thin Wall Fluoroelastomer Heat Shrink Tubing

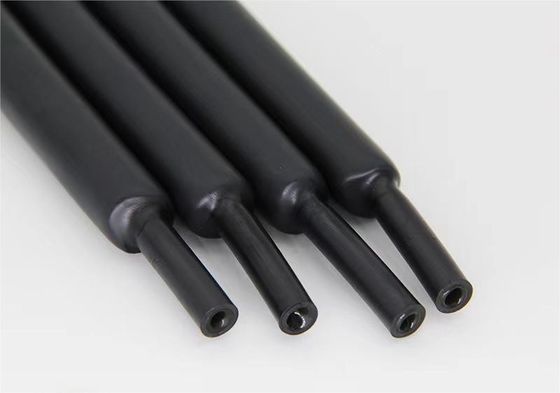

Large Image : RoHS High Flame Retardant Thin Wall Fluoroelastomer Heat Shrink Tubing

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	LONG
Certification:	ISO9001
Model Number:	RSFR-VT200

Payment & Shipping Terms:

Minimum Order Quantity:	1 meter
Price:	USD 0.1/m
Packaging Details:	Carton
Delivery Time:	1-7days
Payment Terms:	T/T
Supply Ability:	50000 Meters Per Day

Contact Now

RoHS High Flame Retardant Thin Wall Fluoroelastomer Heat Shrink Tubing

Description

Fire Resistance:	UL224 VW-1	Tear Resistance:	≥250%
Tensile Strength:	≥8.5MPa	Puncture Strength:	≥26kv/mm
Volume Resistivity:	≥10^9 Ω.cm	Corrosion Resistance:	Good
Continuous Operating Temperature:	-55%℃ To 200℃	Chemical Resistance:	Good
Highlight:	High temperature resistance ptfe cable sleeve , ptfe wire sleeve , High temperature resistance wire sleeve

RoHS High Flame Retardant Thin Wall Fluoroelastomer Heat Shrink Tubing

Product Description:

Thin wall viton fluoroelastomer heat shrink tubing is made of fluororubber and polymer elastomer modified by radiation, can be used at high temperature for a long time, and is resistant to diesel, aviation fuel and high temperature fluid. It can be used for the protection of military vehicles, high-speed railways, bullet train, ship equipment or commercial cable terminals, separation joints, etc

Features:

2:1 shrink ratio
High withstand to corrosive fluids in extreme temperatures
Flame Retardant
Good flexible
Easy to stamped
Continuous operating temperature: -55℃ to 200℃
Fully shrink temperature: 175℃
Meets SAE-AMS-DTL-23053/13

Applications:

Use in electronic systems and components in automotive, military/aerospace and industrial applications requiring heat and fluid resistance.

Dimensions:

Size		Expanded	Recovered		Standard Package M/Spool	Round/Flat
Inch	mm	Internal Diameter (mm)	Internal Diameter (mm)	Wall Thickness (mm)	Standard Package M/Spool	Round/Flat
3/321/8	2.4	2.4	1.2	0.70±0.20	200	Round
3/321/8	3.2	3.2	1.6	0.75±0.20	200	Round
3/16	4.8	4.8	2.4	0.89±0.20	100	Round
1/4	6.4	6.4	3.2	0.89±0.20	100	Round
3/8	9.5	9.5	4.8	0.89±0.20	50	Flat
1/2	12.7	12.7	6.4	0.89±0.20	25	Flat
3/4	19.0	19.0	9.5	1.07±0.30	25	Flat
1	25.4	25.4	12.7	1.25±0.30	25	Flat
1-1/2	38.1	38.1	19.0	1.40±0.30	25	Flat
2	50.8	51.0	25.4	1.65±0.30	15	Flat

Technical Data:

Property	Test Method	Standard	Typical Performance
Tensile Strength(MPa)	ASTM D2671	≥8.5	10.0
Elongation(%)	ASTM D2671	≥250	300
Tensile Strength after aging(MPa)	UL224 158℃ X168hr	≥7.3	8.5
Elongation after aging(%)	UL224 158℃ X168hr	≥200	250
Dieletric strength(kV/mm)	IEC 60243	≥15	17.5
Volume resistivity(O.cm)	IEC 60093	≥1x10^9	≥2.5x10^9
Flammability	UL224 VW-1	Pass	Pass

FAQ:

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
