· Insulation waterproof, sealing protection
· Suitable for wire and cable end
· Protection Class : IP67
· The inner is coated with hot melt glue
· Shrink temperature: start at 90℃, and fully recovered at 130℃
· Standard color: Black
Applications

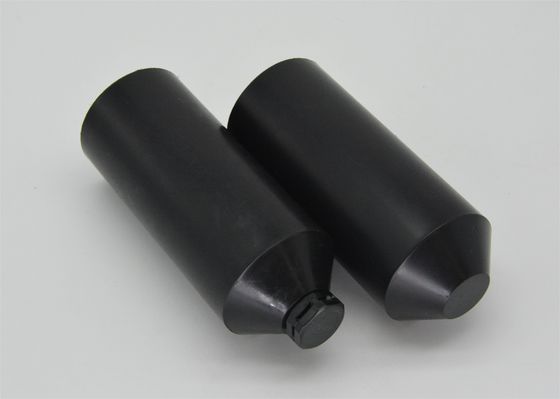

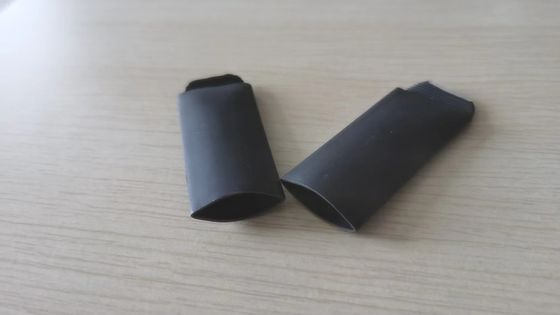

Heat Shrink End Caps
Used for sealing the electric power cable ends and the telecom cable ends during installation or storage,
Protect the cable ends from oxidation, ozone, ultraviolet light and other substances.
It can also be used for the end processing of the street lamp joints
Flame-retardant end cover can be provided according to customer requirements
Dimensions
| No |
Ordinary specification: diameter*high(mm) |
Ordinary specification: diameter*high(mm) |
Ordinary specification: diameter*high(mm) |
Applicable wire outer diameter Φ |
| 1 |
10×30 |
10×40 |
10×50 |
7—9 |
| 2 |
13×30 |
13×40 |
13×80 |
7—12 |
| 3 |
15×40 |
15×50 |
15×100 |
11—13 |
| 4 |
18×40 |
18×50 |
18×100 |
13—15 |
| 5 |
20×40 |
20×60 |
20×100 |
14—18 |
| 6 |
23×40 |
23×50 |
23×60 |
15—20 |
| 7 |
25×40 |
25×60 |
25×65 |
18—22 |
| 8 |
30×50 |
30×70 |
30×100 |
22—27 |
| 9 |
35×50 |
35×70 |
35×100 |
27—30 |
| 10 |
40×60 |
40×70 |
40×120 |
30—35 |
| 11 |
45×60 |
45×70 |
45×120 |
35—40 |
| 12 |
50×70 |
50×80 |
50×120 |
40—45 |
| 13 |
55×70 |
55×80 |
55×120 |
45—50 |
| 14 |
60×80 |
60×90 |
|
50—55 |
| 15 |
65×80 |
65×90 |
65×120 |
55—60 |
| 16 |
70×90 |
70×120 |
|
60—65 |
| 17 |
75×90 |
75×120 |
|
65—70 |
| 18 |
80×100 |
80×120 |
|
70—75 |
| 19 |
85×100 |
85×120 |
|
75—80 |
| 20 |
90×120 |
90×150 |
140×180 |
80—90 |
| 21 |
95×120 |
95×150 |
|
90—95 |
| 22 |
100×130 |
100×160 |
150×180 |
90—95 |
| 23 |
110×130 |
110×160 |
160×180 |
95—110 |
| 24 |
120×130 |
120×160 |
|
110—120 |
| 25 |
|
130×160 |
130×180 |
120—130 |
| 26 |
|
140×160 |
140×180 |
130—140 |
| 27 |
|
150×160 |
|
140—150 |
| 28 |
|
160×160 |
|
communication cable |
| 29 |
Inflatable cap |
|
|
|
| 30 |
|
|

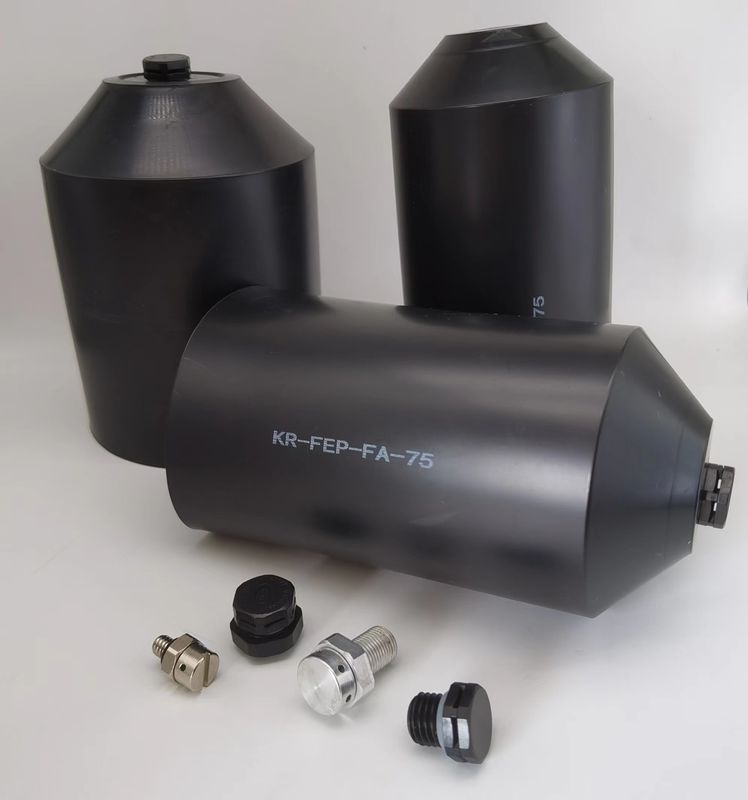

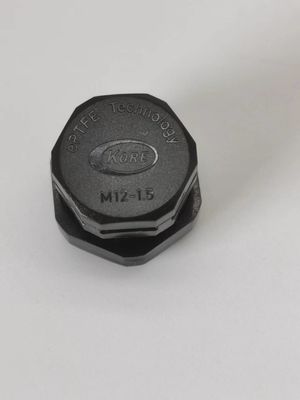

(Patent spring-type) exhaust cap |
power cable |
| 31 |
|
|
(Patent bypass valve) exhaust cap |
high voltage cable |
Packaging and delivery
Packaging Details According to the cap's size
46cm*46cm*45cm
Port Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 5 MOQ: 5 MOQ: 5
Customized production can be carried out according to customer requirements
For more customization details, message supplier
