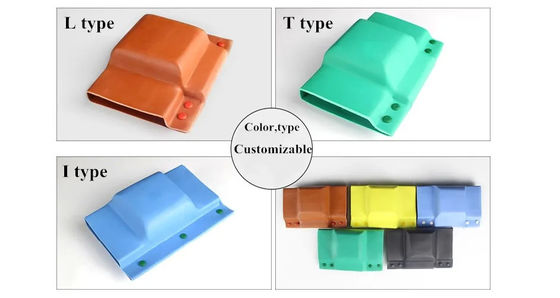

10mm Width Electrical Cable Accessories Busbar Joint Covers I Type L Type T Type Bus bar Cover

Product Description:

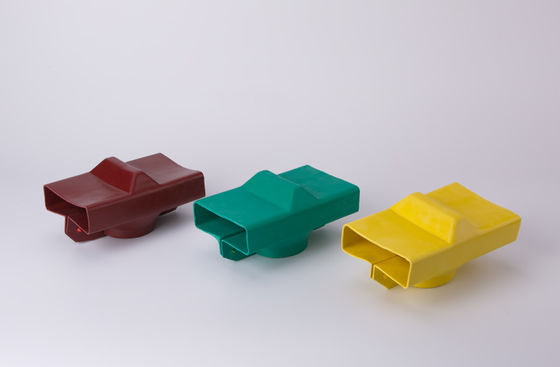

Bus bar cover

Features:

·Manufactured from cross linked polyolefin

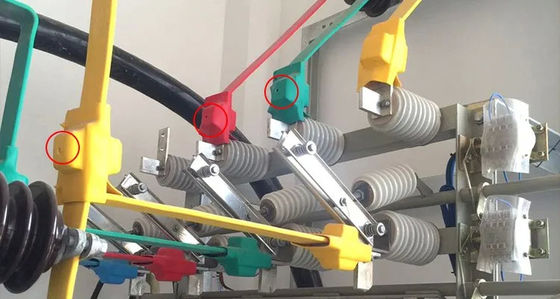

·Widely used to protect complex busbar connections where tube products cannot be applied

·Offering tailor-made solutions against specific requirements

·Color : red,yellow,green,black

Selection Table:

No	I Type			T Type			L Type
(AXB)	L	W	H	L	W	H	L	W	H
30x8	95	35	50	05	35	60	70	35	60
40x8	125	45	50	40	45	60	75	45	55
50x8	135	55	55	55	55	65	90	55	65
60x8	165	65	75	165	65	75	100	65	75
80x10	185	85	75	195	85	75	30	85	75
100x10	220	105	75	215	105	75	40	105	75
120x10	235	125	75	245	25	75	165	125	75
150x10	260	155	75	285	155	75	195	155	75

Remark:

L=length of cover; W=width of cover; H=height of cover

A=width of busbar; B=thickness of busbar

(All dimensions are in mm)

*According to customer drawings the special products for a variety of inlet and outlet of transformers,fuses, switches,surge arresters and other protective cover are available.


Technical Data:

Bus bar cover

Performance	Standard	Test method/condition
Tensile Strength	≥8.0MPa	ASTM D 2671
Elongation at break	≥300%	ASTM D 2671
Tensile strength after heat aging	≥6.9MPa	130℃*168h
Elongation at break after heat aging	≥100%	130℃*168h
Oxygen Index	≥28	GB/T 2406
Thermal shock	No cracks	JB 7829 appendix D
Breakdown strength	≥20kV/mm	ASTM D 149
Hardness (Shore A)	≤90	GB2411
Volume resistivity	≥10^14Ω.cm	IEC 60093

Applications:

It is widely used in electronics, communications, machinery, manufacturing and other fields.

Customization:

Customized logo

Min. order: 100

Customized packaging

Min. order: 100

Graphic customization

Min. order: 100

For more customization details, message supplier

FAQ:

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
