Product Description:
The hot shrinkable cable finger sleeve is made of crosslinked polyolefin material and hot melt adhesive. It is set on the branch of multi-core cable core and shrinks when heated. The hot melt adhesive on the inner wall will tightly stick the cable and play the role of waterproof and moisture-proof sealing protection, and the radiation crosslinked polyolefin material on the outer layer can play the role of electrical insulation protection.
Features:
• Manufactured from cross-linked polyolefin

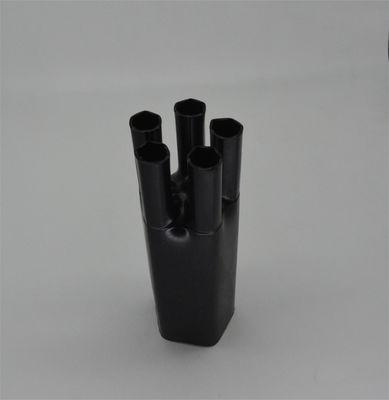

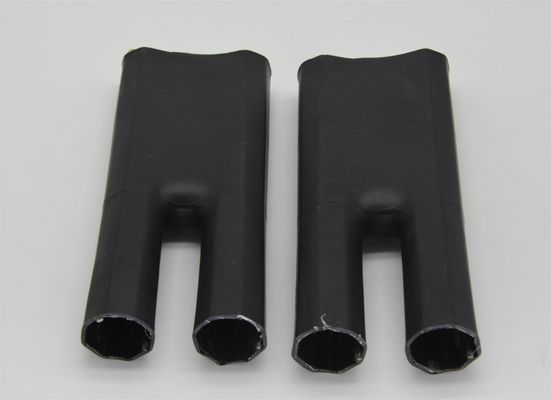

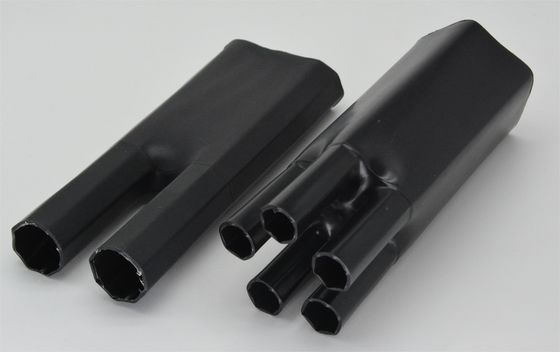

• Provide sealing protection and strain relief over multi-core cable crutch, including 2-, 3-, 4-, and 5-core breakout
• Coated with adhesive on the body and the fingers to form a watertight seal
• Flame-retardant breakouts are available upon customer request
• Meeting with varieties of configuration requirements
• Shrink temperature: start at 90°C, and fully recovered at 130°C.
Technical Parameters:
|
Property
|
Test Method
|
Standard Value
|
| |
|
Insulated Breakout
|
Oil Resistant Breakout
|
Semi-conductive Breakout
|
|
Tensile Strength
|
ASTM-D-638
|
≥12MPa
|
≥12MPa
|
≥12MPa
|
|
Elongation at Break (120℃ ,168 hrs)
|
ASTM-D-638
|
≥300%
|
≥300%
|
≥300%
|
|
Tensile Strength after Aging (120℃,168 hrs)
|
ASTM-D-638
|
≥10MPa
|
≥10MPa
|
≥10MPa
|
|
Elongation at Break after Aging
|
ASTM-D-638
|
≥230%
|
≥230%
|
≥230%
|
|
Tensile Strength after Dipping
|
ASTM-D-638
|
—
|
≥10MPa
|
—
|
|
Elongation at Break after Dipping
|
ASTM-D-638
|
—
|
≥230%
|
—
|
|
Dielectric Strength
|
IEC 60243
|
≥15kV/mm
|
≥15kV/mm
|
—
|
|
WaterAbsorption
|
ISO 62
|
≤0.5%
|
≤0.5%
|
≤0.5%
|
|
Volume Resistivity
|
IEC 60093
|
≥1 x 10^13Ω • cm
|
≥1 x 10^13Ω • cm
|
10^2 -10^4 Ω • cm
|
Applications:
It is suitable for sealing insulation protection at the branch of multi-core cable, easy operation, reliable performance and long service life. It is generally used with 1KV, 10KV, 35KV heat shrinkable indoor cable terminals or outdoor cable terminals.
Customization:
Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China
