Product Description:
Heat shrink molded shapes are specialized heat shrinkable products designed to sealing protection over 6-core cable crutch,such as trailing cable,variable frequency drive cable,telecommunication cables,control cable,etc.
These molded shapes are typically made from a durable polymer material, such as polyolefin, that has excellent heat shrink properties.

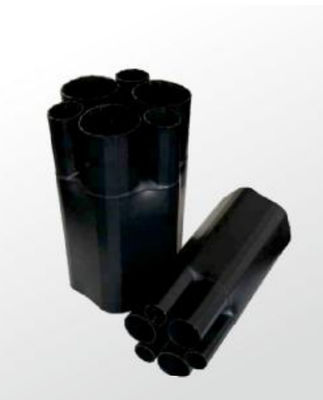

Heat Shrink Breakout
Features:
• Manufactured from cross-linked polyolefin
• Provide sealing protection over 6-core cable crutch,such as trailing cable,variable frequency drive cable,telecommunication cables,control cable,etc.
• Shrink temperature: start at 90°C, and fully recovered at 130°C.
• Flame-retardant breakouts are available upon customer request
• Inner coated with adhesive on the body and the fingers to form a durable watertight seal
Applications:
It is suitable for sealing insulation protection at the branch of multi-core cable, easy operation, reliable performance and long service life. It is generally used with 1KV, 10KV, 35KV heat shrinkable indoor cable terminals or outdoor cable terminals.
Technical Parameters:
| Property |
Test Method |
Standard Value |
| Tensile Strength |
ASTM-D-638 |
≥12MPa |
| Elongation at Break (120℃ ,168 hrs) |
ASTM-D-638 |
≥300% |
| Tensile Strength after Aging (120℃,168 hrs) |
ASTM-D-638 |
≥10MPa |
| Elongation at Break after Aging |
ASTM-D-638 |
≥230% |
| Dielectric Strength |
IEC 60243 |
≥15kV/mm |
| WaterAbsorption |
ISO 62 |
≤0.5% |
| Volume Resistivity |
IEC 60093 |
≥1 x 10^13Ω • cm |

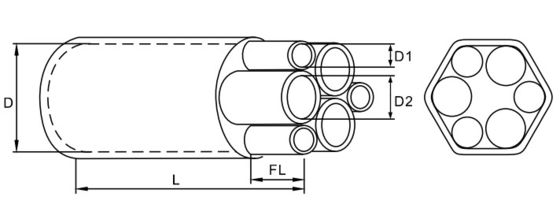

Select Table:
| Product No |
ID As Supplied/mm |
ID After Recovered/mm |
| Body Diameter(D) |
Finger Diameter |
Full Length |
Finger Length |
Body diameter(D) |
Finger Diameter |
| Big finger(D2) |
Small finger(D1) |
(L)(±5) |
(FL)(±5) |
Big finger(D2) |
Small finger(D1) |
| WRSZT6-86/40(1#) |
≥86 |
≥32 |
≥20 |
220 |
55 |
≤40 |
≤11 |
≤8 |
| WRSZT6-133/53(2#) |
2133 |
255 |
≥3 |
220 |
55 |
≤53 |
≤16 |
≤11 |
Customization:
Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
