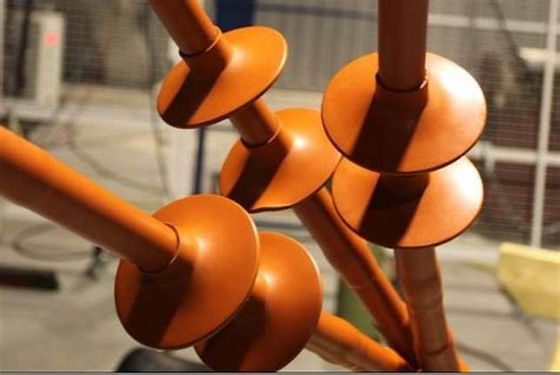

Product Description:
Manufactured from polyolefin, coated with anti-tracking adhesive.
Features:
• Manufactured from polyolefin, coated with anti-tracking adhesive.
• High creep resistance and anti-tracking property
• Shaped components to meet a range of requirements
Applications:
Used to Sealing and protecting the critical connection between lead wire and anode
Technical Parameters:
| Property |
Test Method |
Standard Value |
| Cold Bend |
ASTM-D-2671 |
No cracking |
| Tensile Strengtt |
ASTM-D-638 |
≥8MPa |
| Elongation at Break |
ASTM-D-638 |
≥300% |
| Tensile Strength after Aging |
ASTM-D-638 |
≥6MPa(130℃,168 hrs) |
| Elongation at Break after Aging |
ACTM-D-638 |
≥240%(130℃,168 hrs) |
| Dielectric Strengt |
IEC 60243 |
≥20kV/mm |
| Tracking Resistance |
IEC 60587 |
1A 3.5 |
| Volume Resistivity |
EC 60093 |
≥1×10^14Ω·cm |
| Dielectric Constant |
IEC 60250 |
≤5.0 |
| Water Absorption |
SO 62 |
≤0.5% |
| Fccentricity |
ASTM-D-2671 |
≤35% |
Select Table:

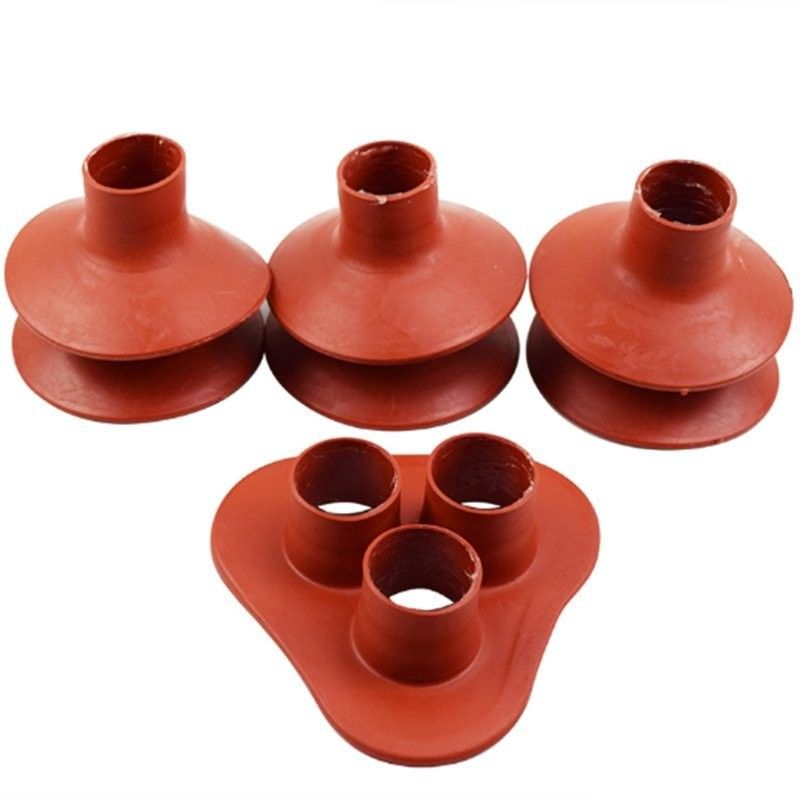

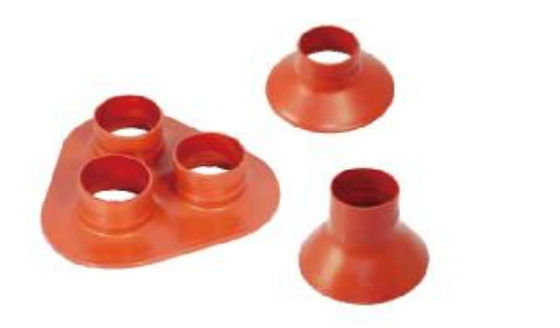

1-core Rain Shed
| Product No |
As Supplied
d(Min)(±3)/mm |
After Recovered
d/mm(Max) |
D/mm |
W/mm(±0.2) |
| WRSSQ-35/17 |
35 |
17 |
105 |
2.8 |
| WRSSQ-40/24 |
40 |
24 |
105 |
2.6 |
| WRSSQ-50/24 |
50 |
24 |
105 |
2.6 |
| WRSSQ-60/32 |
60 |
32 |
140 |
4 |
| WRSSQ-70/32 |
70 |
32 |
140 |
4 |
| WRSSQ-80/32 |
80 |
32 |
140 |
4 |
3-core Rain Shed
| Product No |
As Supplied
d(Min)(±3)/mm |
After Recovered
d/mm(Max) |
W/mm(±0.2) |
| WRSSQ-35/15 |
35 |
16 |
2.8 |
| WRSSQ-45/21 |
45 |
22 |
3 |
| WRSSQ-50/21 |
50 |
22 |
3 |
Customization:
Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
