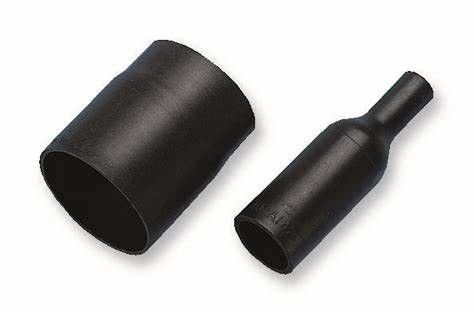

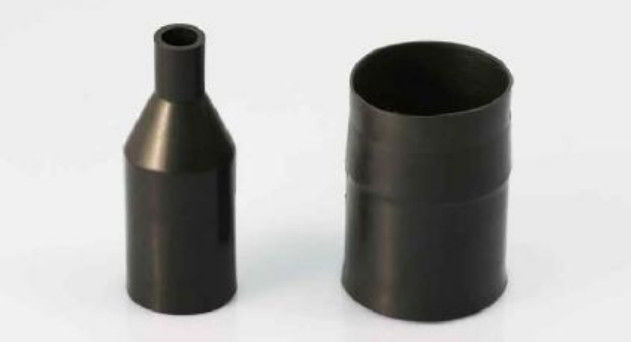

Product Description:
Made of semi-rigid flame-retarded polyolefin.
Features:
• Made of semi-rigid flame-retarded polyolefin.
• Used for strong mechanical protection,connector/cable strain relief,and complete environmental sealing.
• This family of boots has no lip.
• Provided with or without adhesive lining.
• Standard colour:Black
Applications:
Mostly used to provide sealing and protection for bifurcated cable,especially for the branch cable lapping on the main cable
| Product No. |
Specification |
D1 |
D2 |
L ±10% |
L1 ±10% |
L2 ±10% |
∂ ±20% |
| As Supplied |
After Recovered |
Range of Application |
As Supplied |
After Recovered |
Range of Application |
| Z1111 |
11/5-2 |
11 |
5.0 |
6.6-9.0 |
11 |
2.0 |
2.2-5.6 |
40 |
21 |
12 |
1.8 |
| Z112 |
18/7-4 |
18 |
7.0 |
8.8-15.0 |
18 |
4.0 |
5.0-10.0 |
50 |
19 |
28 |
20.0 |
| Z1131 |
24/11-5.6 |
24 |
11.0 |
14.0-20.0 |
24 |
5.6 |
7.0-14.0 |
50 |
27 |
16 |
2.0 |
| Z1141 |
30/14.3-6.6 |
30 |
14.3 |
17.8-25.0 |
30 |
6.6 |
8.2-16.0 |
60 |
39 |
16 |
2.0 |
| Z1151 |
32/17.8-7.2 |
32 |
17.8 |
22.3-27.0 |
32 |
7.2 |
9.0-18.0 |
68 |
40 |
18 |
2.2 |
| Z1161 |
40/22.4-8.4 |
40 |
22.4 |
26-32.0 |
40 |
8.4 |
10.0-21.0 |
82 |
52 |
20 |
2.2 |
| Z1171 |
46/28-10 |
46 |
28.0 |
32-36.0 |
46 |
10.0 |
11.8-24.0 |
85 |
45 |
20 |
2.5 |
unit mm
Customization:
Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
