Product Description:

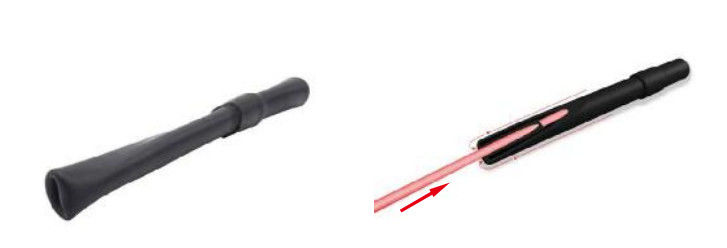

"roll-on" way to insulate and seal cable connections up to 1kV
Features:
·"roll-on" way to insulate and seal cable connections up to 1kV
·Made of EPDM rubber,resisting damage from exposure to moisture,ozone,fungus and temperature extremes from -60℃ to 150℃
·Dual-wall design with an entrapped lubricant,making installation fast and simple
·Rolls on the cable with minimal effort,even at temperature below -25℃
·Environmental protection standards: RoHS
·Reusable
Selection Table:
| Product No. |
Tube length
±5/mm |
Application range |
| Cable size/mm2 |
Cabel outer diameter/mm |
Connection length/mm |
| WEYB-14 |
155 |
95-185 |
2 ～ 20 |
≤100 |
| WEYB-18 |
280 |
240-400 |
18 ～ 28 |
≤200 |
| WEYB-25 |
320 |
500-800 |
26 ～ 38 |
≤230 |
Technical Data:
| Property |
Test Method |
Standard Value |
| Tensle Strengtt |
ISO 37 |
≥6.5MPa |
| Elongation at Break |
ISO 34 |
≥500% |
| Water Absorption |
ISO 62 |
≤0.5% |
| Flammability |
GB/T 10707-2008 |
≤35mm/min |
| Dielectric Strengtr |
IEC 60243 |
≥20kV/mm |
| Volume Resistivity |
ASTM-D-2303 |
≥1×10^13Ω·cm |
Customization:
Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
