Product Description:

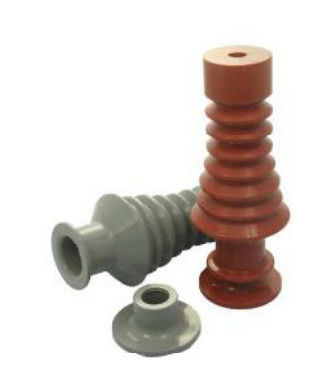

Longchuang elastomeric insulating boots are molded parts which fit over the connection between the cable lug and the inline or right-angled bushing to improve phase-to-phase and phase-to-ground insulation. They are used in switchgears and transformers where the clearances
Features:
Made of silicone rubber.
Collar is optional for use where the bushing size is smaller.
Offering tailor-made solutions against specific requirements(size, color).
Connection can be energized immediately after installation.
Excellent tracking and erosion resistance.
Removable and re-installable.
Fast and simple installation.
Unlimited shelf life .

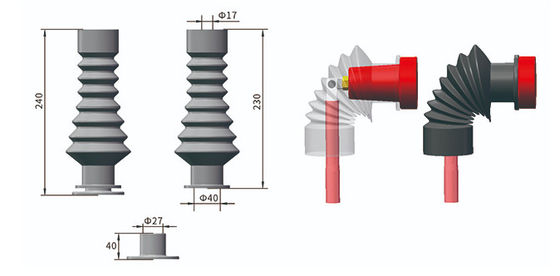

Selection Table:
| Product No. |
Tube length
±5/mm |
Application range |
| Cable size/mm2 |
Cabel outer diameter/mm |
Connection length/mm |
| WEYB-14 |
155 |
95-185 |
2 ～ 20 |
≤100 |
| WEYB-18 |
280 |
240-400 |
18 ～ 28 |
≤200 |
| WEYB-25 |
320 |
500-800 |
26 ～ 38 |
≤230 |
Technical Data:
| Maximum System Voltage |
17.5kV |
| Basic Impulse Level |
95kV |
| Collar Size |
27mm |
| Bushing Diamete |
31-45mm |
| Bushing Types |
250A/630A |
| Cable Cross Section |
35-400mm2 |
Packaging and delivery
According to the tubing's size
Packing size:46*46*47cm
Any ports of China
Customization:
Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
