Customizable Specifications Heat Shrink Tubing ,Print Text and Picture,Small Package Flexible Heat Shrink Sleeve
Product Descripton:

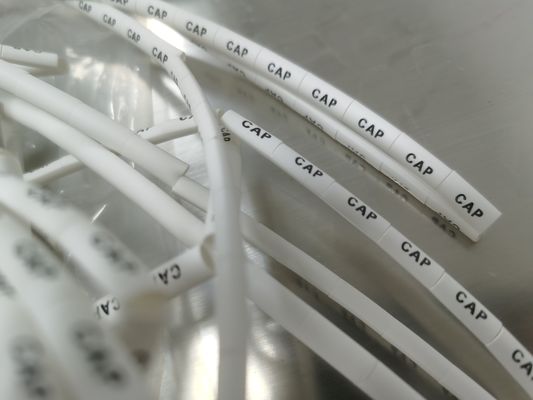

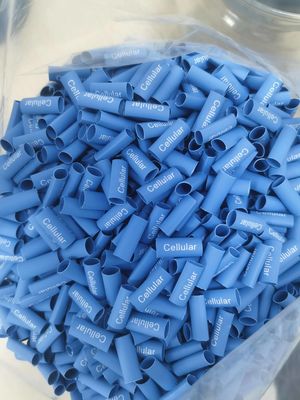

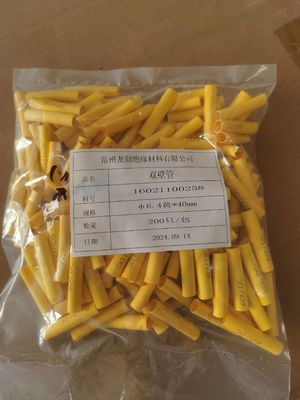

Heat shrink identification tubing
RoHS,Halogen Free. organization kit and using color coded heat shrink tubing. assembled kit
Features:
Heat shrink identification tubing
● Good abrasion resistant and anti-skid performance
● High flexibility
● Quick installation
● Continuous operating temperature:-55℃-125℃
● Shrink temperature: started at 70℃, full recovery at 110℃
● Standard color: Black, Red, Yellow, Green, Blue
Technical Data:
Heat shrink identification tubing
Dimension:
Size
(mm) |
Expanded(mm) |
Recovered (mm) |
Standard Package
Meter/spool |
Round/Flat |
| Inner Diameter |
Inner Diameter |
Wall Thickness |
| 1.0 |
1.0±0.2 |
≤0.6 |
0.20±0.05 |
200 |
Round |
| 1.5 |
1.5±0.2 |
≤0.9 |
0.20±0.05 |
200 |
Round |
| 2.0 |
2.0±0.2 |
≤1.3 |
0.20±0.05 |
200 |
Round |
| 2.5 |
2.5±0.2 |
≤1.5 |
0.20±0.05 |
200 |
Round |
| 3.0 |
3.0±0.2 |
≤1.8 |
0.20±0.05 |
200 |
Round |
| 3.5 |
3.5±0.2 |
≤2.0 |
0.20±0.05 |
100 |
Round |
| 4.0 |
4.0±0.3 |
≤2.5 |
0.25±0.05 |
100 |
Round |
| 4.5 |
4.5±0.3 |
≤2.8 |
0.25±0.05 |
100 |
Round |
| 5.0 |
5.0±0.3 |
≤3.0 |
0.25±0.05 |
100 |
Round |
| 6.0 |
6.0±0.3 |
≤3.8 |
0.25±0.05 |
100 |
Round |
| 7.0 |
7.0±0.3 |
≤4.0 |
0.25±0.05 |
100 |
Round |
| 8.0 |
8.0±0.3 |
≤4.8 |
0.30±0.05 |
1 |
Flat |
| 9.0 |
9.0±0.3 |
≤5.0 |
0.30±0.05 |
1 |
Flat |
| 10.0 |
10±0.3 |
≤5.8 |
0.30±0.05 |
1 |
Flat |
| 11.0 |
11±0.3 |
≤6.4 |
0.30±0.05 |
1 |
Flat |
| 12.0 |
12±0.3 |
≤7.0 |
0.30±0.05 |
1 |
Flat |
| 13.0 |
13±0.3 |
≤7.5 |
0.35±0.05 |
1 |
Flat |
| 14.0 |
14±0.3 |
≤8.0 |
0.35±0.05 |
1 |
Flat |
| 15.0 |
15±0.3 |
≤8.5 |
0.40±0.05 |
1 |
Flat |
| 16.0 |
16±0.3 |
≤9.0 |
0.40±0.05 |
1 |
Flat |
Packaging and delivery:
Packing size:19.6*13.2*3.6cm
Delivery: Any ports of China
Customization:
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details, message supplier
