Features:

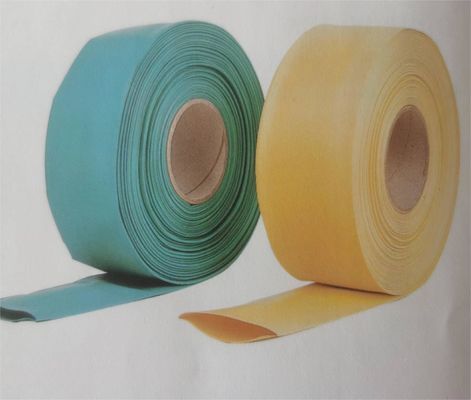

Manufactured from cross-linked polyolefin

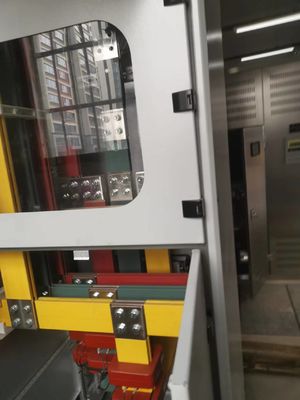

Used to offer insulation protection for busbar in switchgear and substation
Protects against short circuit and electrical leakage cause by small animals
Reduces busbar clearance requirements
Shrink temperature: start at 70℃, and fully recovered at 125℃
RoHS compliant

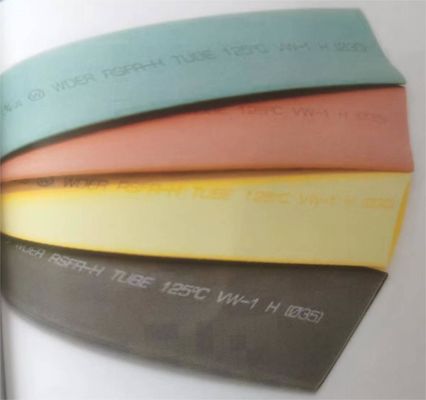

Color: Green, Blue, Black
Technical Parameters:
Dimensions:
1kv WMPG Series
| Product No. |
Busbar Width |
As Supplied/mm |
After Recovered/mm |
Standard Package |
| (Square)/mm |
ID(Min) |
Wall Thickness |
ID(Max) |
Wall Thickness |
(m/roll) |
| 1kV WMPG 30 |
30 |
31.5±1.0 |
0.50±0.15 |
≤15 |
0.95±0.15 |
50 |
| 1kV WMPG 35 |
35 |
36.5±1.5 |
0.50±0.15 |
≤18 |
1.00±0.15 |
50 |
| 1kV WMPG 40 |
40 |
41.5±1.5 |
0.55±0.15 |
≤20 |
1.00±0.15 |
25 |
| 1kV WMPG 45 |
45 |
41.5±1.5 |
0.55±0.15 |
≤23 |
1.00±0.15 |
25 |
| 1kV WMPG 50 |
50 |
51.0±2.0 |
0.55±0.15 |
≤25 |
1.00±0.15 |
25 |
| 1kV WMPG 60 |
60 |
60.0±3.0 |
0.60±0.20 |
20 |
1.30±0.20 |
25 |
| 1kV WMPG 65 |
65 |
65.0±3.0 |
0.60±0.20 |
≤33 |
1.30±0.20 |
25 |
| 1kV WMPG 70 |
70 |
70.0±3.0 |
0.65±0.20 |
≤35 |
1.30±0.20 |
25 |
| 1kV WMPG 75 |
75 |
75.0±3.0 |
0.65±0.20 |
≤38 |
1.30±0.20 |
25 |
| 1kV WMPG 80 |
80/100 |
80.0±3.0 |
0.65±0.20 |
≤40 |
1.46±0.20 |
25 |
| 1kV WMPG 85 |
80/100 |
85.0±3.0 |
0.65±0.20 |
≤43 |
1.46±0.20 |
25 |
| 1kV WMPG 90 |
100 |
90.0±4.0 |
0.65±0.20 |
≤45 |
1.46±0.20 |
25 |
| 1kV WMPG 100 |
100/120 |
100.0±4.0 |
0.65±0.20 |
≤50 |
1.46±0.20 |
25 |
| 1kV WMPG 120 |
150 |
20.0±4.0 |
0.65±0.20 |
≤60 |
1.46±0.20 |
25 |
| 1kV WMPG 150 |
180 |
150.0±4.0 |
0.65±0.20 |
≤75 |
1.46±0.20 |
25 |
| 1kV WMPG 180 |
MAX |
180.0±4.0 |
0.65±0.20 |
≤90 |
1.46±0.20 |
25 |
| 1kV WMPG 210 |
MAX |
210.0±4.0 |
0.65±0.20 |
≤105 |
1.46±0.20 |
25 |
| 1kV WMPG 230 |
MAX |
230.0±4.0 |
0.65±0.20 |
≤115 |
1.46±0.20 |
25 |
| 1kV WMPG 250 |
MAX |
250.0±5.0 |
0.65±0.20 |
≤125 |
1.46±0.20 |
25 |
| 1kV WMPG 300 |
MAX |
300.0±5.0 |
0.65±0.20 |
≤150 |
1.46±0.20 |
25 |
Packaging and delivery
Packing size:46*46*45cm
Delivery: Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details, message supplier
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
