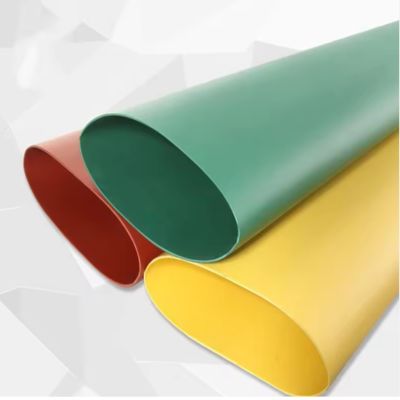

Features:
Manufactured from cross-linked polyolefin
Used to offer insulation protection for busbar in switchgear and substation
Protects against short circuit and electrical leakage cause by small animals
Reduces busbar clearance requirements
Shrink temperature: start at 70℃, and fully recovered at 125℃
RoHS compliant

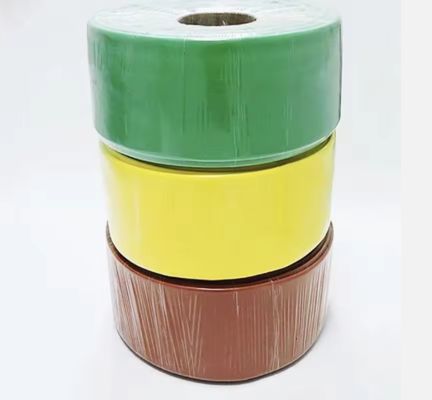

Color: yellow, red, green, blue, black
Technical Parameters:
Dimensions:
10kv WMPG Series
| Product No. |
Busbar Width |
As Supplied/mm |
After Recovered/mm |
Standard Package |
| (Square)/mm |
ID(Min) |
Wall Thickness |
ID(Max) |
Wall Thickness |
(m/roll) |
| 10kV WMPG 15/8 |
15/12 |
15.0±0.8 |
1.20±0.30 |
≤8 |
2.10±0.30 |
25 |
| 10kV WMPG 20/10 |
20/15 |
20.0±0.8 |
1.20±0.30 |
≤105 |
2.10±0.30 |
25 |
| 10kV WMPG 25/12 |
25/18 |
25.0±0.8 |
1.20±0.30 |
≤12.5 |
2.10±0.30 |
25 |
| 10kV WMPG 30/15 |
32/20 |
30.0±0.8 |
1.20±0.30 |
≤15 |
2.10±0.30 |
25 |
| 10kV WMPG 40/20 |
40/30 |
40.0±1.0 |
1.20±0.30 |
≤20 |
2.30±0.30 |
25 |
| 10kV WMPG 50/25 |
50/35 |
50.0±3.0 |
1.20±0.30 |
≤25 |
2.30±0.30 |
25 |
| 10kV WMPG 60/30 |
60/45 |
60.0±3.0 |
1.20±0.30 |
≤30 |
2.30±0.30 |
25 |
| 10kV WMPG 65/33 |
65/45 |
65.0±3.0 |
1.20±0.30 |
≤33 |
2.30±0.30 |
25 |
| 10kV WMPG 70/35 |
70/50 |
70.0±3.0 |
1.20±0.30 |
≤35 |
2.30±0.30 |
25 |
| 10kV WMPG 75/38 |
75/50 |
75.0±3.0 |
1.20±0.30 |
≤38 |
2.30±0.30 |
25 |
| 10k VWMPG 80/40 |
80/55 |
80.0±3.0 |
1.20±0.30 |
≤40 |
2.30±0.30 |
25 |
| 10kV WMPG 85/43 |
80/65 |
85.0±3.0 |
1.20±0.30 |
≤43 |
2.40±0.30 |
25 |
| 10kV WMPG 100/50 |
100/75 |
00.0±4.0 |
1.20±0.30 |
≤50 |
2.40±0.30 |
25 |
| 10kV WMPG 120/60 |
120/85 |
120.0±4.0 |
1.20±0.30 |
≤60 |
2.40±0.30 |
25 |
| 10kV WMPG 150/75 |
150/105 |
150.0±4.0 |
1.20±0.30 |
≤75 |
2.40±0.30 |
25 |
| 10kV WMPG 180/90 |
180/120 |
180.0±5.0 |
1.20±0.30 |
≤90 |
2.40±0.30 |
25 |
| 10kV WMPG 210/105 |
210/140 |
210.0±5.0 |
1.20±0.40 |
≤105 |
2.40±0.30 |
20 |
| 10kV WMPG 230/115 |
230/150 |
230.0±5.0 |
1.20±0.40 |
≤115 |
2.40±0.30 |
20 |
| 10kV WMPG 250/125 |
250/180 |
250.0±5.0 |
1.20±0.40 |
≤125 |
2.40±0.30 |
20 |
| 10k VWMPG 300/150 |
300/210 |
300.0±5.0 |
1.20±0.40 |
≤150 |
2.40±0.30 |
15 |

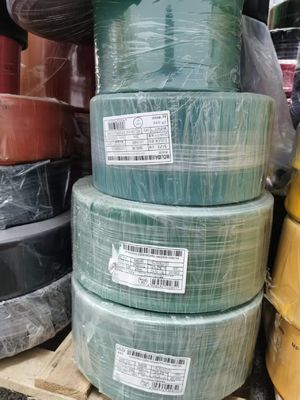

Packaging and delivery
Packing size:46*46*45cm
Delivery: Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details, message supplier
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
