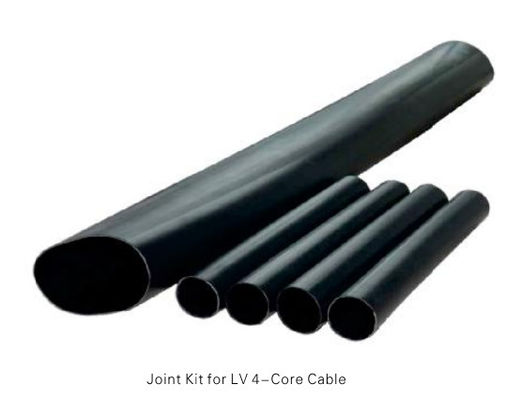

Product Description:
The Heat Shrink Joints for LV Cables are designed for 1-,2-,3-,4-and 5-core cables with or without armour.
The joints are also applicable to 3+1,4+1 and 3+2 cables.
The connectors are insulated and sealed with adhesive coated insulation tubes.
The outer tube provides mechanical protection and chemical resistance as expected from cable oversheath.
All joints are designed to allow crossing of cable cores.
Features:
• Manufactured from cross-linked polyolefin
• Flame-retardant breakouts are available upon customer request
• Meeting with varieties of configuration requirements
• Shrink temperature: start at 90°C, and fully recovered at 130°C.
Selection Table:
| Voltage |
Cores |
Cross Selection/mm2 |
Kit No |
| 0.6/1(1.2)kV |
1,2,3,4,5 |
4-6 |
0.6/1kVRSJ-4(5,3,2,1)/(-1) |
| 10-16 |
0.6/1kVRSJ-4(5,3,2,1)/0 |
| 25-50 |
0.6/1kVRSJ-4(5,3,2,1/1 |
| 70-120 |
0.6/1kVRSJ-4(5,3,2,1)/2 |
| 150-240 |
0.6/1kVRSJ-4(5,3,2,1)/3 |
| 300-400 |
0.6/1kVRSJ-4(5,3,2,1)/4 |
Note:
Joints and components for other cable types are available on request.
Solderless earth connection system for armoured cables is available on request.
Connectors and other accessories need to be ordered separately.
Applications:
It is suitable for sealing insulation protection at the branch of multi-core cable, easy operation, reliable performance and long service life. It is generally used with 1KV, 10KV, 35KV heat shrinkable indoor cable terminals or outdoor cable terminals.
Customization:
Customized logo
Min. order: 10
Customized packaging
Min. order: 10
Graphic customization
Min. order: 10
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
