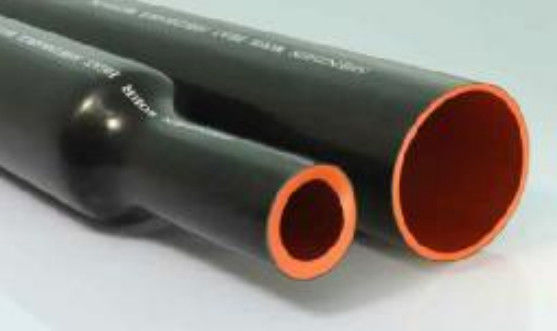

Product Description:
Suitable for applications in medium voltage cable joints up to 42 kV
Features:
• The red inner layer is made of insulation material to provide good insulation
• The black outer layer is made of semi-conductive material to provide electrical shielding
• Suitable for applications in medium voltage cable joints up to 42 kV
• Shrink temperature: start at 90°C, and fully recovered at 130°C.
Selection Table:
| Product No |
Inner Diameter/mm |
After Recovered Wall Thickness/mm |
Standard Length/mm |
| As supplied(Min) |
After Recovered(Max) |
Total(±0.3) |
Red layer(±0.2) |
Black layer(±0.1) |
| WDWT-30/12 |
30 |
12 |
5.8 |
5 |
0.8 |
 300-1000 |
| WDWT-35/13 |
35 |
13 |
5.8 |
5 |
0.8 |
300-1000 |
| WDWT-45/16 |
45 |
16 |
5.8 |
5 |
0.8 |
300-1000 |
| WDWT-50/16 |
50 |
16 |
5.8 |
5 |
0.8 |
300-1000 |
| WDWT-55/20 |
55 |
20 |
5.8 |
5 |
0.8 |
300-1000 |
| WDWT-60/20 |
60 |
20 |
5.8 |
5 |
0.8 |
300-1000 |
| WDWT-65/26 |
65 |
26 |
5.8 |
5 |
0.8 |
300-1000 |
| WDWT-85/29 |
85 |
29 |
7.3 |
6.5 |
0.8 |
300-1000 |
| WDWT-90/29 |
90 |
29 |
7.3 |
6.5 |
0.8 |
300-1000 |
| WDWT-100/37 |
100 |
37 |
7.3 |
6.5 |
0.8 |
300-1000 |
| WDWT-120/45 |
120 |
45 |
7.3 |
6.5 |
0.8 |
300-1000 |
Technical Data:
Inner Insulation Layer(Red)
| Property |
Test Method |
Standard Value |
| Tensile Strength |
ASTM-D-638 |
≥12MPa |
| Elongation at Break |
ACTM-D-638 |
≥400% |
| Tensile Strength after Aging |
ASTM-D-638 |
≥10MPa(130℃,168 hrs) |
| Elongation at Break after Aging |
ASTM-D-638 |
≥320%(130℃,168 hrs) |
| Dielectric Strength |
IEC 60243 |
≥25kV/mm |
| Longitudinal Shrinkage |
ASTM-D-2671 |
≤10% |
| Volume Resistivity |
EC 60093 |
≥1×10^14Ω·cm |
| Eccentricity |
ASTM-D-2671 |
≤30% |
| Water Absorption |
ISO 62 |
≤0.5% |
Outer Semi-conductive Layer(Black)
| Property |
Test Method |
Standard Value |
| Tensile Strength |
ASTM-D-638 |
≥10MPa |
| Elongation at Break |
ACTM-D-638 |
≥300% |
| Tensile Strength after Aging |
ASTM-D-638 |
≥8MPa(130℃,168 hrs) |
| Elongation at Break after Aging |
ASTM-D-638 |
≥240%(130℃,168 hrs) |
| Longitudinal Shrinkage |
ASTM-D-2671 |
≤10% |
| Volume Resistivity |
EC 60093 |
≥1×10^14Ω·cm |
| Eccentricity |
ASTM-D-2671 |
≤30% |
| Water Absorption |
ISO 62 |
≤0.5% |
Customization:
Customized logo
Min. order: 10
Customized packaging
Min. order: 10
Graphic customization
Min. order: 10
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China
