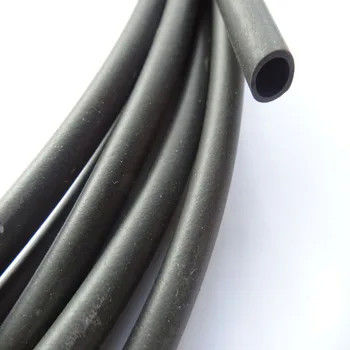

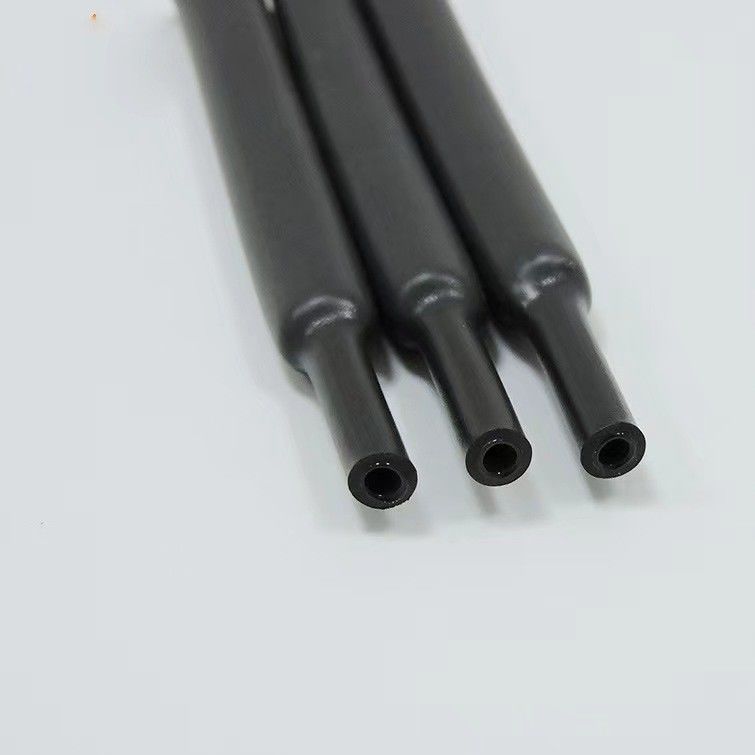

Heat Shrink Protective Tube For LV Cable Joints and Teminations

Product Description:

Manufactured from cross linked polyolefin. Providing outer sealing protection for power cable joints up to 42kV. Used in 1kV cable joints and terminations to provide electrical insulation (φ50 and below)

Features:

• Manufactured from cross-linked polyolefin
• Providing outer sealing protection for power cable joints up to 42kV.
• Used in 1kV cable joints and terminations to provide electrical insulation (φ50 and below)

• Outstanding abrasion and chemical resistance

• Inner coated with adhesive at both ends.Tubes inner coated with adhesive at full length are available upon customer request.
• Shrink temperature: start at 90°C, and fully recovered at 130°C.

• Color:black,red,yellow,blue,green(∅50 and below;black only above ∅50).Other colors are available upon customer request.



Selection Table:

Product No	Inner Diameter/mm		After Recovered Wall Thickness/mm	Standard Cut Length/mm	Standard Continuous Length(m/roll)
	As supplied(Min)	After Recovered(Max)
WRSHG-10/5	10	5	1.3±0.2	275-1000	25
WRSHG-15/6	15	6	1.2±0.2	275-1000	25
WRSHG-20/8	20	8	1.7±0.2	275-1000	25
WRSHG-30/11	30	11	1.8±0.2	275-1000	25
WRSHG-35/13	35	13	2.0±0.2	275-1000	25
WRSHG-40/17	40	17	2.2±0.2	275-1000	25
WRSHG-45/17	45	17	2.2±0.2	275-1000	25
WRSHG-50/22	50	22	2.6±0.2	800-1200	25
WRSHG-60/22	60	22	2.6±0.2	800-1200	25
WRSHG-80/29	80	29	2.9±0.2	800-1200	25
WRSHG-85/29	85	29	2.9±0.2	800-1200	25
WRSHG-100/38	100	38	3.1±0.2	800-1200	15
WRSHG-120/45	120	45	3.1±0.2	800-1200	15
WRSHG-140/49	140	49	3.6±0.3	800-1200	15
WRSHG-160/56	160	56	3.6±0.3	800-1200	15
WRSHG-180/61	180	61	3.9±0.3	800-1200	15
WRSHG-200/70	200	70	4.4±0.3	800-1200	15
WRSHG-225/70	225	70	4.4±0.3	800-1200	15
WRSHG-240/89	240	89	4.4±0.3	800-1200	15
WRSHG-290/100	290	100	4.4±0.3	800-1200	15
WRSHG-350/152	350	152	3.0±0.4	800-1200	15
WRSHG-400/171	400	171	3.0±0.4	800-1200	15
WRSHG-450/210	450	210	3.2±0.4	800-1200	15
WRSHG-500/210	500	210	3.2±0.4	800-1200	15
WRSHG-600/210	600	210	3.9±0.4	800-1200	15





Technical Data:

Customization:

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
