Product Description:

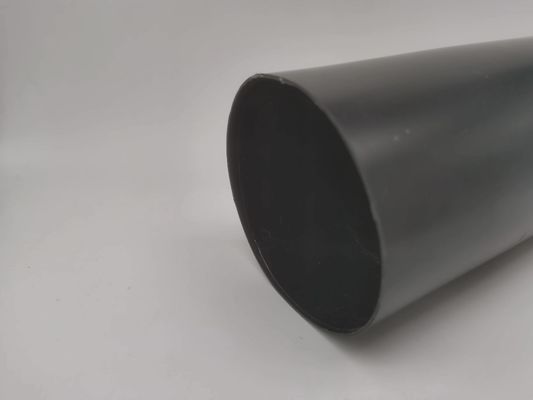

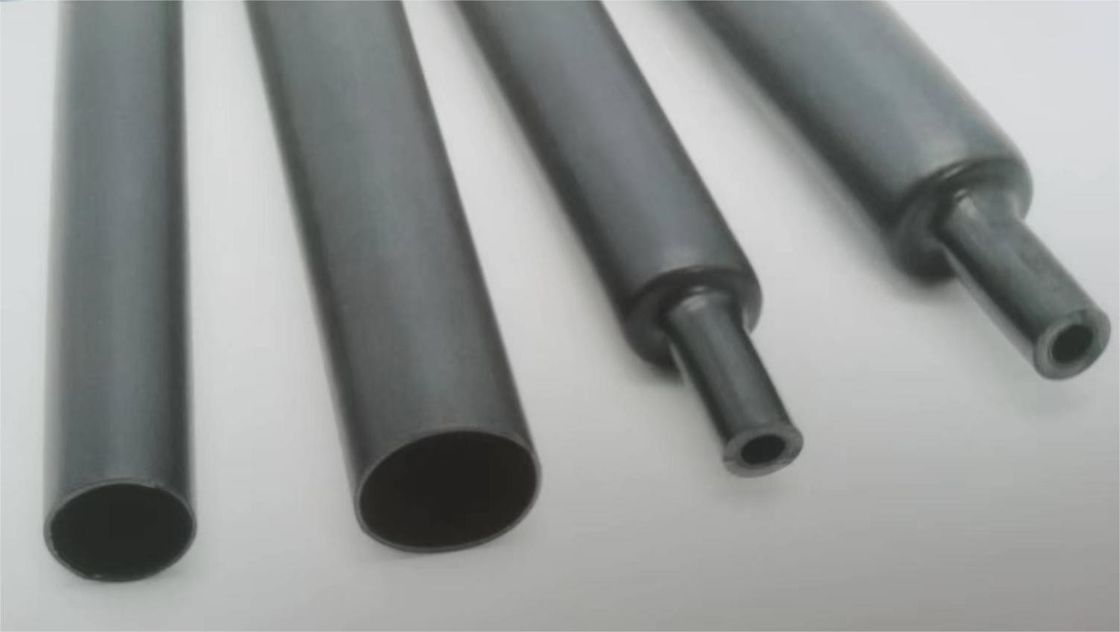

Adhesive-lined medium wall heat shrinkable tube is produced by high quality polyolefin and hot melt adhesive through
double-layer co-extrusion process.The outer layer of this tube has high physical and chemical properties,and good contraction,and so on.
Medium wall heat shrinkable tubing suitable for a variety of low voltage electrical and mechanical application,where lighter weight and greater flexibility are important.
Features:
- 3:1 shrink ratio
- Excellent waterproof, moisture proof , sealing and insulating performance
- Flame Retardant
- Anti-UV light
- Will not split or rupture during installation, when overheated
- Continuous operating temperature: -45℃ to 110℃
- Fully shrink temperature: 125℃
- Thermoplastic adhesive liner for complete environmental protection and insulation
- Standard color: Black
10.Environmental standards: RoHS
11. Withstands severe mechanical requirements Rated for 600V,90℃,continuous use
Applications:
It is mainly used for sealing and insulation protection of medium and low voltage power cable terminal or middle connection, insulation protection of all kinds of bus bars, and other working environments to prevent corrosion, moisture-proof and mechanical seal.
Dimensions:
| Size |
Expanded(mm) |
After Recovery(mm) |
Standard Package |
| mm |
Inter Diameter |
Inter Diameter |
Jacket Thickness |
Adhesive Thickness |
Total Wall Thickness |
(M/pc) |
| 8.0/2.0 |
≥8.0 |
≤2.0 |
1.80±0.30 |
0.45±0.20 |
2.35±0.70 |
1.22 |
| 9.0/3.0 |
≥9.0 |
≤3.0 |
2.00±0.30 |
0.50±0.20 |
2.55±0.40 |
1.22 |
| 13.0/4.0 |
≥13.0 |
≤4.0 |
2.30±0.30 |
0.50±0.20 |
2.85±0.40 |
1.22 |
| 16.0/5.0 |
≥16.0 |
≤5.0 |
2.30±0.30 |
0.55±0.20 |
2.90±0.50 |
1.22 |
| 22.0/6.0 |
≥22.0 |
≤6.0 |
2.50±0.40 |
0.60±0.20 |
3.10±0.50 |
1.22 |
| 28.0/6.0 |
≥28.0 |
≤6.0 |
2.70±0.40 |
0.60±0.25 |
3.40±0.50 |
1.22 |
| 33.0/8.0 |
≥33.0 |
≤8.0 |
2.80±0.40 |
0.60±0.25 |
3.60±0.60 |
1.22 |
| 38.1/12.0 |
≥38.1 |
≤12.0 |
3.10±0.50 |
0.65±0.25 |
3.90±0.60 |
1.22 |
| 43.2/12.0 |
≥43.2 |
≤12.0 |
3.50±0.50 |
0.80±0.25 |
4.30±0.70 |
1.22 |
| 55.0/16.0 |
≥55.0 |
≤16.0 |
3.60±0.50 |
0.80±0.25 |
4.40±0.70 |
1.22 |
| 65.0/19.0 |
≥65.0 |
≤19.0 |
3.60±0.50 |
0.80±0.25 |
4.40±0.70 |
1.22 |
| 75.0/22.0 |
≥75.0 |
≤22.0 |
3.60±0.50 |
0.80±0.25 |
4.40±0.70 |
1.22 |
| 85.0/25.0 |
≥85.0 |
≤25.0 |
3.60±0.50 |
0.80±0.25 |
4.40±0.70 |
1.22 |
| 95.0/30.0 |
≥95.0 |
≤30.0 |
3.60±0.50 |
0.80±0.25 |
4.40±0.70 |
1.22 |
| 105.0/30.0 |
≥105.0 |
≤30.0 |
3.80±0.60 |
0.80±0.25 |
4.60±0.70 |
1.22 |
| 120.0/39.0 |
≥120.0 |
≤39.0 |
3.80±0.60 |
0.80±0.25 |
4.60±0.70 |
1.22 |
| 130.0/40.0 |
≥130.0 |
≤40.0 |
3.80±0.60 |
0.80±0.25 |
4.60±0.70 |
1.22 |
| 140/42.0 |
≥140.0 |
≤42.0 |
3.80±0.60 |
0.80±0.25 |
4.60±0.70 |
1.22 |
| 160/50.0 |
≥160.0 |
≤50.0 |
3.80±0.60 |
0.80±0.25 |
4.60±0.70 |
1.00 |
| 180/58.0 |
≥180.0 |
≤60.0 |
3.80±0.60 |
0.80±0.25 |
4.60±0.70 |
1.00 |
| 200.0/69.0 |
≥200.0 |
≤69.0 |
3.80±0.60 |
0.80±0.25 |
4.60±0.70 |
1.00 |
| 230.0/78.0 |
≥230.0 |
≤78.0 |
4.10±0.60 |
0.80±0.25 |
4.60±0.70 |
1.00 |
Technical Data:
| Property |
Test Method |
Stantard |
| Tensile Strength(Mpa) |
ASTM D2671 |
≥14 |
| Elongation(%) |
ASTM D2671 |
≥400
|
| Density(g/cm) |
ASTM D792 |
1.2 |
| Longitudinal change(%) |
UL224 |
≤±10 |
| Elongation after aging(%) |
UL224 158℃X168hrs |
≥300 |
| Heat shock |
UL224 225℃X4hrs |
No cracking |
| Dielectric strength(kv/mm) |
IEC 60243 |
≥20 |
| Volume resistivity(a·cm) |
IEC 60093 |
≥1×10^14 |
| Water absorption(%) |
ASTM-D570 |
≤0.5 |
Hot Melt Adhesive Property:
| Property |
Test Method |
Standard |
| Water Absorption |
ASTM D570 |
<0.2% |
| Sofening Point(℃) |
ASTM E28 |
95 |
| Strength of pearing(PE) |
ASTM D 1000 |
120N/25mm |
| Strength of pearing(AL) |
ASTM D 1000 |
80N/25mm |
Customization:
Customized logo
Min. order: 10
Customized packaging
Min. order: 10
Graphic customization
Min. order: 10
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size: 46*46*45cm
Port: Any port in China
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
