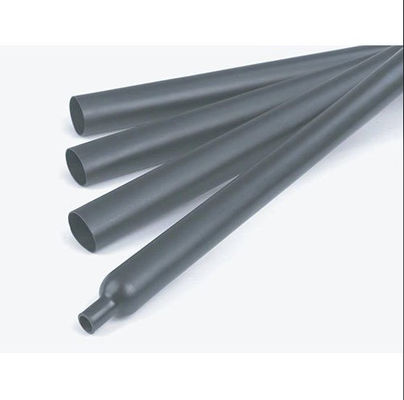

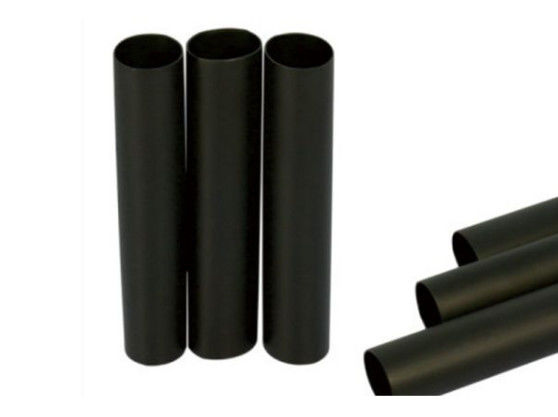

Product Description:
Manufactured from cross linked polyolefin. Providing effective electrical stress control for MV cable terminations and joints up to 42 kV
Features:
• Manufactured from cross-linked polyolefin
• Providing effective electrical stress control for MV cable terminations and joints up to 42 kV
• Continuous operation temperature:-40℃ to 100℃
• Shrink temperature: start at 90°C, and fully recovered at 130°C.
• Color:black.
Selection Table:
| Product No |
Inner Diameter/mm |
After Recovered Wall
Thickness(±0.2)/mm |
Standard
Cut Length/mm |
Standard Continuous
Length(m/roll) |
| As supplied(Min) |
After Recovered(Max) |
| 10kV WRSYL-30/11 |
30 |
11 |
2.0 |
100-1200 |
 25 |
| 10kV WRSYL-35/14 |
35 |
14 |
2.0 |
100-1200 |
25 |
| 10kV WRSYL-40/17 |
40 |
17 |
2.0 |
100-1200 |
25 |
| 10kV WRSYL-45/19 |
45 |
19 |
2.0 |
100-1200 |
25 |
| 10kV WRSYL-55/25 |
55 |
25 |
3.2 |
100-1200 |
15 |
| 10kV WRSYL-60/25 |
60 |
25 |
2.3 |
100-1200 |
15 |
| 10kV WRSYL-70/29 |
70 |
29 |
3.2 |
100-1200 |
15 |
| 20kV WRSYL Series |
| 20k WRSYL-35/14 |
35 |
14 |
2.0 |
100-1200 |
25 |
| 20kVWRSYL-40/17 |
40 |
17 |
2.0 |
300-120 |
25 |
| 20kVWRSYL-45/19 |
45 |
19 |
2.0 |
100-1200 |
25 |
| 20kVWRSYL-55/25 |
55 |
25 |
3.2 |
100-1200 |
15 |
| 20kVWRSYL-60/25 |
60 |
25 |
2.3 |
100-1200 |
15 |
| 20kVWRSYL-70/29 |
70 |
29 |
3.2 |
100-1200 |
15 |
| 30kV WRSYL Series |
| 30kVWRSYL-45/19 |
45 |
19 |
2.0 |
100-1200 |
15 |
| 30kVWRSYL-55/24 |
55 |
24 |
3.2 |
100-1200 |
15 |
| 30kVWRSYL-70/29 |
70 |
29 |
3.2 |
100-1200 |
15 |
| 30kVWRSYL-85/40 |
85 |
40 |
3.5 |
100-1200 |
15 |
| 30kVWRSYL-90/40 |
90 |
40 |
3.5 |
100-1200 |
15 |
| 35KV WRSYL Series |
| 35kVWRSYL-45/19 |
45 |
19 |
2.0 |
100-1200 |
15 |
| 35kVWRSYL-55/24 |
55 |
24 |
3.2 |
100-1200 |
15 |
| 35kVWRSYL-70/29 |
70 |
29 |
3.2 |
100-1200 |
15 |
| 35kVWRSYL-85/40 |
85 |
40 |
3.5 |
100-1200 |
15 |
| 35kVWRSYL-90/40 |
90 |
40 |
3.5 |
100-1200 |
5 |
Technical Data:
| Property |
Test Method |
Standard Value |
| Tensile Strength |
ASTM-D-638 |
≥10MPa |
| Elongation at Break |
ACTM-D-638 |
≥300% |
| Tensile Strength after Aging |
ASTM-D-638 |
≥8MPa(130℃,168 hrs) |
| Elongation at Break after Aging |
ASTM-D-638 |
≥240%(130℃,168 hrs) |
| Eccentricity |
ASTM-D-2671 |
≤30% |
| Volume Resistivity |
EC 60093 |
≥1×10^10Ω·cm |
| Dielectric Constant |
EC 60250/ASTM-D-150 |
15~25 |
| Water Absorption |
ISO 62 |
≤0.5% |
| Longitudinal Shrinkage |
ASTM-D-2671 |
≤5% |
Customization:
Customized logo
Min. order: 10
Customized packaging
Min. order: 10
Graphic customization
Min. order: 10
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
