6mm Silicone Coated Fibre Glass Sleeve Insulation Tubing

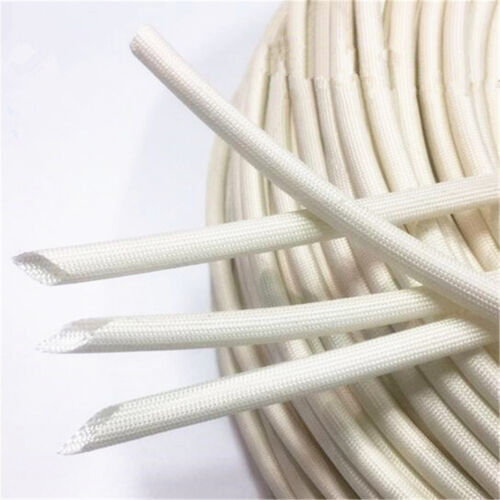

Large Image : 6mm Silicone Coated Fibre Glass Sleeve Insulation Tubing

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	LONG
Certification:	ISO9001
Model Number:	LC-SF-1
Document:	Glass fiber tube price.xlsx

Payment & Shipping Terms:

Minimum Order Quantity:	1 meter
Price:	USD 0.1
Packaging Details:	Carton
Delivery Time:	1-7days
Payment Terms:	T/T
Supply Ability:	3000 rolls / day

Contact Now

6mm Silicone Coated Fibre Glass Sleeve Insulation Tubing

Description

Execution Standard:	UL1441	Material:	Inner Braided Fiberglass Outside Silicone Rubber
Operating Temperature:	-55℃~200℃	Cold Bending:	No Cracks
Type:	Insulation Sleeving	Vertical Combustion:	VW-1
Color:	White, Black, Green, Red, Yellow, Orange	Environmental Standards:	RoHS, REACH
Highlight:	6mm Silicone Coated Fibre Glass Sleeve , Silicone Fiberglass Sleeving Insulation Tube , 6mm fiber glass tubing

Silicone fibre glass sleeve Insulation Tube Silicone Fiberglass Sleeving

Product Description

The inner fiber and outer rubber glass fiber tube is made of alkali-free glass fiber yarn woven blank tube, and then coated with silica gel by high temperature treatment. This product has the characteristics of flame retardant, wear resistance, tear resistance, soft and insulation, good mechanical performance and so on. It is mainly used in electronics, electrical appliances, automotive wiring harness, class H and class C motor, transformer, inverter, inductor, reactor, generator, heating lighting equipment and other field

Features

1.Two types: Inner fiberglass outside braided silicone rubber(SRG-N) Inner silicone rubber outside fiberglass braided(SRG-W)

2.Operating temperature:-55℃- 200℃

3.RoHS compliant; UL approved

4.Good flexibility, arc resistance, corona resistance

5.Standard color: white (Other colors upon request)

Applications

As heat insulation for cables and hoses in high heat areas.
Guarding control lines and hydraulic hoses against molten splash.
Protecting wires and cables in high temperature environments.
As a secondary electrical insulation layer and mechanical protection for high voltage cables.
Insulating hoses and small pipes to help reduce energy loss.
Abrasion protection for hoses and cables.

Dimensions

Size	Internal Diameter (mm)	Average Wall Thickness (mm)			Standard Package M/Spools
Size	Internal Diameter (mm)	1500V, 2500V	4000V	7000V	Standard Package M/Spools
0.5	0.5 ± 0.30	0.20 ± 0.10	0.40 ± 0.10	0.45 ± 0.10	200
1	1.0 ± 0.30	0.20 ± 0.10	0.40 ± 0.10	0.45 ± 0.10	200
1.5	1.5 ± 0.30	0.20 ± 0.10	0.40 ± 0.10	0.45 ± 0.10	200
2	2.0 ± 0.30	0.20 ± 0.10	0.40 ± 0.10	0.45 ± 0.10	200
2.5	2.5 ± 0.30	0.20 ± 0.10	0.40 ± 0.10	0.45 ± 0.10	200
3	3.0 ± 0.35	0.23 ± 0.10	0.47 ± 0.10	0.50 ± 0.10	100
3.5	3.5 ± 0.35	0.23 ± 0.10	0.47 ± 0.10	0.50 ± 0.10	100
4	4.0 ± 0.35	0.23 ± 0.10	0.47 ± 0.10	0.50 ± 0.10	100
4.5	4.5 ± 0.35	0.23 ± 0.10	0.47 ± 0.10	0.50 ± 0.10	100
5	5.0 ± 0.45	0.30 ± 0.10	0.50 ± 0.10	0.60 ± 0.10	100
6	6.0 ± 0.45	0.30 ± 0.10	0.50 ± 0.10	0.60 ± 0.10	100
7	7.0 ± 0.60	0.35 ± 0.10	0.50 ± 0.10	0.60 ± 0.10	100
8	8.0 ± 0.60	0.35 ± 0.10	0.50 ± 0.10	0.60 ± 0.10	100
9	9.0 ± 0.60	0.35 ± 0.10	0.50 ± 0.10	0.60 ± 0.10	50
10	10.0 ± 0.80	0.43 ± 0.10	0.55 ± 0.10	0.60 ± 0.10	50
12	12.0 ± 0.80	0.43 ± 0.10	0.55 ± 0.10	0.60 ± 0.10	50
13	13.0 ± 1.0	0.43 ± 0.10	0.55 ± 0.10	0.60 ± 0.10	50
14	14.0 ± 1.0	0.43 ± 0.10	0.55 ± 0.10	0.60 ± 0.10	50
18	18.0 ± 1.0	0.43 ± 0.10	0.55 ± 0.10	0.60 ± 0.10	25
20	20.0 ± 1.0	0.43 ± 0.10	0.55 ± 0.10	0.60 ± 0.10	25
25	25.0 ± 1.0	0.45 ± 0.10	0.60 ± 0.10	0.65 ± 0.10	25
30	30.0 ± 1.0	0.45 ± 0.10	0.60 ± 0.10	0.65 ± 0.10	25
35	35.0 ± 1.0	0.45 ± 0.10	0.60 ± 0.10	0.65 ± 0.10	25
40	40.0 ± 1.0	0.45 ± 0.10	0.60 ± 0.10	0.65 ± 0.10	25

Packaging and delivery

Packaging Details According to the tubing's size
Packing size:46*46*46cm

Port Any ports of China

Customization

Customized logo Customized packaging Graphic customization

MOQ: 100 MOQ: 100 MOQ: 100

For more customization details, message supplier

FAQ

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
