Product Details:
|
| Execution Standard: | UL1441 | Material: | Inner Braided Fiberglass Outside Silicone Rubber |
|---|---|---|---|
| Operating Temperature: | -55℃~200℃ | Cold Bending: | No Cracks |
| Type: | Insulation Sleeving | Vertical Combustion: | VW-1 |
| Color: | White, Black, Green, Red, Yellow, Orange | Environmental Standards: | RoHS, REACH |
| High Light: | Silicone Fiberglass Sleeving No cracks,Abrasion protection Silicone Fiberglass Sleeving,Abrasion protection silicone coated fiberglass sleeve |
||

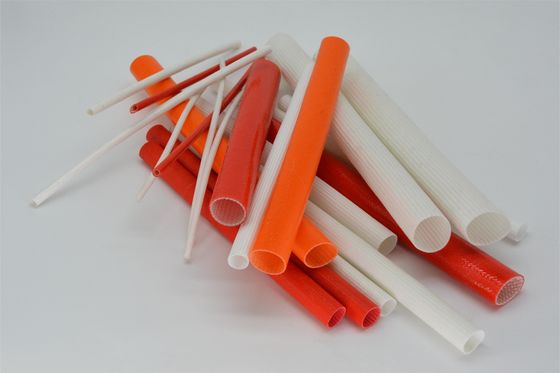

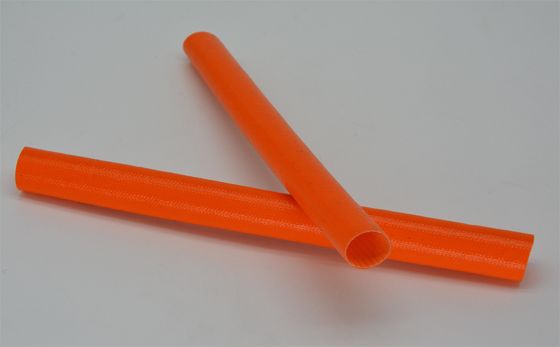

Silicone fibre glass sleeve Insulation Tube Silicone Fiberglass Sleeving
Product Description
Silicone fiberglass sleeving is a type of protective sleeve or tubing made from a combination of silicone rubber and fiberglass. It is designed to provide insulation, heat resistance, and mechanical protection in various applications.

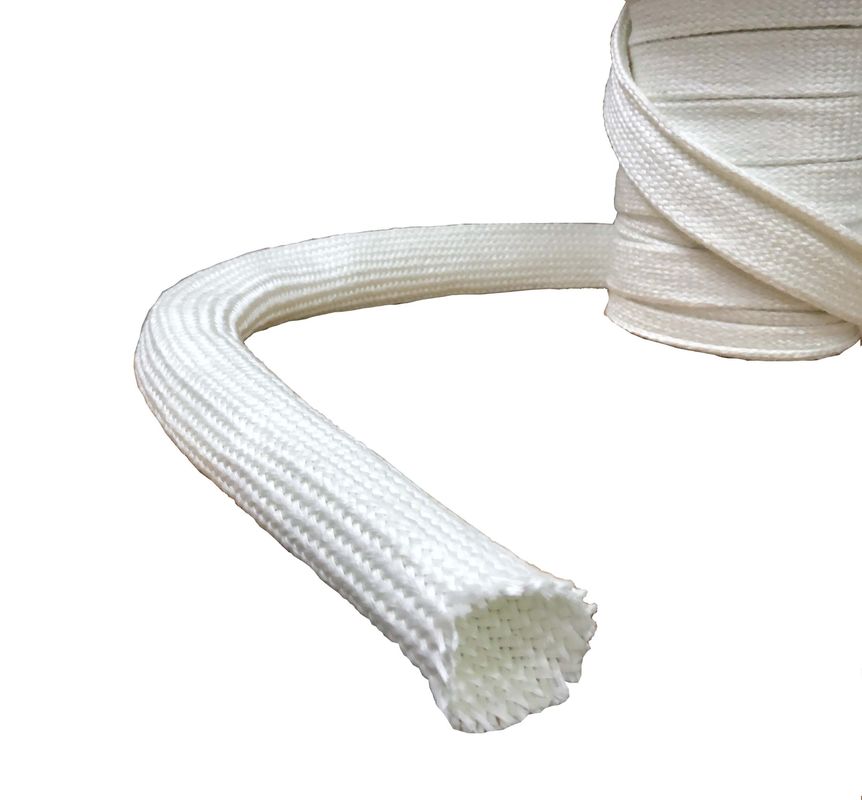

The sleeve is typically constructed with a braided or woven fiberglass outer layer and an inner layer of silicone rubber. The fiberglass layer provides excellent thermal insulation and resistance to high temperatures, while the silicone rubber layer offers flexibility, electrical insulation, and resistance to chemicals, moisture, and abrasion.
Applications
Dimensions
| Size | Internal Diameter (mm) | Average Wall Thickness (mm) | Standard Package M/Spools | ||
| 1500V, 2500V | 4000V | 7000V | |||
| 0.5 | 0.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 1 | 1.0 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 1.5 | 1.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 2 | 2.0 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 2.5 | 2.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 3 | 3.0 ± 0.35 | 0.23 ± 0.10 | 0.47 ± 0.10 | 0.50 ± 0.10 | 100 |
| 3.5 | 3.5 ± 0.35 | 0.23 ± 0.10 | 0.47 ± 0.10 | 0.50 ± 0.10 | 100 |
| 4 | 4.0 ± 0.35 | 0.23 ± 0.10 | 0.47 ± 0.10 | 0.50 ± 0.10 | 100 |
| 4.5 | 4.5 ± 0.35 | 0.23 ± 0.10 | 0.47 ± 0.10 | 0.50 ± 0.10 | 100 |
| 5 | 5.0 ± 0.45 | 0.30 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
| 6 | 6.0 ± 0.45 | 0.30 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
| 7 | 7.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
| 8 | 8.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
| 9 | 9.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 50 |
| 10 | 10.0 ± 0.80 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 50 |
| 12 | 12.0 ± 0.80 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 50 |
| 13 | 13.0 ± 1.0 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 50 |
| 14 | 14.0 ± 1.0 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 50 |
| 18 | 18.0 ± 1.0 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 25 |
| 20 | 20.0 ± 1.0 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 25 |
| 25 | 25.0 ± 1.0 | 0.45 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 25 |
| 30 | 30.0 ± 1.0 | 0.45 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 25 |
| 35 | 35.0 ± 1.0 | 0.45 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 25 |
| 40 | 40.0 ± 1.0 | 0.45 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 25 |
Packaging Details According to the tubing's size
Packing size:46*46*46cm
Port Any ports of China
Customized logo Customized packaging Graphic customization
MOQ: 100 MOQ: 100 MOQ: 100
For more customization details, message supplier
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
