Product Description:

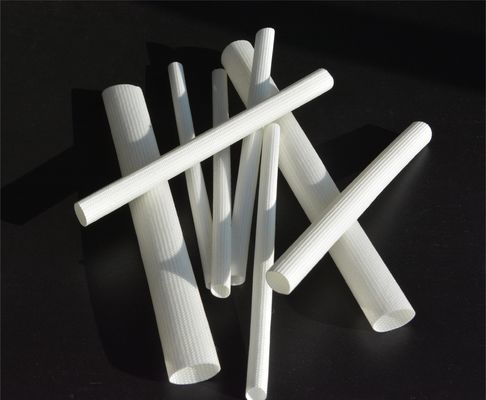

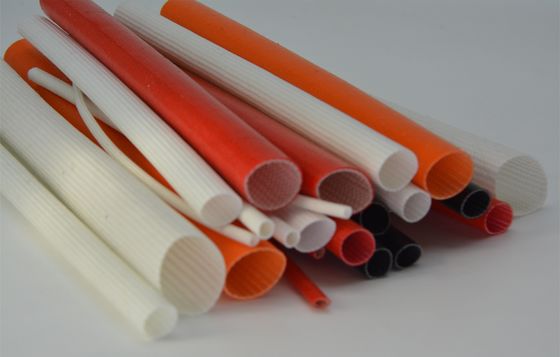

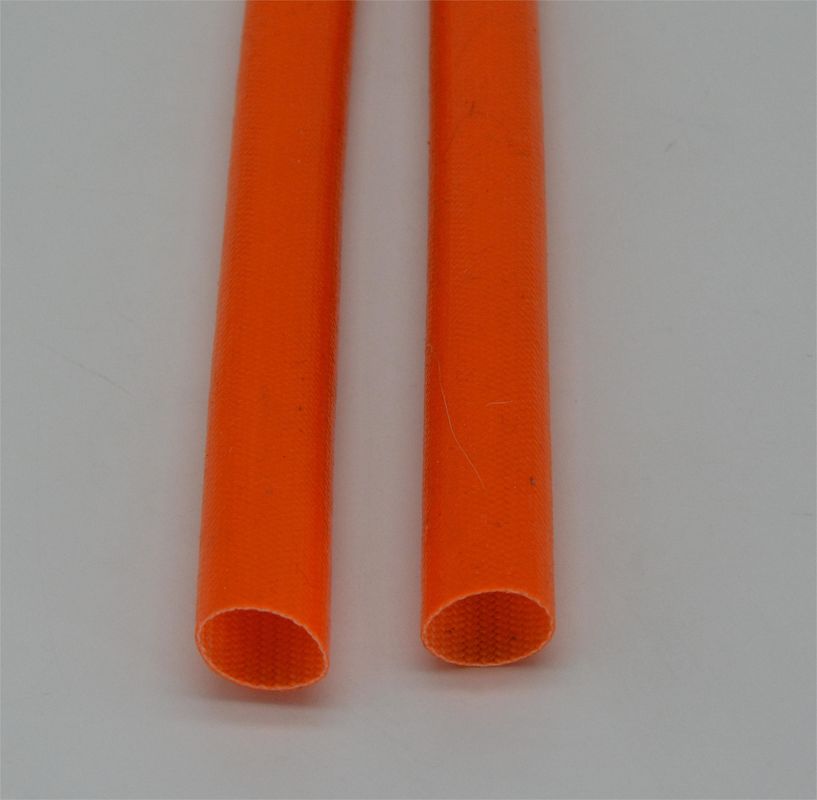

Glass fiber tube is a high-performance product made of glass fiber, which is flexible, lightweight and durable. It has excellent electrical insulation and can work stably at a wide temperature range from -55℃ to 200℃. It comes in various size options, ranging from 1.0mm to 40.0mm in diameter, and has multiple colors, such as white, black, blue, green, red, yellow and orange. The tube is characterized by flame retardation, which makes it ideal for use in industrial and commercial applications.
Glass fiber tube has superior performance and can be used in many industrial and commercial areas, such as aerospace, automotive, electrical and electronics, fiber optics, industrial, marine and transportation. Its high strength, flexibility and flame retardation make it an ideal choice for applications that require excellent electrical insulation. The tube is also resistant to water, chemicals and corrosion, and it is environmentally friendly.
Glass fiber tube is lightweight, flexible and flame retardation, with excellent electrical insulation and wide operating temperature range. It is available in various sizes and multiple colors, and is resistant to water, chemicals and corrosion. With its superior performance and environmental friendliness, glass fiber tube is the perfect choice for your industrial and commercial needs.
Features:
- Two types: Inner fiberglass outside braided silicone rubber(SRG-N) Inner silicone rubber outside fiberglass braided(SRG-W)
- RoHS compliant; UL approved
- Color: White, Black, Blue, Green, Red, Yellow, Orange
- Operating temperature: -55℃ ~ 200℃
- Corona resistance: High
- Tensile Strength: High
- Insulation sleeving: Yes
- Flexible fiberglass tube: Yes
- Arc resistance: High
- Diameter: 1.0mm - 40.0mm
Technical Parameters:
| Parameters |
Value |
| Execution Standard |
UL1441 |
| Operating Temperature |
-55℃~200℃ |
| Cold Bending |
No cracks |
| Corona Resistance |
High |
| Temperature Resistance |
200℃±2℃*168h≥Half of the original voltage |
| Volume Resistivity |
≥10^11Ω·cm |
| Color |
White, Black, Blue, Green, Red, Yellow, Orange |
| Environmental Standards |
RoHS, REACH |
| Diameter |
1.0mm - 40.0mm |
|
Applications:
LONGCHUANG LC-SF-1 fiberglass tubes are manufactured using high quality fiberglass and advanced production technology. These tubes are highly resistant to corona, arc, temperature, and abrasive forces. The diameter of these tubes ranges from 1.0mm to 40.0mm. These tubes are manufactured by LONGCHUANG, one of the leading fiberglass tube manufacturers in China. LONGCHUANG LC-SF-1 fiberglass tubes are highly durable, making them a popular choice among fiberglass tube suppliers and customers. They are also available in a wide range of sizes, making them a great choice for a variety of applications. Additionally, LONGCHUANG LC-SF-1 fiberglass tubes are offered at a competitive price, making them an attractive option for customers who are looking for the best value for their money.
LONGCHUANG LC-SF-1 fiberglass tubes are widely used in a variety of industries, including automotive, electrical, and engineering. They are often used for insulation, wiring, and other protective applications. They are also commonly used in the construction of boats, aircraft, and other large structures. The high durability and flexibility of these tubes make them an ideal choice for these applications. LONGCHUANG LC-SF-1 fiberglass tubes are also highly resistant to corrosion, making them an excellent choice for use in highly acidic or corrosive environments.
LONGCHUANG LC-SF-1 fiberglass tubes are an ideal choice for a variety of applications. Their high resistance to corona, arc, temperature, and abrasive forces make them an ideal choice for a wide range of applications. They are also highly durable and flexible, making them an attractive choice for customers looking for the best value for their money. Additionally, their competitive price makes them an attractive choice for customers who are looking for the best fiberglass tube suppliers and prices.
Dimensions
| Size |
Internal Diameter (mm) |
Average Wall Thickness (mm) |
Standard Package M/Spools |
| 1500V, 2500V |
4000V |
7000V |
| 0.5 |
0.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 1 |
1.0 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 1.5 |
1.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 2 |
2.0 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 2.5 |
2.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 3 |
3.0 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 3.5 |
3.5 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 4 |
4.0 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 4.5 |
4.5 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 5 |
5.0 ± 0.45 |
0.30 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 6 |
6.0 ± 0.45 |
0.30 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 7 |
7.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 8 |
8.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 9 |
9.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
50 |
| 10 |
10.0 ± 0.80 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 12 |
12.0 ± 0.80 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 13 |
13.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 14 |
14.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 18 |
18.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
25 |
| 20 |
20.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
25 |
| 25 |
25.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 30 |
30.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 35 |
35.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 40 |
40.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
Customization
Customized logo Customized packaging Graphic customization
MOQ: 100 MOQ: 100 MOQ: 100
For more customization details, message supplier
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
