Product Description:

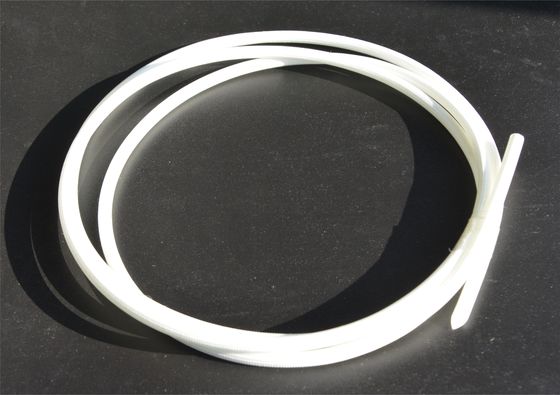

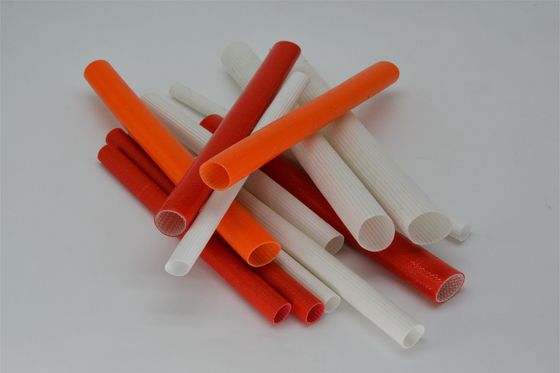

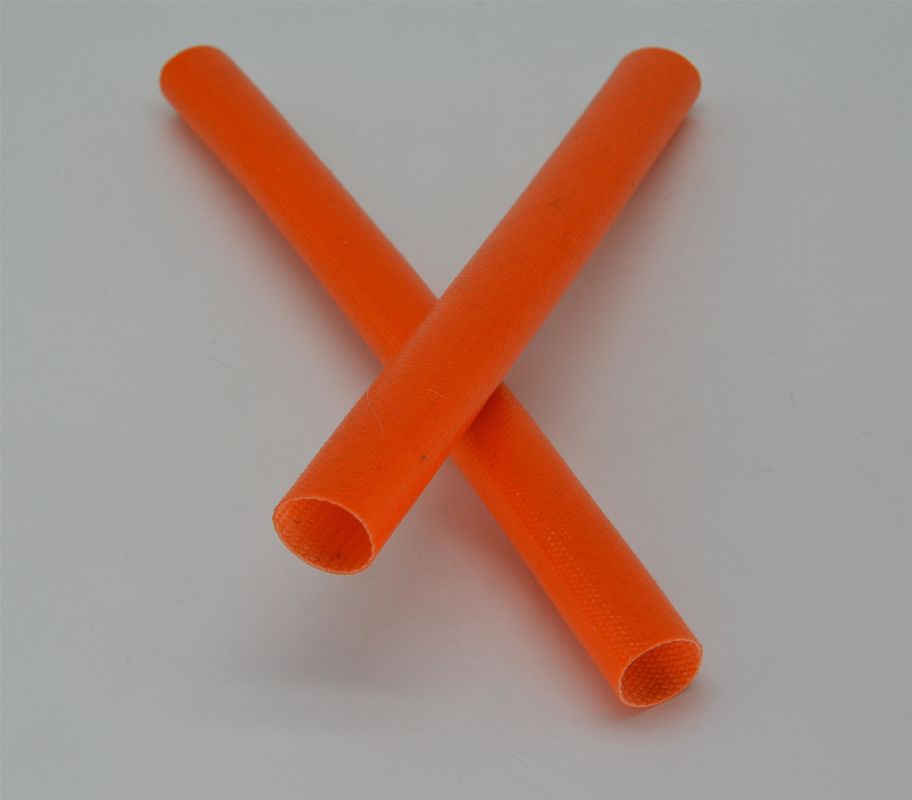

Glass Fiber Tube is a type of fiber glass tubing with excellent abrasive resistance and flame retardation. KORE has two kinds of fiberglass sleeving, one is made of silicone rubber extruded into a tube, plus woven glass fiber, and then coated with silicone resin high temperature treatment. One is made of glass fiber yarn woven into a blank tube, and then coated with silica gel after high temperature treatment. And it comes in a variety of colors, including white, black, blue, green, red, yellow, and orange. The operating temperature range of the tube is from -55°C to 200°C, and it's available in a wide range of diameters from 1.0mm to 40.0mm. The glass fiber tube is highly resistant to corrosion and is suitable for many applications.
Features:
- Two types: Inner fiberglass outside braided silicone rubber(SRG-N) Inner silicone rubber outside fiberglass braided(SRG-W)
- Color: White, Black, Blue, Green, Red, Yellow, Orange
- fire resistance: High
- Operating temperature: -55℃ ~ 200℃
- Flexibility: High
- Diameter: 1.0mm - 40.0mm
- Abrasive resistance: High
- Certification: RoHS compliant; UL approved
- Insulation sleeving: Available
Technical Parameters:
| Attribute |
Specification |
| Execution Standard |
UL1441 |
| Operating Temperature |
-55℃~200℃ |
| Cold Bending |
No cracks |
| Corona Resistance |
High |
| Temperature Resistance |
200℃±2℃*168h≥Half of the original voltage |
| Volume Resistivity |
≥10^11Ω·cm |
| Color |
White, Black, Blue, Green, Red, Yellow, Orange |
| Environmental Standards |
RoHS, REACH |
| Diameter |
1.0mm - 40.0mm |
|
Applications:
KORE's KR-SF-1 flexible fiberglass tube is a high-performance product with excellent corona resistance and temperature resistance. It is made of special fiberglass material and features a customizable wide diameter range from 1.0mm to 40.0mm. It also comes in seven vibrant colors, including white, black, blue, green, red, yellow, and orange. This fiber glass tubing is perfect for various applications, from -55℃ to 200℃, and it is suitable for the majority of electrical engineering and insulation projects.
Dimensions
| Size |
Internal Diameter (mm) |
Average Wall Thickness (mm) |
Standard Package M/Spools |
| 1500V, 2500V |
4000V |
7000V |
| 0.5 |
0.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 1 |
1.0 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 1.5 |
1.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 2 |
2.0 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 2.5 |
2.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 3 |
3.0 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 3.5 |
3.5 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 4 |
4.0 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 4.5 |
4.5 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 5 |
5.0 ± 0.45 |
0.30 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 6 |
6.0 ± 0.45 |
0.30 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 7 |
7.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 8 |
8.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 9 |
9.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
50 |
| 10 |
10.0 ± 0.80 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 12 |
12.0 ± 0.80 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 13 |
13.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 14 |
14.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 18 |
18.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
25 |
| 20 |
20.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
25 |
| 25 |
25.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 30 |
30.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 35 |
35.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 40 |
40.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
Customization
Customized logo Customized packaging Graphic customization
MOQ: 100 MOQ: 100 MOQ: 100
For more customization details, message supplier
