Product Description:

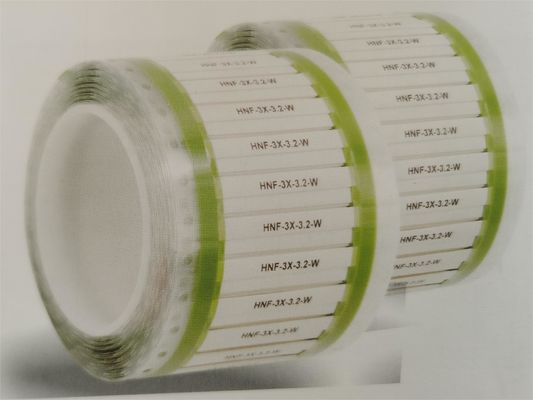

Heat Shrink Identification Tubes

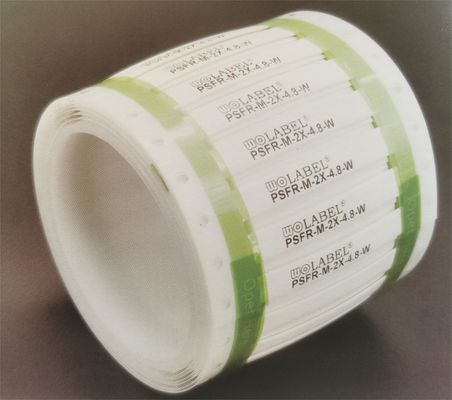

RSFR marker sleeve is a flattened, heat-shrinkable tubing intended for wire and cable harness identification. It can also be used for applications where limited fire hazard characteristics are necessary. When RSFR is printed with Woer recommended printers and ink ribbons, the marks remain legible, durable, even when exposed to abrasion, aggressive cleaning solvents, and industrial fluids.
Features:
Heat Shrink Identification Tubes
| Material |
The sleeving shall be fabricated from irradiated, thermally stabilized and flame retarded modified PVDF |
| Application range |
Aerospace, defense and mass transit industries. |
| Operating temperature range |
-55~+225℃ |
| Minimum recovery temperature |
+150 ℃ |
| Maximum storage temperature |
+50 ℃ |
| Shrink ratio |
2:1 |
| Color |
White, Yellow, other color is available if ordered |
| Printing mode |
Single sided printing and Double sided printing formats available |
| Supplied mode |
Either Continuous type or Ladder format type is available |
| Recommended Printers |
Thermal transfer printer |
| Recommended Ribbons |
N95 resin ribbon, Black, 100mm(width)*300m(length) |
Applications:
Heat Shrink Identification Tubes
Aerospace, defense and mass transit industries.
Dimensions:
| Part Number |
As Supplied(mm) |
After Recovery(mm) |
| ID(D) |
ID(d) |
Single Wall Thickness |
| PSFR-M-2X-2.4-* |
2.4 |
1.2 |
0.38±0.08 |
| PSFR-M-2X-3.2-* |
3.2 |
1.6 |
0.38±0.08 |
| PSFR-M-2X-4.8-* |
4.8 |
2.4 |
0.38±0.08 |
| PSFR-M-2X-6.4-* |
6.4 |
3.2 |
0.38±0.08 |
| PSFR-M-2X-9.5-* |
9.5 |
4.8 |
0.38±0.08 |
| PSFR-M-2X-12.7-* |
12.7 |
6.4 |
0.38±0.08 |
| PSFR-M-2X-19.1-* |
19.1 |
9.5 |
0.38±0.08 |
| PSFR-M-2X-25.4-* |
25.4 |
12.7 |
0.43±0.10 |
| PSFR-M-2X-38.1-* |
38.1 |
19.1 |
0.43±0.10 |
Part Numbering System
Color:
| Color code |
BL |
Br |
R |
Or |
Y |
G |
Blu |
V |
Gr |
W |
| Color |
Black |
Brown |
Red |
Orange |
Yellow |
Green |
Blue |
Violet |
Grey |
White |
Note:Yellow and white are standard, other color is available if ordered.
Key Properties:
| Property |
Unit |
Requirement |
Test Method |
| Size |
mm |
As supplied |
ASTM D 2671 |
| Longitudinal Change |
% |
-10~+5 |
ASTM D 2671 |
| Tensile Strength |
MPa |
≥24.1 |
ASTM D 2671 |
| Ultimate Elongation |
% |
≥300 |
ASTM D 2671 |
| Specific Gravity |
g/cm3 |
≤1.9 |
ASTM D 2671 |
| Low Temperature Flexibility(-55℃,4h) |
— |
No Cracks |
AMS-DTL-23053 |
| Heat Shock (275 ℃ ,4h) |
— |
No cracking, flowing or dripping |
ASTM D 2671 |
| Tensile Strength after Heat Aging(225℃,168h) |
MPa |
≥19.1 |
ASTM D 2671 |
| Ultimate Elongation after Heat Aging(225℃,168h) |
% |
≥200 |
ASTM D 2671 |
| Dielectric Strength |
Kv/mm |
≥15.7 |
ASTM D 2671 |
| Volume Resistivity |
Ω·cm |
≥1012 |
ASTM D 2671 |
| Corrosive Effect(160℃,16h) |
— |
No corrosion |
ASTM D 2671 |
| Flammability |
— |
Pass |
UL224 VW-1, ASTM D 2671 |
| Water Absorption(23℃,24h) |
% |
≤0.5 |
ISO 846 Procedure B |
| Print Permanence |
— |
Print legible after 50 rubs |
SAE AS81531 |
| Print Permanence after Heat Aging(225℃,168h) |
— |
Print legible after 50 rubs |
SAE AS81531 |
| Print Permanence after Fluid Resistance |
— |
Print legible after 50 rubs |
MIL-STD-202F, method 215J |
Packaging and delivery
Ordering Size
(PSFR-M-2X) |
Ladder Format Type |
Continuous Type |
| Small Box Packing(PCS/Box) |
Paper reel Packing(m/reel) |
| Φ2.4 |
2500 |
50 |
| Φ3.2 |
2000 |
100 |
| Φ4.8 |
2000 |
100 |
| Φ6.4 |
2000 |
100 |
| Φ9.5 |
1000 |
100 |
| Φ12.7 |
1000 |
100 |
| Φ19.0 |
500 |
100 |
| Φ25.0 |
500 |
100 |
| Φ38.0 |
500 |
50 |
Delivery: Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details, message supplier
