Product Description:
Heat Shrink Identification Tube
HNF marker sleeve is a flattened, heat-shrinkable tubing designed for wire and cable harness identification. It can also be used for applications where limited fire hazard characteristics are necessary. The zero halogen material coupled with low smoke and low toxic fume emissions make this product perfectly used in enclosed spaces such as mass transit, marine and industrial installations.
Features:
Heat Shrink Identification Tube
| Material |
The sleeving shall be fabricated from irradiated, thermally stabilized and flame retarded modified polyolefin compound containing no halogens or cadmium in the formulation. |
| Application range |
Industrial environment ; Rail & mass transit; Aerospace & defense; Marine |
| Operating temperature range |
-55~+125℃ |
| Minimum recovery temperature |
+115 ℃ |
| Maximum storage temperature |
+40 ℃ |
| Shrink ratio |
2:1 |
| Color |
White, Yellow, other color is available if ordered |
| Printing mode |
Single sided printing and Double sided printing formats available |
| Supplied mode |

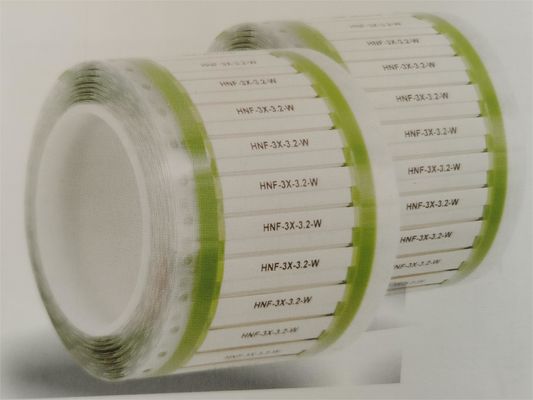

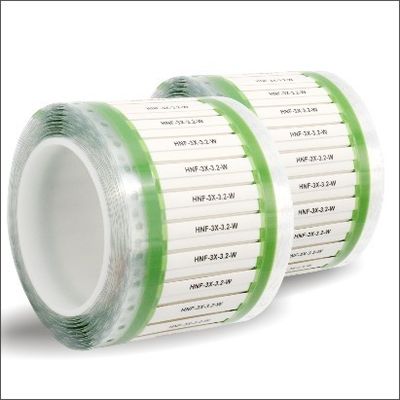

Either Continuous type or Ladder format type is available |
| Recommended Printers |
Thermal transfer printer |
| Recommended Ribbons |
N85 resin ribbon, Black, 100mm(width)*300m(length) |
Applications:
Heat Shrink Identification Tube
Industrial environment ; Rail & mass transit; Aerospace & defense; Marine
Dimensions:
| Part Number |
As Supplied(mm) |
|
|
After Recovery(mm) |
| ID(D) |
Flatten Width(w) |
Double Wall Thickness |
ID(d) |
Single Wall Thickness |
| HNF-M-2X-2.4- |
2.79±0.20 |
5.0±0.3 |
0.48±0.10 |
≤1.18 |
0.49±0.06 |
| HNF-M-2X-3.2- |
3.64±0.23 |
6.3±0.4 |
0.48±0.10 |
≤1.59 |
0.51±0.06 |
| HNF-M-2X-4.8- |
5.26±0.25 |
8.9±0.4 |
0.49±0.10 |
≤2.36 |
0.54±0.06 |
| HNF-M-2X-6.4- |
6.92±0.28 |
11.5±0.4 |
0.50±0.10 |
≤3.18 |
0.56±0.06 |
| HNF-M-2X-9.5- |
10.2±0.32 |
16.7±0.5 |
0.51±0.11 |
≤4.75 |
0.59±0.06 |
| HNF-M-2X-12.7- |
13.5±0.36 |
21.8±0.6 |
0.52±0.11 |
≤6.35 |
0.60±0.07 |
| HNF-M-2X-19.0- |
20.1±0.40 |
32.2±0.6 |
0.53±0.11 |
≤9.53 |
0.62±0.07 |
| HNF-M-2X-25.0- |
26.7±0.45 |
42.5±0.7 |
0.55±0.12 |
≤12.7 |
0.63±0.07 |
| HNF-M-2X-38.0- |
39.8±0.51 |
63.2±0.8 |
0.57±0.12 |
≤19.1 |
0.64±0.07 |
Part Numbering System
Color:
| Color code |
BL |
Br |
R |
Or |
Y |
G |
Blu |
V |
Gr |
W |
| Color |
Black |
Brown |
Red |
Orange |
Yellow |
Green |
Blue |
Violet |
Grey |
White |
Note:Yellow and white are standard, other color is available if ordered.
Packaging and delivery
Ordering Size
(HNF-M-2X) |
Ladder Format Type |
Continuous Type |
| A&B-Small Box Packing(PCS/Box) |
A-Paper reel Packing(m/reel) |
B-Plastic reel Packing(m/reel) |
| Φ2.4 |
2500 |
50 |
25 |
| Φ3.2 |
2000 |
100 |
25 |
| Φ4.8 |
2000 |
100 |
25 |
| Φ6.4 |
2000 |
100 |
25 |
| Φ9.5 |
1000 |
100 |
25 |
| Φ12.7 |
1000 |
100 |
25 |
| Φ19.0 |
500 |
100 |
25 |
| Φ25.0 |
500 |
100 |
25 |
| Φ38.0 |
500 |
50 |
25 |
Delivery: Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details, message supplier
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
