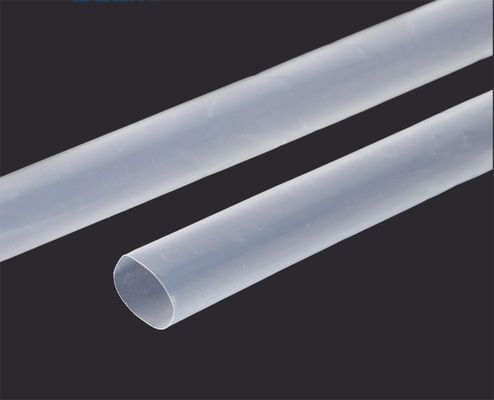

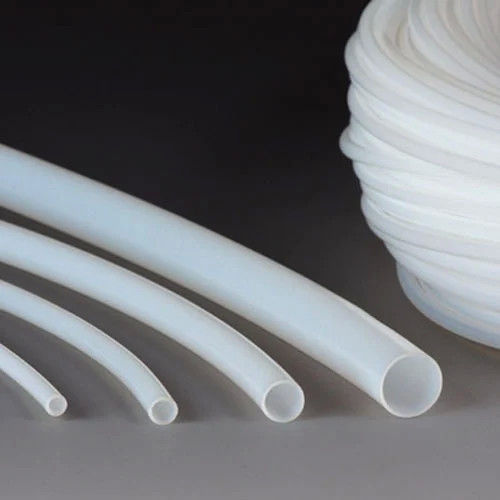

PTFE Heat Shrink Tubing Shrink Temperature > 350℃ Clear
Product Description:
PTFE Heat Shrink Tubing can be widely used in science &technology field.such as chemistry, mechanical industries, astronautic industry, vehicles, transformers, communications, etc.
Features:
● High performance for anti-corrosion (anti-acid/alkali/chemical/oil)
● High voltage resistant
● Operating Temperature: -65℃-200℃
● Standard color: Clear
● Shrink ratio:1.7:1, 2:1,4:1
● Shrink temperature:＞350℃
Application:
Widely used in science &technology field, such as chemistry, mechanical industries, astronautic industry, vehicles, transformers, communications, etc.
Technical Parameters:
Dimension:
RSFR-TFE-1.7X SPECIFICATION
| Size(mm) |
As Supplied(mm) |
Recovered(mm) |
Standard Package
(m/Spool) |
| Inner Diameter |
Inner Diameter |
Wall Thickness |
| 1 |
1.0±0.2 |
≤0.6 |
0.20±0.05 |
200 |
| 1.5 |
1.5±0.2 |
≤0.9 |
0.20±0.05 |
200 |
| 2 |
2.0±0.2 |
≤1.3 |
0.20±0.05 |
200 |
| 2.5 |
2.5±0.2 |
≤1.5 |
0.20±0.05 |
200 |
| 3 |
3.0±0.2 |
≤1.8 |
0.20±0.05 |
200 |
| 3.5 |
3.5±0.2 |
≤2.0 |
0.20±0.05 |
100 |
| 4 |
4.0±0.3 |
≤2.5 |
0.25±0.05 |
100 |
| 4.5 |
4.5±0.3 |
≤2.8 |
0.25±0.05 |
100 |
| 5 |
5.0±0.3 |
≤3.0 |
0.25±0.05 |
100 |
| 6 |
6.0±0.3 |
≤3.8 |
0.25±0.05 |
100 |
| 7 |
7.0±0.3 |
≤4.0 |
0.25±0.05 |
100 |
| 8 |
8.0±0.3 |
≤4.8 |
0.25±0.05 |
1 |
| 9 |
9.0±0.3 |
≤5.0 |
0.30±0.05 |
1 |
| 10 |
10.0±0.3 |
≤5.8 |
0.30±0.05 |
1 |
| 11 |
11.0±0.3 |
≤6.4 |
0.30±0.05 |
1 |
| 12 |
12.0±0.3 |
≤7.0 |
0.30±0.05 |
1 |
| 13 |
13.0±0.3 |
≤7.5 |
0.35±0.05 |
1 |
| 14 |
14.0±0.3 |
≤8.0 |
0.35±0.05 |
1 |
| 15 |
15.0±0.3 |
≤8.5 |
0.40±0.05 |
1 |
| 16 |
16.0±0.3 |
≤9.0 |
0.40±0.05 |
1 |
RSFR-TFE-2X SPECIFICATION
| Size(mm) |
As Supplied(mm) |
Recovered(mm) |
Standard Package
(m/Spool) |
| Inner Diameter |
Inner Diameter |
Wall Thickness |
| 1 |
1.0±0.2 |
≤0.55 |
0.15±0.05 |
200 |
| 1.5 |
1.5±0.2 |
≤0.80 |
0.15±0.05 |
200 |
| 2 |
2.0±0.2 |
≤1.10 |
0.15±0.05 |
200 |
| 2.5 |
2.5±0.3 |
≤1.35 |
0.15±0.05 |
200 |
| 3 |
3.0±0.3 |
≤1.65 |
0.20±0.05 |
200 |
| 3.5 |
3.5±0.3 |
≤1.85 |
0.20±0.05 |
100 |
| 4 |
4.0±0.3 |
≤2.10 |
0.20±0.05 |
100 |
| 4.5 |
4.5±0.3 |
≤2.35 |
0.20±0.05 |
100 |
| 5 |
5.0±0.3 |
≤2.60 |
0.20±0.05 |
100 |
| 6 |
6.0＋0.5/-0.3 |
≤3.10 |
0.25±0.05 |
100 |
| 7 |
7.0＋0.5/-0.3 |
≤3.60 |
0.25±0.05 |
1 |
| 8 |
8.0＋0.5/-0.3 |
≤4.10 |
0.25±0.05 |
1 |
| 9 |
9.0＋0.8/-0.3 |
≤4.60 |
0.25±0.05 |
1 |
| 10 |
10.0＋0.8/-0.3 |
≤5.20 |
0.25±0.05 |
1 |
| 11 |
11.0＋0.8/-0.3 |
≤5.60 |
0.25±0.05 |
1 |
| 12 |
12.0＋0.8/-0.3 |
≤6.20 |
0.25±0.05 |
1 |
| 13 |
13.0＋0.8/-0.3 |
≤6.70 |
0.25±0.05 |
1 |
RSFR-TFE-4X SPECIFICATION
| Size(mm) |
As Supplied(mm) |
Recovered(mm) |
Standard Package
(m/Spool) |
| Inner Diameter |
Inner Diameter |
Wall Thickness |
| 3 |
3.0＋0.8/-0.3 |
≤0.75 |
0.3±0.05 |
200 |
| 3.5 |
3.5＋0.8/-0.3 |
≤0.87 |
0.3±0.05 |
100 |
| 4 |
4.0＋0.8/-0.3 |
≤1.00 |
0.3±0.05 |
100 |
| 4.5 |
4.5＋0.8/-0.3 |
≤1.12 |
0.3±0.05 |
100 |
| 5 |
5.0＋0.8/-0.3 |
≤1.25 |
0.3±0.05 |
100 |
| 5.5 |
5.5＋0.8/-0.3 |
≤1.37 |
0.3±0.05 |
100 |
| 6 |
6.0＋0.8/-0.3 |
≤1.50 |
0.3±0.05 |
100 |
| 6.5 |
6.5＋0.8/-0.3 |
≤1.62 |
0.3±0.05 |
100 |
| 7 |
7.0＋0.8/-0.3 |
≤1.72 |
0.3±0.05 |
100 |
| 8 |
8.0＋0.8/-0.3 |
≤2.00 |
0.3±0.05 |
1 |
| 9.5 |
9.5＋0.8/-0.3 |
≤2.40 |
0.3±0.05 |
1 |
Packaging and delivery:
Packing size:46*46*45cm
Delivery: Any ports of China
Customization:
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details, message supplier
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
