26 Kv/Mm Pipe Sleeve PTFE Sleeving Inflammability VW-1

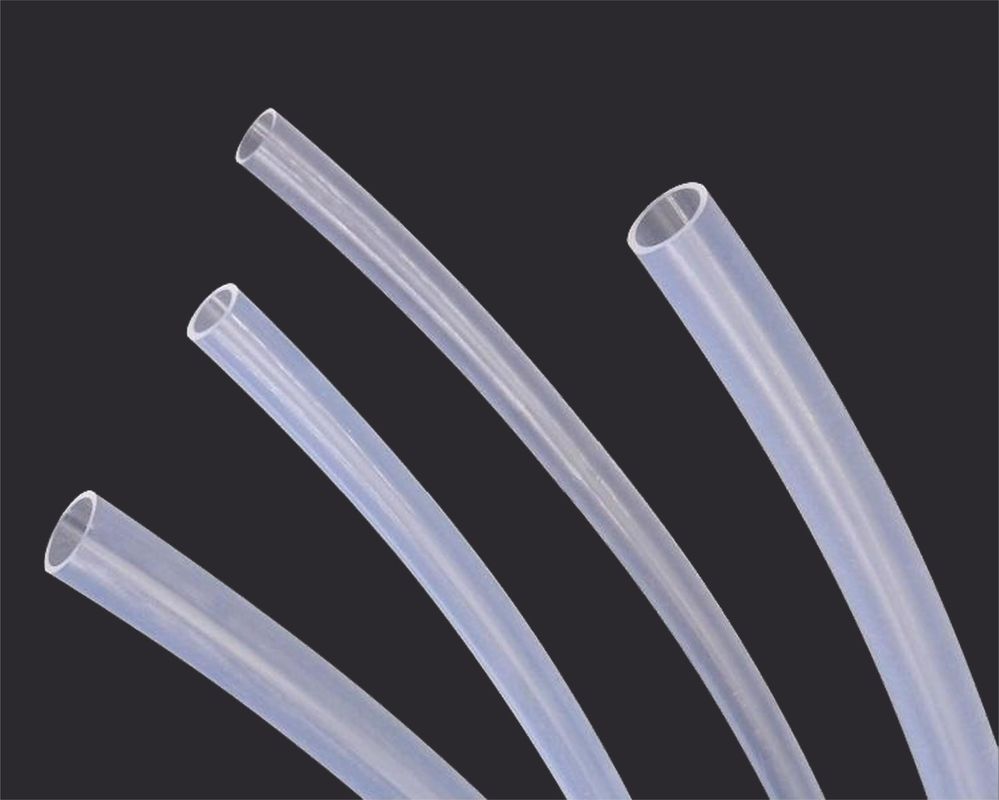

Large Image : 26 Kv/Mm Pipe Sleeve PTFE Sleeving Inflammability VW-1

Product Details:

Place of Origin:	JIANGSU,CHINA
Brand Name:	LONG
Certification:	ISO9001
Model Number:	1MM~16MM

Payment & Shipping Terms:

Minimum Order Quantity:	1 meter
Price:	USD 0.1/m
Packaging Details:	Carton
Delivery Time:	1-7days
Payment Terms:	T/T
Supply Ability:	50000 Meters Per Day

Contact Now

26 Kv/Mm Pipe Sleeve PTFE Sleeving Inflammability VW-1

Description

Specific Gravity:	2.16g/cm3	Rated Voltage:	600V（S） 300V（T） 150V（L）
UL Rated Temperature:	-80～200℃	Tensile Strength:	19MPa
Elongation Ratio:	≥200%	Service Temperature 20000h With 50% Retention Of Ultimate Elongation:	260℃
Inflammability:	VW-1	Disruptive Strength:	26 Kv/mm
Volume Resistivity:	≥10^16 Ω·cm	Weather Resistance:	-65℃ No Cracking
Corrosion Resistance:	Excellent	Chemical Resistance:	Excellent
Highlight:	pipe sleeve Inflammability VW-1 , 26 kv/mm PTFE sleeving , 26 kv/mm pipe sleeve

Professional Chemical Resistant High Temperature Resistant PTFE Sleeve

Product Description

A professional chemical resistant high temperature resistant PTFE sleeve is a specialized sleeve designed to provide exceptional chemical resistance and withstand high temperatures in demanding industrial applications. Made from PTFE (polytetrafluoroethylene), this sleeve offers excellent durability, insulation, and resistance to a wide range of chemicals, making it ideal for protecting wires, cables, and hoses in harsh environments.

Features

1.Shrinkage Ratio: 1.7:1

2.Operating temperature:-65℃ ~ +200℃

3.RoHS compliant: UL approved

4.Shrinkage Temperature: ≥+350℃

5.Strong corrosion resistance, High temperature resistance, High flame retardant

6.Standard color: Clear

Applications

The professional chemical resistant high temperature resistant PTFE sleeve finds applications in various industries, including chemical processing, oil and gas, automotive, and aerospace. It is commonly used for wire harnesses, cables, and hoses that require protection against chemicals, high temperatures, and harsh environments.

Dimensions

Specification (mm)	Size (mm)	Full Shrink Size (mm)		Standard Packing Meter/roll, Meter/root	Pipeform
Specification (mm)	Inner Diameter	Inner Diameter	Wall Thickness	Standard Packing Meter/roll, Meter/root	Pipeform
1.0	1.0±0.2	≤0.6	0.20±0.05	200	Circle
1.5	1.5±0.2	≤0.9	0.20±0.05	200	Circle
2.0	2.0±0.2	≤1.3	0.20±0.05	200	Circle
2.5	2.5±0.2	≤1.5	0.20±0.05	200	Circle
3.0	3.0±0.2	≤1.8	0.20±0.05	200	Circle
3.5	3.5±0.2	≤2.0	0.20±0.05	100	Circle
4.0	4.0±0.3	≤2.5	0.25±0.05	100	Circle
4.5	4.5±0.3	≤2.8	0.25±0.05	100	Circle
5.0	5.0±0.3	≤3.0	0.25±0.05	100	Circle
6.0	6.0±0.3	≤3.8	0.25±0.05	100	Circle
7.0	7.0±0.3	≤4.0	0.25±0.05	100	Circle
8.0	8.0±0.3	≤4.8	0.30±0.05	1	Flat
9.0	9.0±0.3	≤5.0	0.30±0.05	1	Flat
10.0	10±0.3	≤5.8	0.30±0.05	1	Flat
11.0	11±0.3	≤6.4	0.30±0.05	1	Flat
12.0	12±0.3	≤7.0	0.30±0.05	1	Flat
13.0	13±0.3	≤7.5	0.35±0.05	1	Flat
14.0	14±0.3	≤8.0	0.35±0.05	1	Flat
15.0	15±0.3	≤8.5	0.40±0.05	1	Flat
16.0	16±0.3	≤9.0	0.40±0.05	1	Flat

Packaging and delivery

Packaging Details: According to the tubing's size
Packing size:

Port: Any ports of China

Customization

Customized logo Customized packaging Graphic customization

MOQ: 100 MOQ: 100 MOQ: 100

For more customization details, message supplier

FAQ

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
