High Abrasive Resistance Glass Fiber Tube Temperature Range -55C to 200C
Product Description:

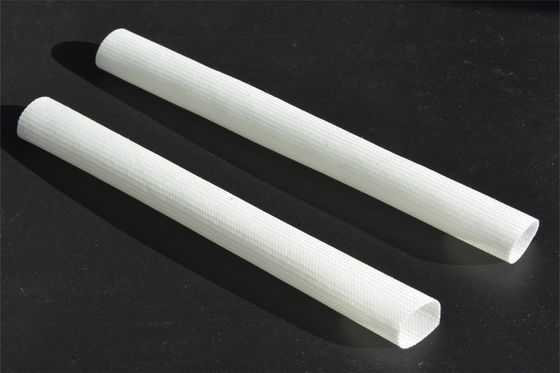

Glass Fiber Tube is a high-performance product that can provide excellent insulation and flame retardation. It is extremely flexible and offers superior corona, arc, and temperature resistance. The fiberglass tube insulation is made of glass fiber, which is lightweight and durable. It ensures an excellent electrical insulation performance and is highly resistant to flames and high temperatures. Additionally, its arc resistance is also high, making it a reliable and safe choice for many applications. Our Glass Fiber Tube is a reliable and efficient solution to meet your needs.
Features:
- Two types: Inner fiberglass outside braided silicone rubber(SRG-N) Inner silicone rubber outside fiberglass braided(SRG-W)
- RoHS compliant; UL approved

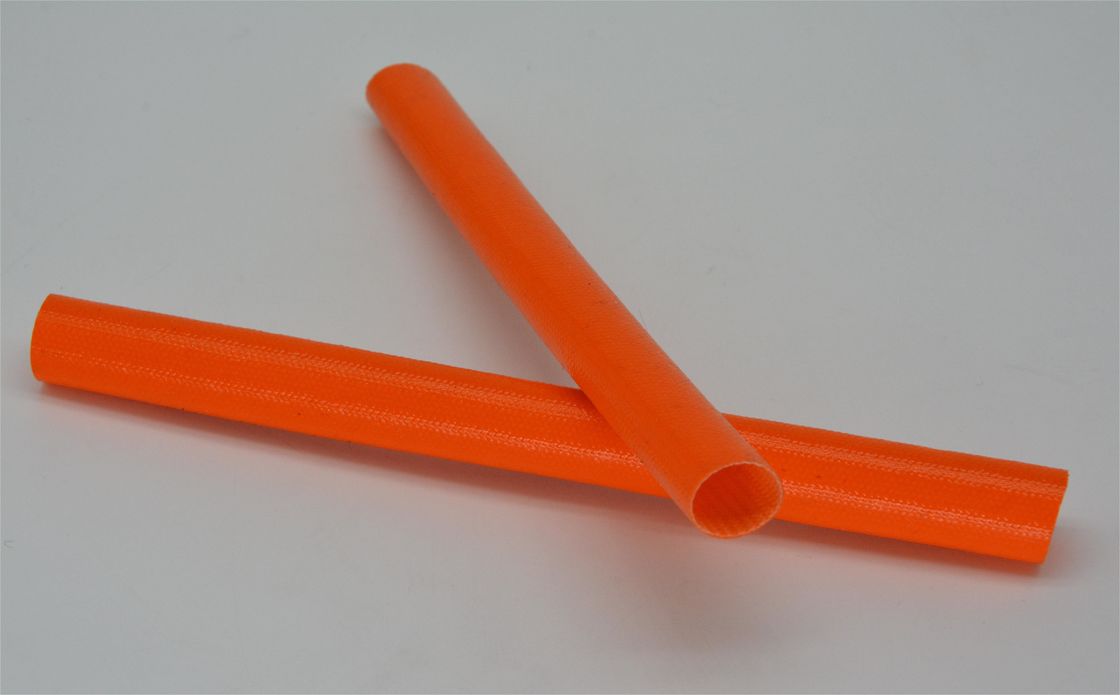

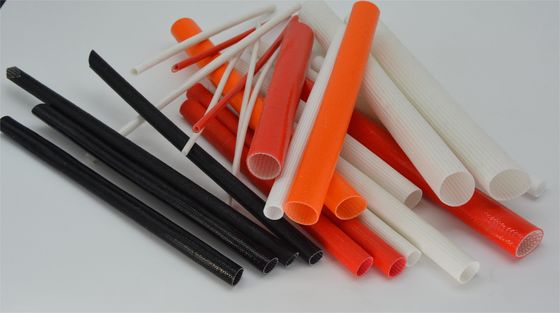

- Color: White, Black, Blue, Green, Red, Yellow, Orange
- Operating temperature: -55℃ ~ 200℃
- Corona resistance: High
- Tensile Strength: High
- Insulation sleeving: Yes
- Flexible fiberglass tube: Yes
- Arc resistance: High
Technical Parameters:
| Attribute |
Specification |
| Execution Standard |
UL1441 |
| Operating Temperature |
-55℃~200℃ |
| Cold Bending |
No cracks |
| Corona Resistance |
High |
| Temperature Resistance |
200℃±2℃*168h≥Half of the original voltage |
| Volume Resistivity |
≥10^11Ω·cm |
| Color |
White, Black, Blue, Green, Red, Yellow, Orange |
| Environmental Standards |
RoHS, REACH |
| Diameter |
1.0mm - 40.0mm |
| |
|
Applications:
Glass fiber tube is a reliable and strong structural material, widely used in a variety of applications due to its high corona resistance, abrasive resistance and tensile strength. KORE's KR-SF-1 glass fiber tube is made of high-quality material and has excellent flexibility, ideal for use in electrical, industrial, and other applications. The diameter of KORE's KR-SF-1 glass fiber tube ranges from 1.0mm to 40.0mm, making it suitable for a wide variety of applications. Its high corona resistance, abrasive resistance, and tensile strength make it the perfect choice for any application.
KORE's KR-SF-1 glass fiber tube is designed to provide superior performance in demanding conditions. Its high flexibility allows it to be used in tight spaces, while its corona resistance ensures that it can withstand extreme temperatures. In addition, its abrasive resistance and high tensile strength make it suitable for use in harsh environments. Its unique design makes it ideal for insulation, protection, and support applications.
KORE's KR-SF-1 glass fiber tube is the perfect choice for any application, providing superior performance and reliability. Its high corona resistance, abrasive resistance, and tensile strength make it an ideal material for any application. Whether you need a flexible fiberglass tubing for electrical, industrial, or other applications, KORE's KR-SF-1 glass fiber tube is the perfect choice.
Dimensions
| Size |
Internal Diameter (mm) |
Average Wall Thickness (mm) |
Standard Package M/Spools |
| 1500V, 2500V |
4000V |
7000V |
| 0.5 |
0.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 1 |
1.0 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 1.5 |
1.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 2 |
2.0 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 2.5 |
2.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 3 |
3.0 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 3.5 |
3.5 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 4 |
4.0 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 4.5 |
4.5 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 5 |
5.0 ± 0.45 |
0.30 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 6 |
6.0 ± 0.45 |
0.30 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 7 |
7.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 8 |
8.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 9 |
9.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
50 |
| 10 |
10.0 ± 0.80 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 12 |
12.0 ± 0.80 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 13 |
13.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 14 |
14.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 18 |
18.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
25 |
| 20 |
20.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
25 |
| 25 |
25.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 30 |
30.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 35 |
35.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 40 |
40.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
Packing and Shipping:
Packaging and Shipping of Glass Fiber Tube
Glass fiber tubes are packaged and shipped in corrugated boxes to protect the product from breakage and to ensure safe transport. The boxes are labeled with a unique identification number and the customer's name. The dimensions of the boxes are customized according to the size of the tubes.
The tubes are protected from shock and vibration with bubble wrap, foam, or other cushioning materials. Shipping labels are applied to the boxes for easy identification and tracking. The packages are then shipped via ground, air, or sea freight.
To ensure the safe delivery of the tubes, we use tracking numbers to monitor the progress of the packages during the shipping process. We also provide customers with detailed shipping information, including estimated delivery time and shipping cost.
Customization
Customized logo Customized packaging Graphic customization
MOQ: 100 MOQ: 100 MOQ: 100
For more customization details, message supplier
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
