Product Description:

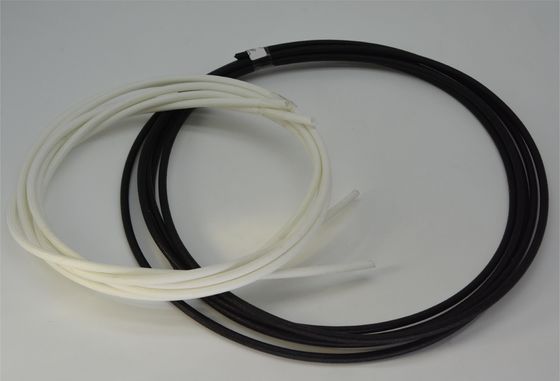

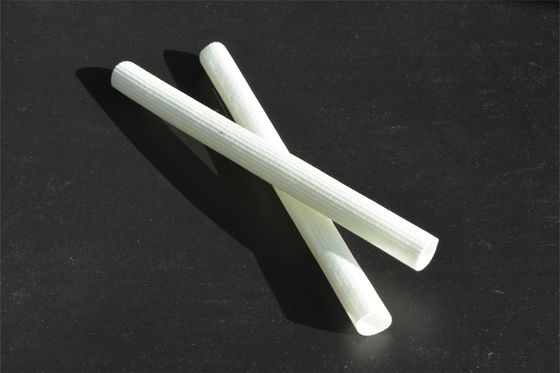

LONGCHUANG has two kinds of fiberglass sleeving, one is made of silicone rubber extruded into a tube, plus woven glass fiber, and then coated with silicone resin high temperature treatment. One is made of glass fiber yarn woven into a blank tube, and then coated with silica gel after high temperature treatment. It has excellent arc resistance, corona resistance, fire resistance, electrical insulation and temperature resistance. It is also highly abrasive resistant and corrosion resistant. It is widely used in various fields such as electrical engineering, power plants, petrochemicals, etc.
Features:
- Two types: Inner fiberglass outside braided silicone rubber(SRG-N) Inner silicone rubber outside fiberglass braided(SRG-W)
- RoHS compliant; UL approved

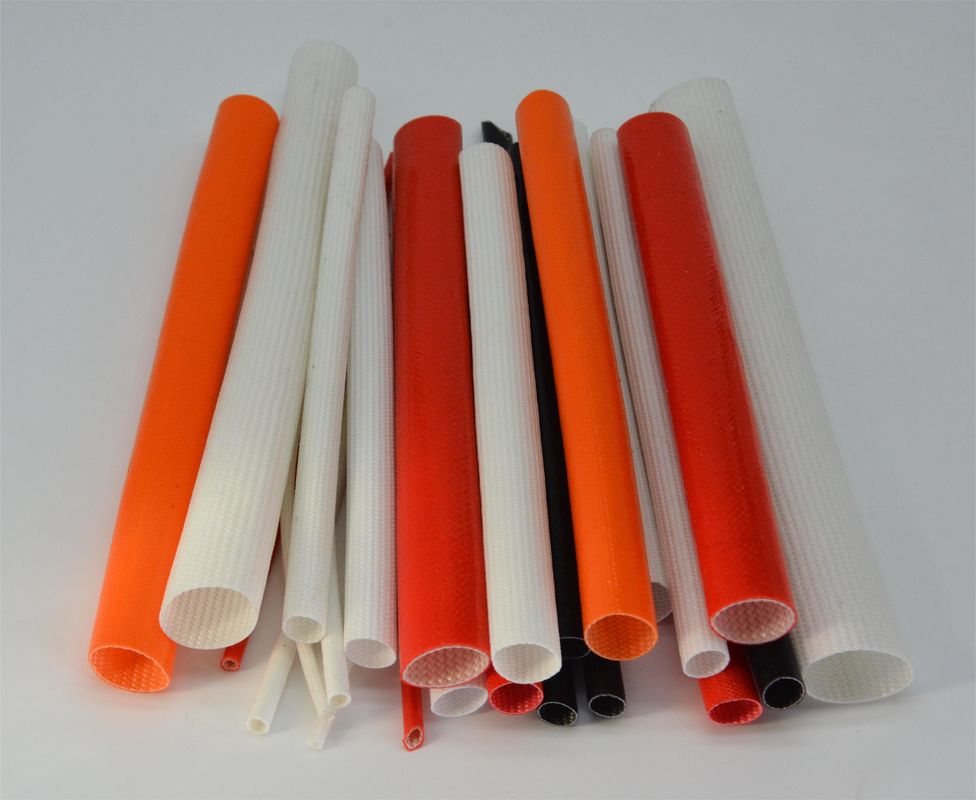

- Color: White, Black, Blue, Green, Red, Yellow, Orange
- Operating temperature: -55℃ ~ 200℃
- Corona resistance: High
- Tensile Strength: High
- Insulation sleeving: Yes
- Flexible fiberglass tube: Yes
- Arc resistance: High
Technical Parameters:
| Attribute |
Specification |
| Execution Standard |
UL1441 |
| Operating Temperature |
-55℃~200℃ |
| Cold Bending |
No cracks |
| Corona Resistance |
High |
| Temperature Resistance |
200℃±2℃*168h≥Half of the original voltage |
| Volume Resistivity |
≥10^11Ω·cm |
| Color |
White, Black, Blue, Green, Red, Yellow, Orange |
| Environmental Standards |
RoHS, REACH |
| Diameter |
1.0mm - 40.0mm |
|
Applications:
LONGCHUANG LC-SF-1 Glass Fiber Tube is manufactured with high quality arc resistance, high temperature resistance and tensile strength. Made of fiberglass, this tubing is available in a wide range of colors, including white, black, blue, green, red, yellow and orange. It is ideal for a variety of applications, from high-temperature environments to automotive and aerospace applications. LONGCHUANG LC-SF-1 Glass Fiber Tube is perfect for those who are looking for a reliable and durable product that can withstand high temperatures and extreme conditions. With its superior strength, it is capable of withstanding mechanical and chemical stresses without compromising its integrity. It is also resistant to corrosion, making it an ideal choice for applications where corrosion could be a problem. As one of the leading fiberglass tubing suppliers, LONGCHUANG provides customers with superior products that meet their needs and exceed their expectations.
Dimensions
| Size |
Internal Diameter (mm) |
Average Wall Thickness (mm) |
Standard Package M/Spools |
| 1500V, 2500V |
4000V |
7000V |
| 0.5 |
0.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 1 |
1.0 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 1.5 |
1.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 2 |
2.0 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 2.5 |
2.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 3 |
3.0 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 3.5 |
3.5 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 4 |
4.0 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 4.5 |
4.5 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 5 |
5.0 ± 0.45 |
0.30 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 6 |
6.0 ± 0.45 |
0.30 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 7 |
7.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 8 |
8.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 9 |
9.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
50 |
| 10 |
10.0 ± 0.80 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 12 |
12.0 ± 0.80 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 13 |
13.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 14 |
14.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 18 |
18.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
25 |
| 20 |
20.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
25 |
| 25 |
25.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 30 |
30.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 35 |
35.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 40 |
40.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
Customization
Customized logo Customized packaging Graphic customization
MOQ: 100 MOQ: 100 MOQ: 100
For more customization details, message supplier
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
