Excellent Electrical Insulation with High Abrasive Resistance for Glass Fiber Tube
Product Description:
Glass Fiber Tube is a high-performance product with a unique combination of properties. Its flame retardant, arc-resistant, and flexible fiberglass tubing make it ideal for a wide variety of applications. It is highly resistant to tensile strength, fire resistance, and corona resistance, ensuring maximum safety and durability in any environment. Its superior arc resistance and flame retardation make it an optimal choice for applications where safety is a top priority. Its flexibility also allows it to be used in a variety of shapes and forms, making it a versatile product for any situation. With its combination of features, Glass Fiber Tube is an excellent choice for electronics, electrical appliances, automotive wiring harness, class H and class C motor, transformer, inverter, inductor, reactor, generator, heating lighting equipment and other field.
Product Name: Glass Fiber Tube
- Two types: Inner fiberglass outside braided silicone rubber(SRG-N) Inner silicone rubber outside fiberglass braided(SRG-W)
2. Operating temperature:-55℃ ~ 200℃
3.RoHS compliant; UL approved
4.Good flexibility, arc resistance, corona resistance

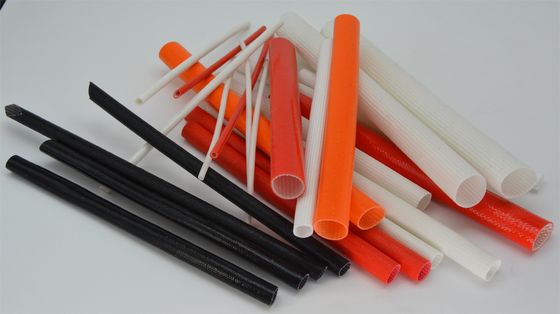

5.Color: White, Black, Blue, Green, Red, Yellow, Orange
6. Temperature Resistance: High
7. Insulation: Excellent
Technical Parameters:
| Parameter |
Value |
| Execution Standard |
UL1441 |
| Operating Temperature |
-55℃~200℃ |
| Cold Bending |
No cracks |
| Corona Resistance |
High |
| Temperature Resistance |
200℃±2℃*168h≥Half of the original voltage |
| Volume Resistivity |
≥10^11Ω.cm |
| Color |
White, Black, Blue, Green, Red, Yellow, Orange |
| Environmental Standards |
RoHS, REACH |
| Diameter |
1.0mm - 40.0mm |
|
Applications:

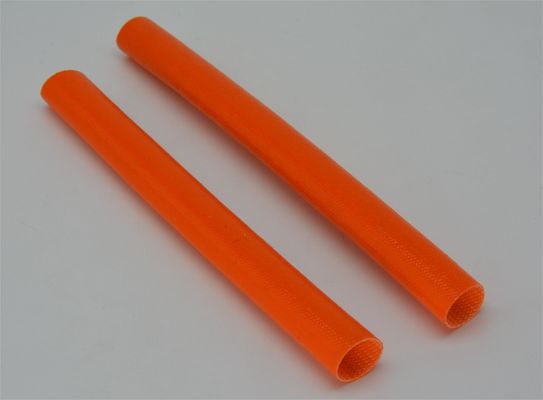

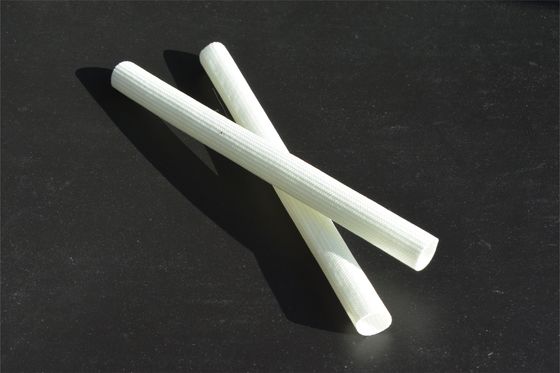

KORE KR-SF-1 Glass Fiber Tube
KORE KR-SF-1 Glass Fiber Tube is a high-quality fiberglass tube, The inner fiber and outer rubber glass fiber tube is made of alkali-free glass fiber yarn woven blank tube, and then coated with silica gel by high temperature treatment. It has high flexibility and comes in a variety of sizes from 1.0mm to 40.0mm, as well as various colors such as white, black, blue, green, red, yellow and orange. It offers excellent electrical insulation and flame retardation, as well as excellent abrasive resistance. It also has an operating temperature range of -55℃ to 200℃. It is mainly used in electronics, electrical appliances, automotive wiring harness, class H and class C motor, transformer, inverter, inductor, reactor, generator, heating lighting equipment and other field.
Customization:
KORE Glass Fiber Tube
The KORE Glass Fiber Tube is a high-quality, flexible fiberglass tubing that is suitable for a wide range of applications. It features a Brand Name of KORE, Model Number of KR-SF-1, and is made from glass fiber with silica gel coating. It has excellent electrical insulation and temperature resistance, with an operating temperature of -55℃ ~ 200℃.
The KORE Glass Fiber Tube is customizable in terms of length and diameter, with a range of 1.0mm - 40.0mm. It is produced in Jiangsu, China, and is perfect for use in a wide range of industries, including electrical, automotive, aerospace, and more.
For a reliable and durable glass fiber tube, choose KORE Glass Fiber Tube for your next project.
Support and Services:
Glass Fiber Tube Technical Support and Service
We provide technical support and service for our Glass Fiber Tube products. Our technical team is available to help with any questions or inquiries about the product. We are committed to providing a high-quality customer experience and can provide troubleshooting advice, installation assistance, and product recommendations.
Our customer service team is available to answer any questions and provide technical assistance. We are here to help you with any issues you may have with our products and can provide advice and recommendations on how to get the most out of your Glass Fiber Tube.
Dimensions
| Size |
Internal Diameter (mm) |
Average Wall Thickness (mm) |
Standard Package M/Spools |
| 1500V, 2500V |
4000V |
7000V |
| 0.5 |
0.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 1 |
1.0 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 1.5 |
1.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 2 |
2.0 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 2.5 |
2.5 ± 0.30 |
0.20 ± 0.10 |
0.40 ± 0.10 |
0.45 ± 0.10 |
200 |
| 3 |
3.0 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 3.5 |
3.5 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 4 |
4.0 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 4.5 |
4.5 ± 0.35 |
0.23 ± 0.10 |
0.47 ± 0.10 |
0.50 ± 0.10 |
100 |
| 5 |
5.0 ± 0.45 |
0.30 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 6 |
6.0 ± 0.45 |
0.30 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 7 |
7.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 8 |
8.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
100 |
| 9 |
9.0 ± 0.60 |
0.35 ± 0.10 |
0.50 ± 0.10 |
0.60 ± 0.10 |
50 |
| 10 |
10.0 ± 0.80 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 12 |
12.0 ± 0.80 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 13 |
13.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 14 |
14.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
50 |
| 18 |
18.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
25 |
| 20 |
20.0 ± 1.0 |
0.43 ± 0.10 |
0.55 ± 0.10 |
0.60 ± 0.10 |
25 |
| 25 |
25.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 30 |
30.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 35 |
35.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
| 40 |
40.0 ± 1.0 |
0.45 ± 0.10 |
0.60 ± 0.10 |
0.65 ± 0.10 |
25 |
Packing and Shipping:
Glass Fiber Tube Packaging and Shipping:
The glass fiber tube is packaged in a cardboard box that has been reinforced with bubble wrap and cushioning material for protection. This packaging helps to ensure that the product is not damaged during shipping. The box is then labeled with the customer's name, address, and order number. The box is then shipped via a reliable courier service.
Customization
Customized logo Customized packaging Graphic customization
MOQ: 100 MOQ: 100 MOQ: 100
For more customization details, message supplier
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
