Product Description:

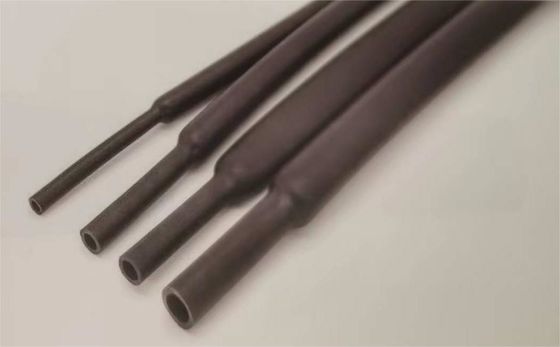

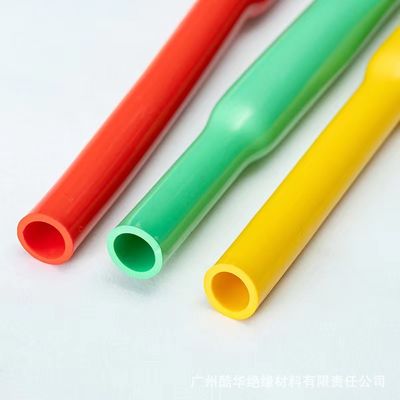

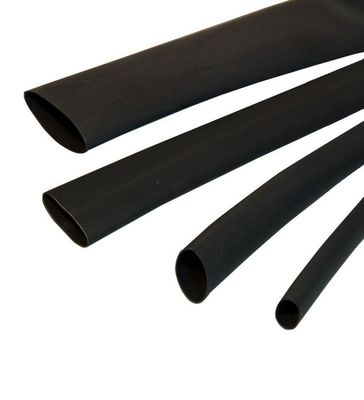

EPDM rubber is a new type of heat shrink product. After heating, the inner diameter of the casing rapidly shrinks, and the protected electronic components are tightly wrapped in the casing without being affected by the external environment. Compared with ordinary EPDM rubber pipe, this product has better physical and mechanical properties, higher voltage resistance and good wear resistance after irradiation crosslinking. The product is rubber, soft and elastic, better installation feel. Suitable for jacketing and protection to cables,pipes,and connectors.It is mainly used in electronic insulation, welding joint rust prevention and corrosion prevention, agricultural and household machinery protection, decoration and lighting and other electronic, automotive, consumer goods
Features:
- Shrink ratio 2:1
- Environmental friendly
- High temperature resistance : -45°C To +200°C . It can be used in an environment of 150°C for long-time use, and in an environment of 180-200°C or more for short-term or intermittent use
- Higher shrink ratio than heat shrinkable tubes
- Resists acids, alkalis, chemical solvent
- Standard Color: Black
- Resists ultraviolet light and weather aging
- Resists ozone
- Minimum shrink temperature: 100°C
- Full recovery temperature: 135°C
Applications:
Suitable for jacketing and protection to cables,pipes,and connectors.It is mainly used in electronic insulation, welding joint rust prevention and corrosion prevention, agricultural and household machinery protection, decoration and lighting and other electronic, automotive, consumer goods
Demensions:
| Size |
Expanded(mm) |
After Recovery (mm) |
Standard Package |
| mm |
Inner Diameter |
Inner Diameter |
Total Wall Thickness |
Spool Length Meter/spool |
| 6.0 |
6.5 |
3 |
0.80±0.10 |
50 |
| 8.0 |
8.5 |
4 |
0.90±0.10 |
50 |
| 10 |
10.0 |
5 |
1.20±0.10 |
50 |
| 12 |
12.0 |
6 |
1.20±0.10 |
20 |
| 16 |
16.0 |
8 |
1.50±0.15 |
20 |
| 20 |
20.0 |
10 |
1.50±0.15 |
20 |
| 30 |
30.0 |
15 |
1.80±0.15 |
20 |
| 40 |
40.0 |
20 |
2.00±0.15 |
20 |
| 50 |
50.0 |
25 |
2.00±0.20 |
10 |
| 60 |
60.0 |
30 |
2.00±0.30 |
10 |
| 70 |
70.0 |
35 |
2.00±0.30 |
10 |
Technical Date:
| Property |
Test Method |
Typical Performance |
| Tensile Strength(MPa) |
GB/T 528 |
≥14 |
| Elongation(%) |
GB/T 528 |
≥400 |
| Dieletric strength(kv/mm) |
ASTM D 149 |
≥12 |
| Volume resistivity(Ω.cm) |
ASTM D 257 |
≥2x1013 |
Packing and Shipping:
Packaging
Sleeve will be packaged in a sturdy and durable cardboard box to ensure safe delivery to our customers.
Shipping
we offer air and sea freight options. The shipping method will depend on the quantity and destination of the order. Air freight will take 5-7 business days, while sea freight may take up to 30 business days. The shipping cost will be calculated based on the weight and destination of the order.
Once the order is shipped, customers will receive a tracking number to monitor the status of their package. We strive to provide accurate and timely delivery, but please note that unforeseen circumstances such as weather or customs delays may affect the delivery time.
If you encounter any issues with your order, please contact our customer service team and we will do our best to resolve the problem.
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
