Product Description:

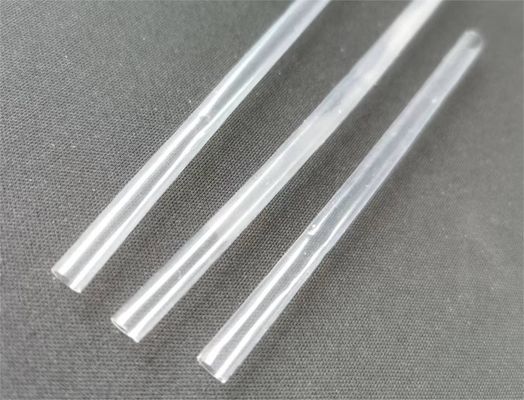

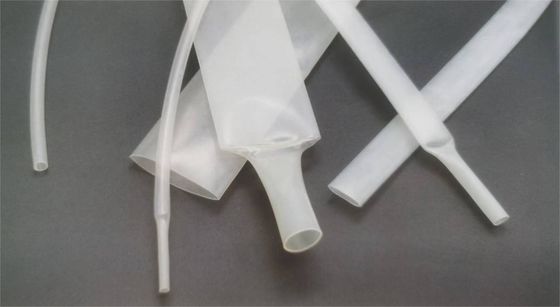

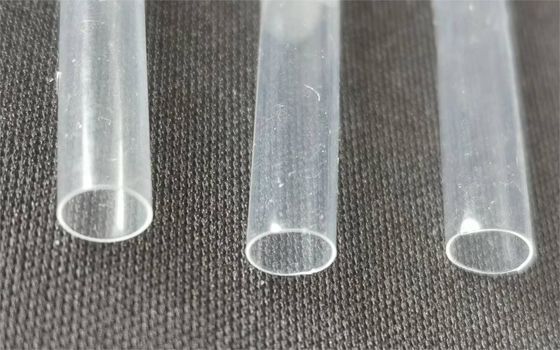

Semi-rigid polyvinylidene fluoride (PVDF) is a thin-walled heat shrinkable tube made by radiation modification of PVDF. It has the advantages of transparency, flame retardant, high temperature resistance, resistance to most oils and chemicals, wear resistance and cutting resistance. It is widely used to protect welding points, terminals and connection cables from the corrosion of high temperatures, industrial fuels, solvents and chemical agents.
Features:
- 2:1 shrink ratio
- Long term resistance to diesel, hydraulic fluids and chemicals
- Flame Retardant
- Semi-rigid
- Strong abrasion and cut resistance
- Continuous operating temperature: -55℃ to 175℃
- Fully shrink temperature: 175℃
- SAE-ASM-DTL-23053/18
- Transparent
Applications:
Transparent , thin wall PVDF (polyvinylidene fluoride) heat shrink tubing ideal for electronic, automotive and military applications requiring protection and see-through inspection in aggressive environments.
Dimensions:
| Size |
Expanded |
Recovered |
Standard Package M/Spool |
Round/Flat |
| Inch |
mm |
Internal Diameter (mm) |
Internal Diameter (mm) |
Wall Thickness (mm) |
| 3/64 |
1.2 |
1.2 |
0.6 |
0.25±0.05 |
200 |
Round |
| 1/16 |
1.6 |
1.6 |
0.8 |
0.25±0.05 |
200 |
Round |
| 3/32 |
2.4 |
2.4 |
1.2 |
0.25±0.05 |
200 |
Round |
| 1/8 |
3.2 |
3.2 |
1.6 |
0.25±0.05 |
200 |
Round |
| 3/16 |
4.8 |
4.8 |
2.4 |
0.25±0.05 |
100 |
Round |
| 1/4 |
6.4 |
6.4 |
3.2 |
0.30±0.05?? |
100 |
Round |
| 3/8 |
9.5 |
9.5 |
4.8 |
0.30±0.05 |
50 |
Round |
| 1/2 |
12.7 |
12.7 |
6.4 |
0.30±0.05 |
50 |
Round |
| 3/4 |
19.1 |
19.1 |
9.5 |
0.42±0.05 |
50 |
Round |
| 1 |
25.4 |
25.4 |
12.7 |
0.50±0.05 |
50 |
Round |
| 1-1/2 |
38.1 |
38.1 |
19.1 |
0.50±0.05 |
50 |
Round |
| |
|
|
|
|
|
|
Note: 3:1 shrink ratio is available upon request
Technical Data:
| Property |
Test Method |
Typical Performance |
| Tensile Strength(MPa) |
ASTM D 2671 |
≥30 |
| Elongation(%) |
ASTM D 2671 |
≥150 |
| Tensile |
250℃X168hr |
≥100 |
| Cold Bend |
No cracking |
≥220 |
| Flammability |
ASTM D 2671 |
VW-1 |
| Volume resistivity(Ω.cm) |
IEC 60093 |
≥10^14 |
Shipping:
Depending on the customer's location, we offer various shipping options to choose from, including air, sea, and land transportation. Our team carefully monitors the shipping process to ensure that our products are delivered on time and in excellent condition.
For international orders, we take necessary steps to comply with customs and import regulations to avoid any delays or additional charges for our customers. We also provide tracking information for our customers to keep them updated on the delivery status of their order.
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
