RSFR-TFE Heat Shrink Tubing RoHS Inflammability VW-1

Large Image : RSFR-TFE Heat Shrink Tubing RoHS Inflammability VW-1

Product Details:

Place of Origin:	JIANGSU,CHINA
Brand Name:	WOER
Certification:	ISO9001
Model Number:	RSFR-TFE

Payment & Shipping Terms:

Minimum Order Quantity:	1 meter
Price:	USD 0.1/m
Packaging Details:	Carton
Delivery Time:	1-7days
Payment Terms:	T/T
Supply Ability:	50000 Meters Per Day

Contact Now

RSFR-TFE Heat Shrink Tubing RoHS Inflammability VW-1

Description

Shrink Ratio:	1.7:1	Shrinkage Temperature:	≥350℃
Operating Temperature:	-65℃～200℃	Tensile Strength:	19MPa
Elongation Ratio:	≥200%	High Performance For Anti-corrosion:	Anti-acid/alkali/chemical/oil
Inflammability:	VW-1	High Voltage ResistantDisruptive Strength:	Yes
Standard Color:	Clear	Volume Resistivity:	≥10^16 Ω·cm
Disruptive Strength:	26 Kv/mm	Cold Impact:	No Cracking At -65℃
Highlight:	VW-1 Heat Shrink Tubing , RoHS Inflammability Heat Shrink Tubing , Heat Shrink Tubing

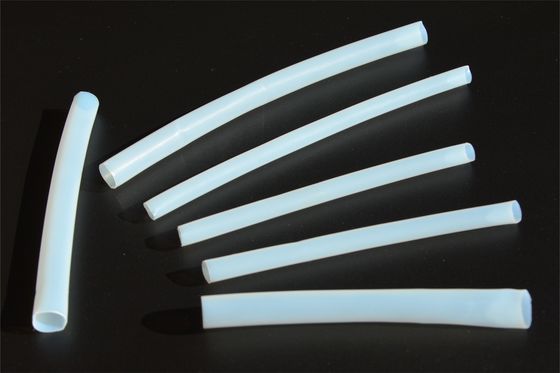

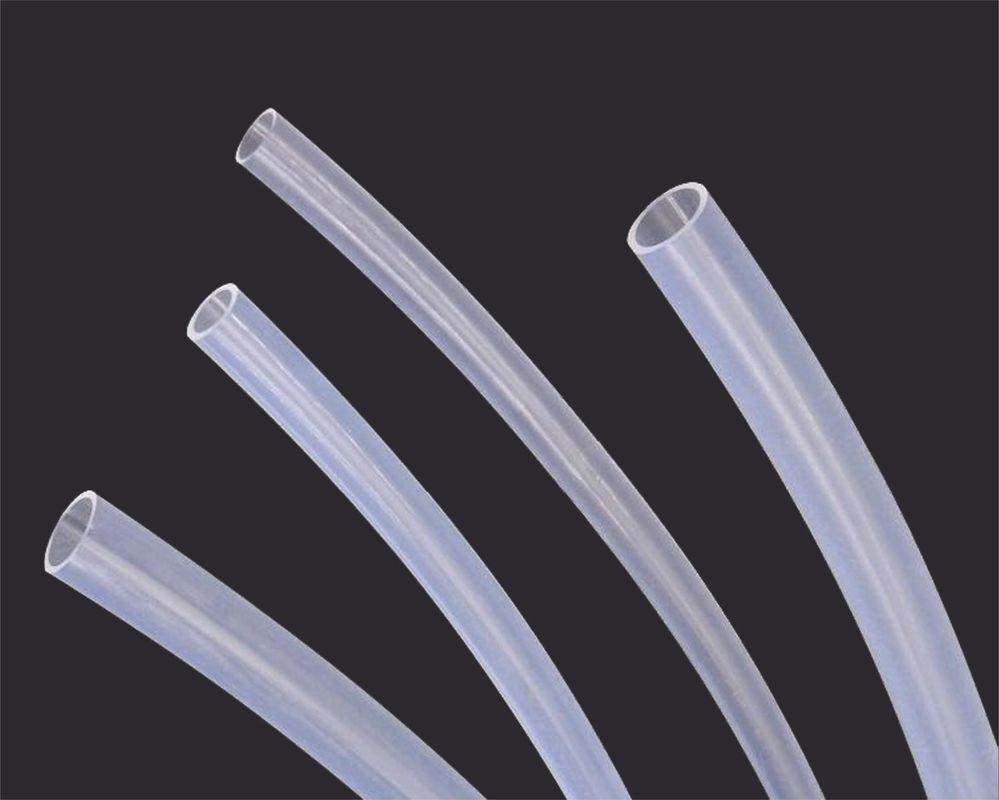

RSFR-TFE Heat Shrink Tubing RoHS Inflammability VW-1

Product Description

RSFR-TFE Heat shrink tubing can be widely used in science & technology field, such as chemistry, mechanical industries, astronautic industry, vehicles, transformers, communications. It has the advantages of high temperature resistance, high pressure resistance, corrosion resistance, wear resistance and good mechanical strength.

Features

1.Shrinkage Ratio: 1.7:1

2.Operating temperature:-65℃ ~ +200℃

3.RoHS compliant: UL approved

4.Shrinkage Temperature: ≥+350℃

5.Strong corrosion resistance, High temperature resistance, High flame retardant

6.Standard color: Clear

Applications

The professional chemical resistant high temperature resistant PTFE sleeve finds applications in various industries, including chemical processing, oil and gas, automotive, and aerospace. It is commonly used for wire harnesses, cables, and hoses that require protection against chemicals, high temperatures, and harsh environments.

Dimensions

Size (mm)	Expanded (mm)	Recovered (mm)		Standard Packing Meter/spool	Round/Flat
Size (mm)	Inner Diameter	Inner Diameter	Wall Thickness	Standard Packing Meter/spool	Round/Flat
1.0	1.0±0.2	≤0.6	0.20±0.05	200	Round
1.5	1.5±0.2	≤0.9	0.20±0.05	200	Round
2.0	2.0±0.2	≤1.3	0.20±0.05	200	Round
2.5	2.5±0.2	≤1.5	0.20±0.05	200	Round
3.0	3.0±0.2	≤1.8	0.20±0.05	200	Round
3.5	3.5±0.2	≤2.0	0.20±0.05	100	Round
4.0	4.0±0.3	≤2.5	0.25±0.05	100	Round
4.5	4.5±0.3	≤2.8	0.25±0.05	100	Round
5.0	5.0±0.3	≤3.0	0.25±0.05	100	Round
6.0	6.0±0.3	≤3.8	0.25±0.05	100	Round
7.0	7.0±0.3	≤4.0	0.25±0.05	100	Round
8.0	8.0±0.3	≤4.8	0.30±0.05	1	Flat
9.0	9.0±0.3	≤5.0	0.30±0.05	1	Flat
10.0	10±0.3	≤5.8	0.30±0.05	1	Flat
11.0	11±0.3	≤6.4	0.30±0.05	1	Flat
12.0	12±0.3	≤7.0	0.30±0.05	1	Flat
13.0	13±0.3	≤7.5	0.35±0.05	1	Flat
14.0	14±0.3	≤8.0	0.35±0.05	1	Flat
15.0	15±0.3	≤8.5	0.40±0.05	1	Flat
16.0	16±0.3	≤9.0	0.40±0.05	1	Flat

Technical Data

Property	Method Test	Typical Performance
Tensile Strength(MPa)	ASTMD 2671	19
Elongation(%)	ASTMD 2671	200
Cold impact(-65℃)	ASTMD 2671 Method C	No cracking
Flammablity	ASTMD 2671	VW-1
Dielectric strength(kV/mm)	VDE 0303 Part2	26
Volume resistivity(Ω.cm)	VDE 0303 Part2	1.0X10^14

Packaging and delivery

Packaging Details: According to the tubing's size
Packing size: 46cmx46cmx45cm

Port: Any ports of China

Customization

Customized logo Customized packaging Graphic customization

MOQ: 100 MOQ: 100 MOQ: 100

For more customization details, message supplier

FAQ

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
