RSFR-DR Diesel Resistant Flexible Elastomeric Heat Shrink Tubing

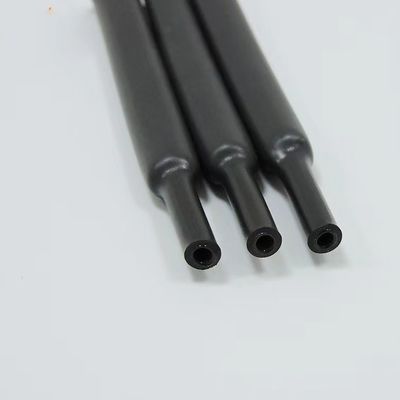

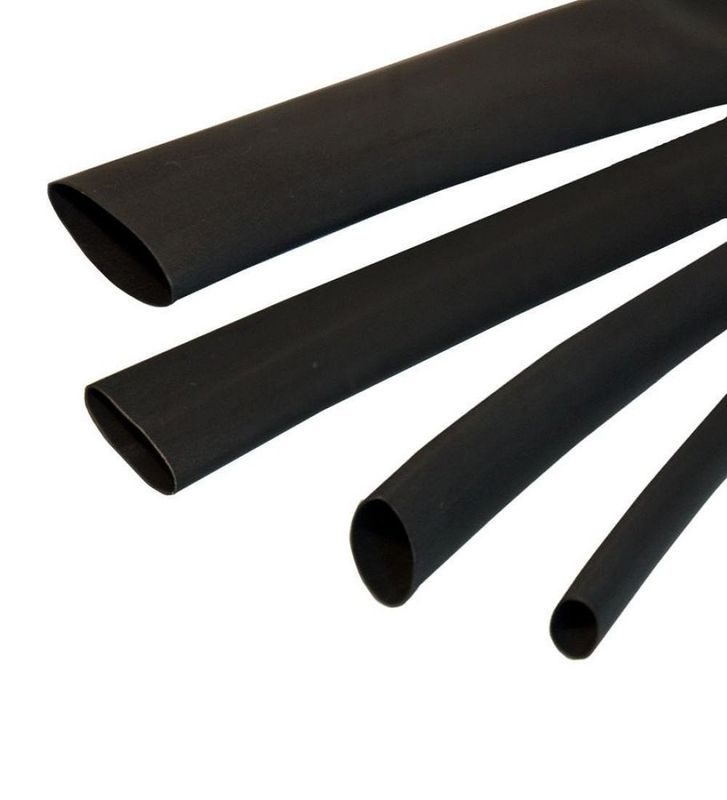

Large Image : RSFR-DR Diesel Resistant Flexible Elastomeric Heat Shrink Tubing

Product Details:

Place of Origin:	JIANGSU,CHINA
Brand Name:	KORE
Certification:	ISO9001
Model Number:	RSFR-DR

Payment & Shipping Terms:

Minimum Order Quantity:	1 meter
Price:	USD 0.1/m
Packaging Details:	Carton
Delivery Time:	1-7days
Payment Terms:	T/T
Supply Ability:	50000 Meters Per Day

Contact Now

RSFR-DR Diesel Resistant Flexible Elastomeric Heat Shrink Tubing

Description

Shrink Ratio:	2:1	Fully Shrink Temperature:	130℃
Operating Temperature:	-75℃～150℃	Tensile Strength:	11.5MPa
Elongation Ratio:	≥350%	Long Term Resistanc To:	Diesel, Hydraulic Fluids And Chemicals
Inflammability:	VW-1	Strong Abrasion And Cut Resistance:	Yes
Standard Color:	Black	Dieletric Strength:	15 Kv/mm
Highlight:	Flexible Heat Shrink Tubing , Elastomeric Heat Shrink Tubing , Diesel Resistant Heat Shrink Tubing

RSFR-DR Diesel Resistant Flexible Elastomeric Heat Shrink Tubing

Product Description

RSFR-DR Diesel Resistant Flexible Elastomeric Heat Shrink Tubing can be used at high temperature for a long time, resistant to diesel, jet fuel, high temperature fluid. It can be used for the protection of military vehicles, high-speed rail vehicles, Marine equipment or commercial cable terminals, separation joints, etc

Features

1.Shrinkage Ratio: 2:1

2.Operating temperature:-75℃ ~ +150℃

3.RoHS compliant: UL approved

4.Shrinkage Temperature: 110℃ ~ 220℃

5.Strong Diesel resistance, High temperature resistance, Low temperature resistance, High flame retardant

6.Standard color: Black

Applications

Diesel resistant elastomeric heat shrink tubing for protecting cables, wire harness and brake lines in transportation and military applications where resistance to diesel, oil, hydraulic fluids and other chemicals is critical

Dimensions

Size		Expanded	Recovered		Standard Package	Round/Flat
Inch	mm	Internal Diameter (mm)	Internal Diameter (mm)	Wall Thickness (mm)	Standard Package	Round/Flat
1/8	3.2	3.2	1.6	0.76±0.15	200m/spool	Round
3/16	4.8	4.8	2.4	0.84±0.15	100m/spool	Round
1/4	6.4	6.4	3.2	0.89±0.15?	100m/spool	Round
3/8	9.5	9.5	4.8	1.02±0.20	50m/spool	Round
1/2	12.7	12.7	6.4	1.22±0.20	25m/spool	Round
3/4	19.0	19.0	9.5	1.45±0.28	25m/spool	Round
1	25.4	25.4	12.7	1.78±0.28	25m/spool	Round
1-1/2	38.1	38.1	19.0	2.41±0.41	25m/spool	Round
2	50.8	50.8	25.4	2.79±0.41	25m/spool	Round
3	76.0	76.0	38.0	3.18±0.50	1.00m/pc	Flat

Note: 3:1 shrink ratio is available upon request

Technical Data

Property	Test Method	Standard	Typical Performance
Tensile Strength(MPa)	ASTM D2671	≥10.4	11.5
Tensile Strength(MPa)	ASTM D2671	≥250	350
Tensile Strength after aging (MPa)	150℃X168hr	≥8.0	8.5
Elongation after aging(%)	150℃X168hr	≥200	300
Dieletric strength(kV/mm)	IEC 60243	≥11.9	15
Flammability	ASTM D2671 B	Pass	Pass

Packaging and delivery

Packaging Details: According to the tubing's size
Packing size: 46cmx46cmx45cm

Port: Any ports of China

Customization

Customized logo Customized packaging Graphic customization

MOQ: 100 MOQ: 100 MOQ: 100

For more customization details, message supplier

FAQ

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
