High Shrink Ratio, Semi Rigid Dual Wall Adhesive Lined Heat Shrink Polyolefin Tubing

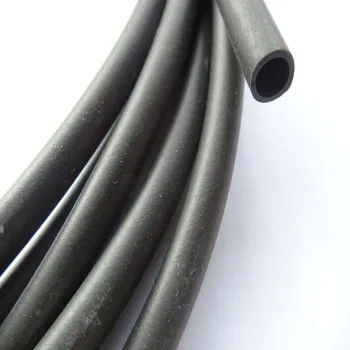

Large Image : High Shrink Ratio, Semi Rigid Dual Wall Adhesive Lined Heat Shrink Polyolefin Tubing

Product Details:

Place of Origin:	JIANGSU,CHINA
Brand Name:	KORE
Certification:	ISO9001
Model Number:	SBRS-(4X)GR

Payment & Shipping Terms:

Minimum Order Quantity:	1 meter
Price:	USD 0.1/m
Packaging Details:	Carton
Delivery Time:	1-7days
Payment Terms:	T/T
Supply Ability:	50000 Meters Per Day

Contact Now

High Shrink Ratio, Semi Rigid Dual Wall Adhesive Lined Heat Shrink Polyolefin Tubing

Description

Shrink Ratio:	4:1	Fully Shrink Temperature:	125℃
Operating Temperature:	-45℃～125℃	Tensile Strength:	10.4MPa
Elongation Ratio:	≥300%	Flame Retardant:	Yes
Standard Color:	Black	RoHS Compliant:	Yes
Highlight:	Adhesive Lined Heat Shrink Polyolefin Tubing , Semi Rigid Heatshrink Polyolefin Tubing , Dual Wall Heatshrink Polyolefin Tubing

High Shrink Ratio, Semi-rigid Dual Wall Adhesive-Lined Heat Shrink Polyolefin Tubing

Product Description

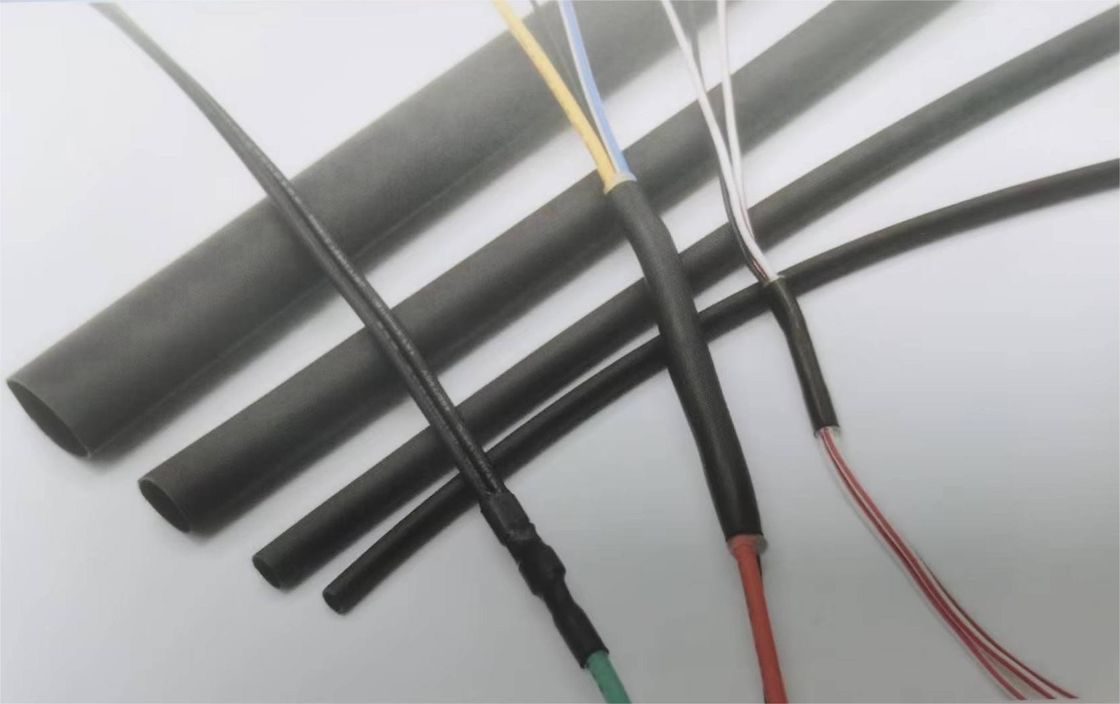

Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.

Features

1.Shrinkage Ratio: 4:1

2.Continuous operating temperature:-45℃ ~ +125℃

3.RoHS compliant: UL approved

4.Fully shrinkage temperature: ≥125℃

5.Flame retardant

6.Superior sealing against water,moisture or other contaminants

7.Standard color: Black ( other color can be customized)

Applications

Widely used in all kinds of wire, wire harness bee insulation and trapping fixed; Waterproof and moisture-proof of Marine wire and cable; Sealing and corrosion protection of metal pipes

Dimensions

Size		Expanded(mm)	After Recovery(mm)			Standard Package
Inch	mm	Internal Diameter	Internal Diameter	Total Wall Thickness	Adhesive Thickness	Spool Length M/spool
2/13	4	4	0.95	1.40±0.30	0.60±0.20	200
1/4	6	6	1.27	1.70±0.30	0.80±0.20	100
5/16	8	8	1.65	2.00±0.30	0.95±0.20	100
3/8	10	10	2	2.30±0.40	1.10±0.20	1.22 OR 25M/Roll
1/2	12	12	2.41	2.45±0.40	1.20±0.20	1.22 OR 25M/Roll
3/4	18	18	4.45	2.60±0.40	1.34±0.30	1.22 OR 25M/Roll

Technical Data

Property	Test Method	Standard
Tensile Strength(MPa)	ASTM D2671	≥10.4
Elongation(%)	ASTM D2671	≥300
Tensile Strength after aging (MPa)	UL224 158℃X168hr	≥7.3
Elongation after aging(%)	UL224 158℃X168hr	≥200
Dieletric strength(kV/mm)	IEC 60243	≥15
Volume resistivity(Ω.cm)	IEC 60093	≥1×10^14

Hot Melt Adhesive Property

Property	Test Method	Standard
Water Absorption	ASTM D570	<0.2%
Sofening Point(℃)	ASTM E28	90±5
Strength of pearing(PE)	ASTM D 1000	120N/25mm
Strength of pearing(AL)	ASTM D 1000	80N/25mm

Packaging and delivery

Packaging Details: According to the tubing's size
Packing size: 46cmx46cmx45cm

Port: Any ports of China

Customization

Customized logo Customized packaging Graphic customization

MOQ: 100 MOQ: 100 MOQ: 100

For more customization details, message supplier

FAQ

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
