Environmentally Friendly Flame Retardant V-0 Dual Wall Tubing

Large Image : Environmentally Friendly Flame Retardant V-0 Dual Wall Tubing

Product Details:

Place of Origin:	JIANGSU,CHINA
Brand Name:	KORE
Certification:	ISO9001
Model Number:	KR-SBRS-(3X)GFV

Payment & Shipping Terms:

Minimum Order Quantity:	1 meter
Price:	USD 0.1/m
Packaging Details:	Carton
Delivery Time:	1-7days
Payment Terms:	T/T
Supply Ability:	50000 Meters Per Day

Contact Now

Environmentally Friendly Flame Retardant V-0 Dual Wall Tubing

Description

Shrink Ratio:	3:1	Fully Shrink Temperature:	125℃
Operating Temperature:	-45℃～125℃	Tensile Strength:	10.4MPa
Elongation Ratio:	≥200%	Flame Retardant:	Yes
Volume Resistivity( Ω.cm):	≥ 1X10^14	RoHS Compliant:	Yes
Highlight:	Environmentally Friendly Dual Wall Tubing , V-0 Dual Wall Tubing , Flame Retardant Dual Wall Tubing

Environmentally Friendly Flame Retardant V-0 Dual Wall Tubing

Product Description

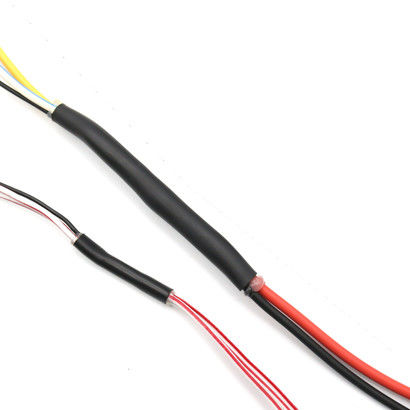

It's composed of high flame retardant polyolefin and hot melt adhesive double layer. The outer polyolefin is an insulating and flame retardant material, and the inner layer of hot melt adhesive can buffer mechanical strain and has strong sealing property. The main function is sealing waterproof, anti-corrosion, leakproof, multi-strand wire harness and insulation, widely used in all kinds of wire harness, Marine wire and cable and metal pipe need to seal waterproof, moisture-proof, anti-corrosion sealing insulation, binding fixed and other fields.

Features

● Meets AMS-DTL-23053/4;QC/T 29106;GB/t 2408

● Minimum shrink temperature:90℃[194℉]

● Continuous operating temperature:-45℃to125℃[113℉to257℉]

● Standard color: black

Applications

Widely used in all kinds of wire harness, Marine wire and cable and metal pipe need to seal waterproof, moisture-proof, anti-corrosion sealing insulation, binding fixed and other fields.

Dimensions

Environmentally Friendly Flame Retardant V-0 Dual Wall Tubing 0

Technical Data

Environmentally Friendly Flame Retardant V-0 Dual Wall Tubing 1

Hot Melt Adhesive Property

Property	Test Method	Standard
Water Absorption	ASTM D570	<0.2%
Sofening Point(℃)	ASTM E28	95±5
Strength of pearing(PE)	ASTM D 1000	120N/25mm
Strength of pearing(AL)	ASTM D 1000	80N/25mm

Packaging and delivery

Packaging Details: According to the tubing's size
Packing size: 46cmx46cmx45cm

Port: Any ports of China

Customization

Customized logo Customized packaging Graphic customization

MOQ: 100 MOQ: 100 MOQ: 100

For more customization details, message supplier

FAQ

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
