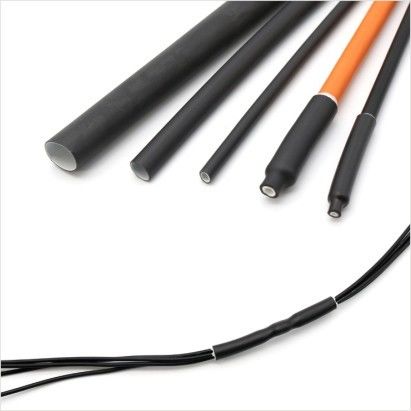

Highly Flame Retardant Dual Wall Polyolefin Heat Shrink Tubing

Large Image : Highly Flame Retardant Dual Wall Polyolefin Heat Shrink Tubing

Product Details:

Place of Origin:	JIANGSU,CHINA
Brand Name:	LONG
Certification:	ISO9001
Model Number:	SBRS-(4X)GRF
Document:	H sleeve tube price list.xlsx

Payment & Shipping Terms:

Minimum Order Quantity:	1 meter
Price:	USD 0.1/m
Packaging Details:	Carton
Delivery Time:	1-7days
Payment Terms:	T/T
Supply Ability:	50000 Meters Per Day

Contact Now

Highly Flame Retardant Dual Wall Polyolefin Heat Shrink Tubing

Description

Shrink Ratio:	4:1	Fully Shrink Temperature:	125℃
Operating Temperature:	-45℃～125℃	Tensile Strength:	10.4MPa
Elongation Ratio:	≥300%	Flame Retardant:	Yes
Volume Resistivity( Ω.cm):	≥ 1X10^14	RoHS Compliant:	Yes
Highlight:	Flame Retardant Heat Shrink Tubing , Dual Wall Polyolefin Heat Shrink Tubing

Highly Flame Retardant Dual Wall Polyolefin Heat Shrink Tubing

Product Description

It consists of a double layer of cross-linked polyolefin and EVA. Highly flame retardant, semi-rigid, cross-linked dual wall heat shrink tubing designed for splice sealing and fuse link protection.

Features

● 4:1 shrink ratio to cover varying splice configurations and substrate profiles

● Jacket and adhesive are exceptionally flame retardant

● Economical way to environmentally seal and protect automotive fuse-links, splice and terminals

● Highly resistance to common automotive fluids and solvents

● Semi-rigid and mechanically tough outer jacket provides added strain relief and excellent

abrasion protection

● Thick adhesive liner forms an effective barrier against fluids and moisture penetration

● Continuous operating temperature:-45℃-125℃

● Fully shrink Temperature:≥125℃

Dimensions

Highly Flame Retardant Dual Wall Polyolefin Heat Shrink Tubing 0

Technical Data

Hot Melt Adhesive Property

Packaging and delivery

Packaging Details: According to the tubing's size
Packing size: 46cmx46cmx45cm

Port: Any ports of China

Customization

Customized logo Customized packaging Graphic customization

MOQ: 100 MOQ: 100 MOQ: 100

For more customization details, message supplier

FAQ

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
